NB! Strømforsyning ikke inkludert. Se tilbehør for kompatibel vare
This single output microphone/line hub is designed to accept audio from a preamp wallplate (A 4931) or box (A 4932).
Accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4928 hub. Wallplate microphone input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output.

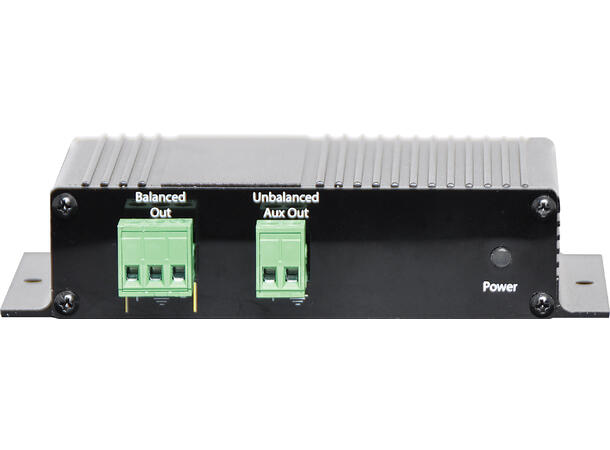

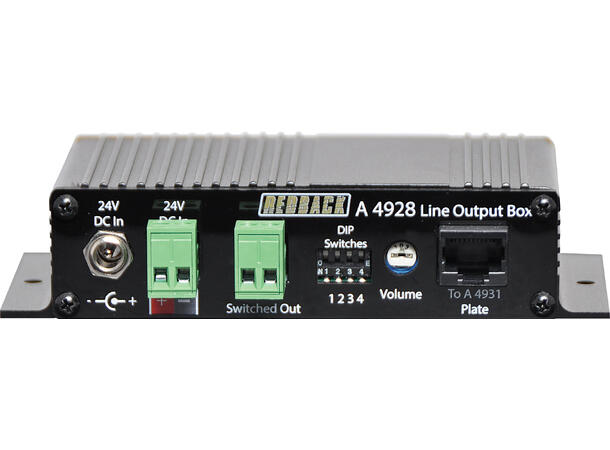

The A 4928 hub has a dedicated balanced or unbalanced output, with volume control. Output has DIP switch selectable balanced mic/line, or unbalanced line level output which can be fed directly into amplifiers. Powered by 24V DC from the supplied plugpack.
Features
Connects to A 4931 Microphone/Line Pre-Amplifer Zone Wallplate or A 4932 Zone Preamp Box.
Easy Cat5e/6 UTP data cabling connection.
Up to 300m cable runs out to wallplate/box.
Balanced Euro terminal block connections.
Balanced mic or line level operation.
24V DC operation.
Australian designed & assembled.
Specifications
Input Mic Level Sensitivity: 3mV
Input Line Level Sensitivity: 1V
Music Input Level Sensitivity: 500mV
Output Connector: RJ45 8P8C
*Specifications are subject to change without notice.
