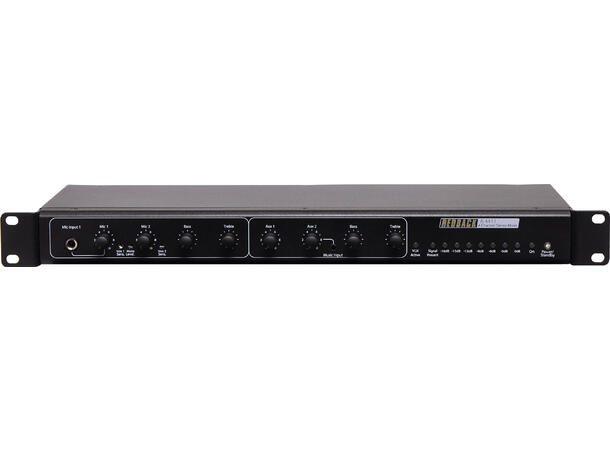

This 4 Channel Stereo Mixer has been designed to meet the growing demands of PA systems utilising high power stereo amplifiers, it features 2 balanced microphone and 2 auxiliary inputs.
Perfect for aerobics use, bars, bistros, sporting clubs. Two sets of tone controls are provided; one for the microphone inputs and one for the auxiliary inputs. Master volume is provided on the rear panel.

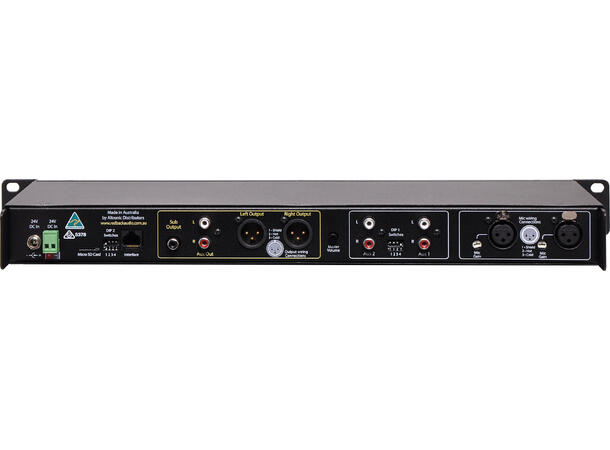

Inputs: Each microphone input incorporates a 3 pin balanced XLR socket on the rear panel with 15V DC phantom powering. An additional 6.35mm socket is provided on the front panel for input 1. Auxiliary inputs are stereo and use dual RCA sockets. A 3.5mm stereo jack socket (Music Input) is also provided for auxiliary input 1 on the front panel, suitable for the output of an MP3 player or similar.
Outputs: RCA sockets are provided for left and right line level and 3 pin XLR sockets for left and right 600O balanced outputs. Variable mute adjustment is provided for the microphones. This enables the microphone inputs to partially or fully mute the auxiliary inputs as desired.
Box Contents:
A 4411 Four Channel Stereo Mixer
24V 1A DC Plugpack
Instruction Booklet
Features
2 microphone inputs
Phantom power on MIc inputs (15V DC)
2 line inputs
Separate tone controls for line and microphones
Stereo outputs
1RU 19” rack mount case
Master volume on rear panel
Adjustable line muting
Front panel mount microphone and line input
Subwoofer output
LED VU meter
VOX active indicator
Signal Present indicator
24V DC input
24V DC battery back up terminals
10 Year Warranty
Australian designed & assembled
Specifications
Inputs: 2 x Mic balanced 600O, 2 x Line Stereo 10KO
Outputs(stereo): 600O balanced 0dBm
Distortion
Mic inputs: less than 0.3%
Line inputs: less than 0.3%
Frequency Response
Mic: 30Hz-15kHz
Line: 20Hz-30kHz
S/N ratio: -78dB
Sensitivity: Mic 1.5mV, line 400mV
Phantom power: Nominal 12V DC
Output connectors: 3 pin XLR balanced Stereo RCA
Input Connectors
Mic: 3 pin XLR balanced rear panel, 6.35mm jack balanced front panel
Line inputs: RCA stereo rear panel, 3.5mm stereo jack front panel
Controls
Mic inputs: Volume
Line inputs: Volume
Bass: ±12dB @ 100Hz
Treble: ±12dB @ 10kHz
Master Volume: On rear panel
VOX sensitivity: On rear panel
Mute level Aux 1 & 2: On rear panel
Indicators: Power on LED
Protection: 0.5A fuse
Indicators: Power on, VOX active, Signal Present, VU Meter
Power Supply: 24V DC
Dimensions: 482W x 152D x 44H mm
Weight: 2.2kg
