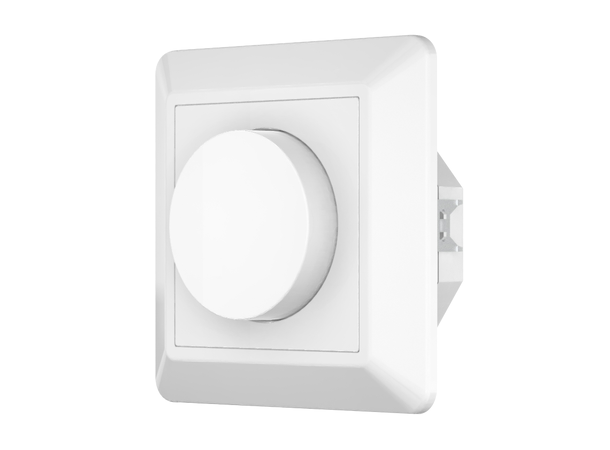

ZigBee knob smart dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
• Supports resistive loads, capacitive loads or inductive loads
• Enables to set minimum brightness and startup brightness
• 1 channel output, up to 500W
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can be controlled by zigbee gateway, zigbee remote and local rotary knob
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• With push switch input, can be controlled by universal AC push switches
• Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
For øvrige tekniske spesifikasjoner se datablad under "Lenker & Dokumenter"
