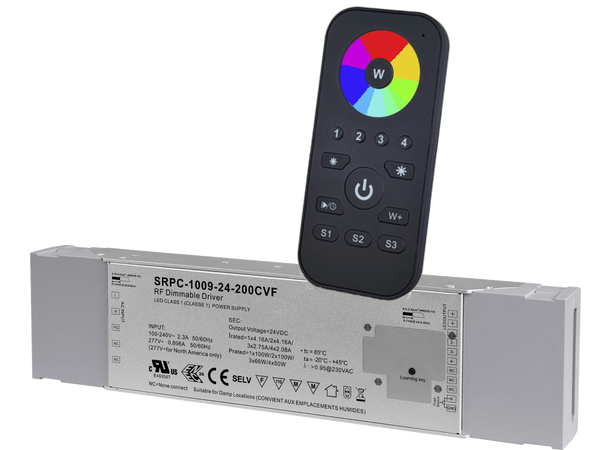

SRP-1009-24-200CVF is an UL and ENEC approved 200W dimmable PWM RGB LED driver with 4 channels 24VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. The driver can control single color, tunable white, RGB/RGBW LED lighting. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
- Dimmable 24V PWM RGB LED Driver, Max. output power 200W
- UL and ENEC certification
- 100-277VAC universal input
- 4 channels 24VDC constant voltage output
- Class ? power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%
- RF control interface and can be compatible with a variety of SR-1009 series RF remotes
- Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
- To control constant voltage single color, tunable white, RGB/RGBW LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
- Radio frequency available: 869.5/434/916.5MHz
The LED controller SR-2819S is a remote RGBW controller with ultra sensitive glass touch color wheel to adjust color tone fast and accurately. Each controller can control up to 4 zones separately or synchronously with endless receivers in each zone. There are 10 built-in changing patterns with pause function when played. Scene saving function is available when you do not like the built-in ones, and 3 scenes can be saved for each zone. The LED RGBW controller can achieve millions of colors due to the independent brightness adjustment of each R, G, B, W channel. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
- User-friendly interface, easy and simple operation
- Operation return function
- Control up to 4 zones, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes
- Set 3 scenes for each zone
- Operation return function on this Remote RF LED remote
- Preset 10 changing modes, with pause function
- Synchronization function of pattern changes ensure consistent change forever
- Receivers can work with RF-WIFI converter after installing software on IOS and Android system
- Enable to dim brightness of each R, G, B, W channel, in order to mix millions colors
