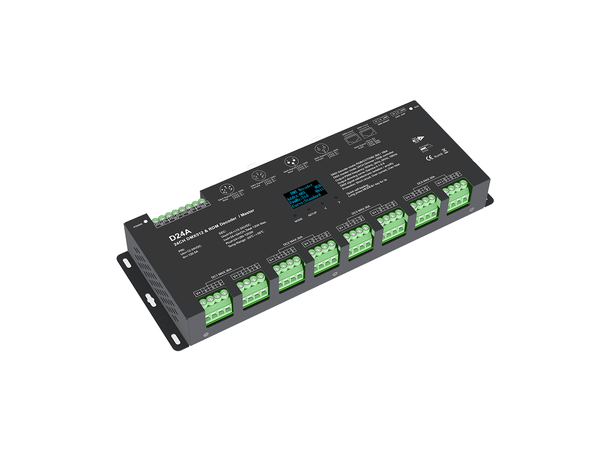

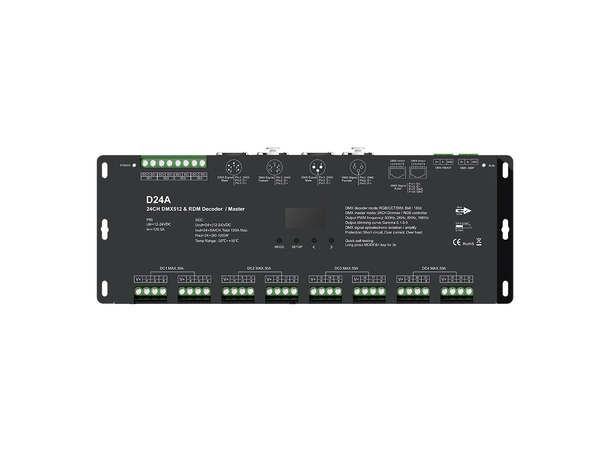

SBL DMX LED Driver CV 24ch

Input 5-24V, Out 24 x 3A, DMX-512, RDM

Varenr: 179431

Alt. varenr: D24A DMX-PWM CV

2 284,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

DMX driver for led strip 5 - 24V. 24 x 3A

24 channels constant voltage output, Max. 5A current per channel, up to 2880W output power.
Master & decoder mode, RDM function.
Easy operation with OLED display and 4 buttons.
DIM/CCT/RGB decoding mode selectable.
PWM frequency 500/2000/8000/16000Hz selectable.
16bit (65536 levels) /8bit (256 levels) grey level selectable.
Output dimming curve gamma value 0.1-9.9 selectable.
Stand-alone RGB mode and 24 channel dimmer mode selectable, work as DMX master(8 bit) to control her decoders.
Built-in 10 RGB programs, speed and brightness adjustable.
Comply with the DMX512 standard protocols.
DMX signal optoelectronic isolation / amplify.
Over-heat / Over-load / Short circuit protection, recover automatically.
With fast self-testing function.
