SOMMER Matrix MMC16 Multikabel FRNC, mørk blå | 2 x 0,25 mm², 16 par SOMMER Matrix MMC16 Multikabel FRNC, mørk blå | 2 x 0,25 mm², 16 par

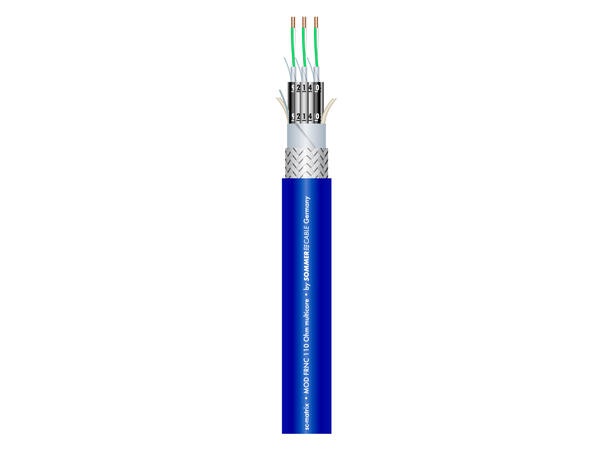

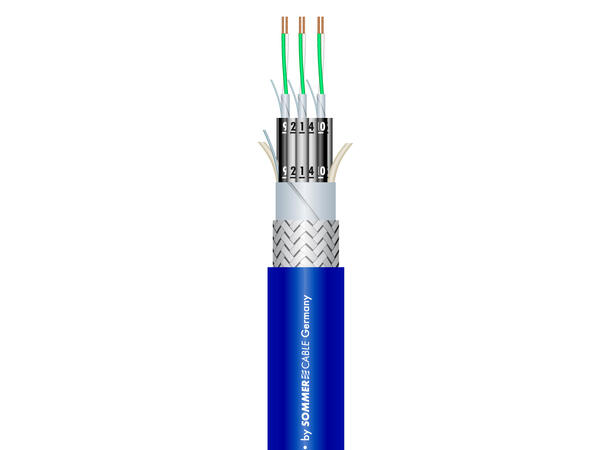

SOMMER Matrix MMC16 Multikabel

FRNC, mørk blå | 2 x 0,25 mm², 16 par

Varenr: 141247
Alt. varenr: 100-0302-16
388,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Antall par
2
2
4
4
8
8
12
12
16
16
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Blessed be the fire’s might...

if tamed by man at day and night. Tamed are the flames if they extinguish themselves during a fire and no hazardous gases are set free. This is ensured by a special jacket and a clever interior construction, built according to the FRNC guideline for halogen-free and flame-retardant cables. It’s obligatory for any installations in public buildings.
The SC-Matrix MMC is a digital multipair or modulation cable resp. which owing to its large wire cross-section of 0,25 mm² is also suitable for installation across distances exceeding 130 m. Due to its pairwise AL/PT foil screen and the overall screen consisting of a copper mesh plus AL/PT foil, the SC-Matrix MMC offers an excellent protection against interferences.

This cable is not suitable for mobile applications!


Advantages:

  • Halogen-free and flame-retardant according to test type C (IEC60332-1 + 60332-3)
  • Available from stock in more than 9 different lengths
  • Suitable for long distances due to the large wire cross-section of
  • Digital-capable due to the ohms wave impedance
  • For better identification the wire pairs are numbered and colour-coded

Application:

  • To be used as an audio, modulation and AES/EBU cable
  • Permanent installation in public buildings such as schools, theatres and discos
  • Installation in broadcasting studios for connecting sound systems
  • Underground installation


Specifications:

Article number100-0302-16
NameSC-Matrix MMC16
EAN4049371000833
Construction16(2LI2Y0,25mm²)DHCH
Jacket Ø mm21,50
Number of Channels (audio)16
Inner conductor Ø (audio) mm0,56
Weight per 1 m g540
Fire load per m kWh0,9
Width mm21,5
Height mm21,5
Article number100-0302
NameSC-Matrix MMC
PropertiesOFC oxygen free copper
PropertiesFRNC flame retardant
PropertiesIn-ground / burial
PropertiesHalogen-free / LSZH
PropertiesDigital 110 O AES / EBU
PropertiesAnalog
Application areaELA 100 V
Application areaInstallation
ApplicationMultipair Modulation Cable
Colourblue
Colour detaileddark blue
Signal transmissionsymmetrical
Jacket materialFRNC
Number of Channels (audio)8
Number of Channels (audio)12
Number of Channels (audio)2
Number of Channels (audio)16
Number of Channels (audio)4
Inner conductor (audio)2
Inner conductor (audio) mm²0,25
Inner conductor Ø (audio) mm0,56
AWG (audio)23
ShieldingAL / PT foil + AL / PT foil and copper braiding overall shielding
Shielding factor %100
Copper strands (audio)32
Copper strand Ø (audio) mm0,10
Style variantround
Packingbulk stock
Temperature min. °C-20
Temperature max. °C80
Width mm10
Height mm10
Capac. cond./cond. per 1 m (audio) pF46
Capacity wire/wire at 1 ft. (audio) pF14,0208
Capac. cond./shield. per 1 m (audio) pF105
Capacity wire/electic screen at 1 ft. (audio) pF32,004
Impedance O110
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O72
Conductor resistance per 1000 ft. O21,9456
BPVo-EuroclassFca
