SOMMER Aqua Marinex Mikro Mikrofonkabel 2 x 0,14 mm² SOMMER Aqua Marinex Mikro Mikrofonkabel 2 x 0,14 mm² SOMMER Aqua Marinex Mikro Mikrofonkabel 2 x 0,14 mm²

SOMMER Aqua Marinex Mikro Mikrofonkabel

2 x 0,14 mm²

Varenr: 141319
Alt. varenr: 200-0141AQ
53,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Shower singers should be happy now ...

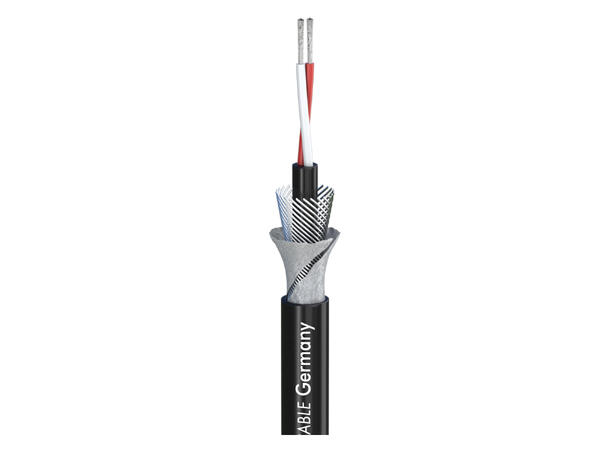

HIER FEHLT ETWAS! .... the new AQUA MARINEX microphone cable for permanent underwater use like e.g. in aquaparks or water oases. Not only does it provide an outstanding audio transmission, it can also handle the control of visual effects. In particular at longterm events such as lake night festivals, Christmas markets, sports events, in the theater sector or for the demanding OB van technology, the AQUA MARINEX is the ideal connection. In order to withstand the high water pressure as well as mechanical and electrical influences, we have given the inner wires an extra stabilization and also added two tight braided shields which are insulated against each other, i.e. for good measure one shield can be applied to the shell of the XLR connector. It is slightly more rigid than conventional PVC cables, yet almost indestructible.


Advantages:

  • Salt and fresh water resistant outer shell
  • 110 Ohm Impedance, AES / EBU, DMX 512
  • Transversely watertight by water-absorbing, pressure-compensating guard band
  • Halogen-free
  • Cold-flexible and reelable
  • UV and microbe resistant
  • Shielded by two tight Cu braids

Application:

  • Permanent installation in water depths up to 20 m
  • Demanding outdoor installation (e.g. with long-time events)
  • Installation and usage near the coast and in boat-building
  • In- and outdoor installation in leisure parks and water oases
  • Digital control of visual effects


Specifications:

Article number200-0141AQ
NameSC-AQUA MARINEX MIKRO
EAN4049371315906
BrandSommer cable
PropertiesUnderwater / submerged
PropertiesDigital 110 O AES / EBU
PropertiesPUR
PropertiesAnalog
PropertiesHalogen-free / LSZH
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaELA 100 V
Application areaInstallation
ApplicationMicrophone Cable
Colourblack
Jacket material (AES/EBU, DMX)PUR-SR
Jacket Ø (AES/EBU, DMX) mm4,60
Inner conductor (AES/EBU, DMX)2
Inner conductor (AES/EBU, DMX) mm²0,14
Shielding (AES/EBU, DMX)Copper spiral + special protective bandage
Shielding factor %95
Copper strands (AES/EBU, DMX)18
Copper strand Ø (AES/EBU, DMX) mm0,10
Conductor insulation material (AES/EBU, DMX)PVC
Conductor insulation Ø (AES/EBU, DMX) mm0,00
Weight per 1 m g30
Fire load per m kWh0,18
Packingbulk stock
Temperature min. °C-40
Temperature max. °C80
Max. water depth m20
Max. water pressure bar2
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF65
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF19,812
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF190
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF57,912
Surge impedance (AES/EBU, DMX) O110
Insulation resist. per 1 km (AES/EBU, DMX) GO1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO0,3048
Conductor resistance per 1 km (AES/EBU, DMX) O141
Conductor resistance per 1000 ft. (AES/EBU, DMX) O42,9768
Shield. resistance per 1 km O29,1
Shield. resistance per 1000 ft. O8,8697
Available sinceV07.0
BPVo-EuroclassFca
