Shower singers should be happy now ...
Advantages:
- Sea- and freshwater resistant outer jacket
- 110 O wave impedance
- Transversely watertight due to water-absorbing, pressure-compensating protective banding
- Halogen-free
- Cold-flexible and reelable
- UV- and microbe-resistant
- Shielded by two tight CU mesh screens, insulated against each other
Application:
- Permanent laying in a maximum water depth of 50 m
- Demanding outdoor installation (e.g. with long-time events)
- Installation and usage near the coast and in boat-building
- In- and outdoor installation in leisure parks and water oases
- Digital control of visual effects
Specifications:
| Article number | 200-0241AQ |
|---|

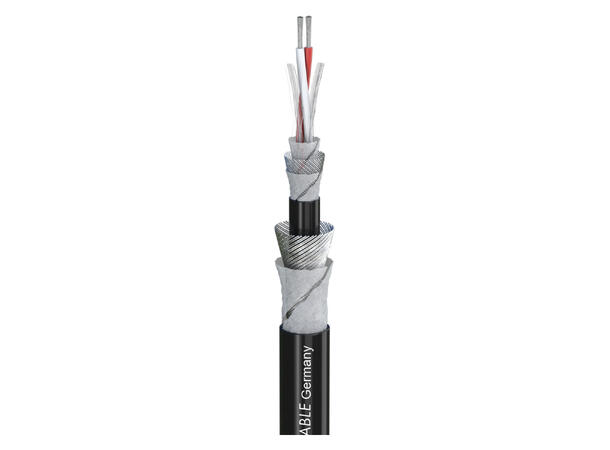

| Name | SC-AQUA MARINEX MIKRO 25 |
|---|
| EAN | 4049371194433 |
|---|
| Properties | Halogen-free / LSZH |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Properties | Analog |
|---|
| Properties | Digital 75 O |
|---|
| Properties | PUR |
|---|
| Properties | Underwater / submerged |
|---|
| Application area | Installation |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Stage / live |
|---|
| Application area | ELA 100 V |
|---|
| Application | Microphone Cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|
| Jacket material | PUR-SR |
|---|
| Jacket Ø mm | 7,20 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 2 |
|---|
| Inner conductor (audio) mm² | 0,25 |
|---|
| AWG (audio) | 23 |
|---|
| Shielding | 2 x copper spiral + special protective banding |
|---|
| Shielding factor % | 95 |
|---|
| Copper strands (audio) | 32 |
|---|
| Copper strand Ø (audio) mm | 0,10 |
|---|
| Conductor insulation material | PUR |
|---|
| Conductor insulation Ø mm | 1,60 |
|---|
| Weight per 1 m g | 65 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,27 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Temperature min. °C | -40 |
|---|
| Temperature max. °C | 80 |
|---|
| Width mm | 7,2 |
|---|
| Height mm | 7,2 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 50 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 15,24 |
|---|
| Capac. cond./shield. per 1 m (audio) pF | 190 |
|---|
| Capacity wire/electic screen at 1 ft. (audio) pF | 57,912 |
|---|
| Impedance O | 110 |
|---|
| Insulation resist. per 1 km GO | 1 |
|---|
| Insulation resist. per 1000 feet GO | 0,3048 |
|---|
| Insulation resist. per 1 km (audio) GO | 1 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,3048 |
|---|
| Conductor resistance per 1 km O | 78 |
|---|
| Conductor resistance per 1000 ft. O | 23,7744 |
|---|
| BPVo-Euroclass | Fca |
|---|
