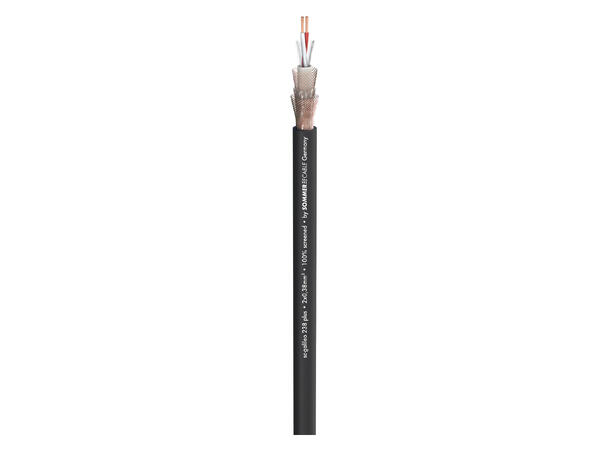

SOMMER Galileo 238 Plus Mikrofonkabel

2 x 0,38 mm², PVC Ø 7,00 mm, sort

Varenr: 141328

Alt. varenr: 200-0271

46,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Dual screen...

shields better. Just like the SC-SYMBIOTIC, but a little bit more exclusive due to the dual reversely stranded helical copper mesh screen and the wire pairs embedded in PVC. This makes it even more flexible. Because of the thicker wire diameter (2 x 0,38 mm²) it is suitable for distances greater than 100 meters. This cable is technically sophisticated and may be the best microphone cable on the world market. Your clients in the recording studio will be surprised at the low-noise transmission!

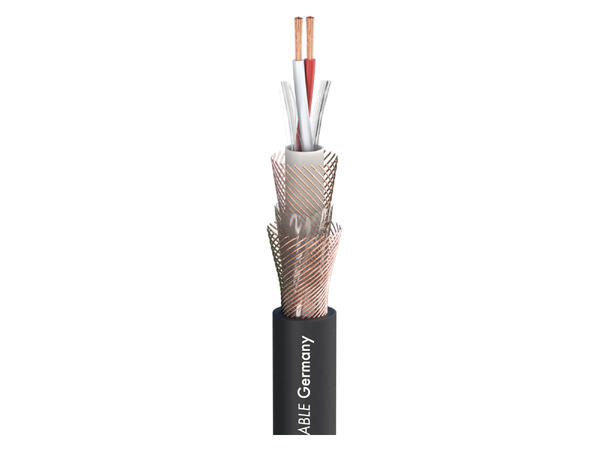

In the SC-Galileo 238 Plus (Order No. 200-0271) the two reverse laid helical mesh screens have been individually insulated using a non-conductive foil. This separation of the screen grounds is common practice in professional sound studios and in broadcasting.

Advantages:

Extreme long life and twist-proof due to the thick jacket and the wire pairs embedded in PVC
Absolutely neutral and loss-free audio transmission due to the use of fine copper
litz wires
Excellent protection due to the dense reverse dual mesh screen
Very flexible due to the tightly stranded conductors and litz wires
Loss-free transmission over long distances due to a large wire gauge of 2 x 0,38 mm²

Application:

Highly professional studio and stage technology
Demanding OB van technology for radio and broadcasting
First-class hifi connection (red and white conductors on pin 1, separate shielding)

Specifications:

Article number	200-0271
Name	SC-Galileo 238 Plus
EAN	4049371001229
Properties	OFC oxygen free copper
Properties	Analog
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application area	Stage / live
Application area	Installation
Application	Microphone Cable
Colour	black
Colour detailed	black
Signal transmission	symmetrical
Construction	(2LI2Y0,38mm²)YDDY
Jacket material	PVC
Jacket Ø mm	7,00
Number of Channels (audio)	1
Inner conductor (audio)	2
Inner conductor (audio) mm²	0,38
Inner conductor Ø (audio) mm	0,70
AWG (audio)	21
Shielding	Double copper spiral, counter-rotating + polyester tape
Shielding factor %	100
Copper strands (audio)	48
Copper strand Ø (audio) mm	0,10
Conductor insulation material	PE
Conductor insulation Ø mm	1,55
Weight per 1 m g	60
UV-resistant	yes
Fire load per m kWh	0,22
Style variant	round
Packing	100 m spool
Temperature min. °C	-30
Temperature max. °C	70
Width mm	7
Height mm	7
Capac. cond./cond. per 1 m (audio) pF	50
Capacity wire/wire at 1 ft. (audio) pF	15,24
Capac. cond./shield. per 1 m (audio) pF	100
Capacity wire/electic screen at 1 ft. (audio) pF	30,48
Impedance O	38
Insulation resist. per 1 km GO	1
Insulation resist. per 1000 feet GO	0,3048
Insulation resist. per 1 km (audio) GO	1
Insulation resist. per 1000 feet (audio) GO	0,3048
Conductor resistance per 1 km O	52
Conductor resistance per 1000 ft. O	15,8496
Shield. resistance per 1 km O	20
Shield. resistance per 1000 ft. O	6,096
BPVo-Euroclass	Fca
