SOMMER Isopod SO-F50 Patchkabel 2 x 0,50 mm², PVC Ø 4,20 mm, grå SOMMER Isopod SO-F50 Patchkabel 2 x 0,50 mm², PVC Ø 4,20 mm, grå

SOMMER Isopod SO-F50 Patchkabel

2 x 0,50 mm², PVC Ø 4,20 mm, grå

Varenr: 141365
Alt. varenr: 201-0406
20,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
200m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

The memory cable...

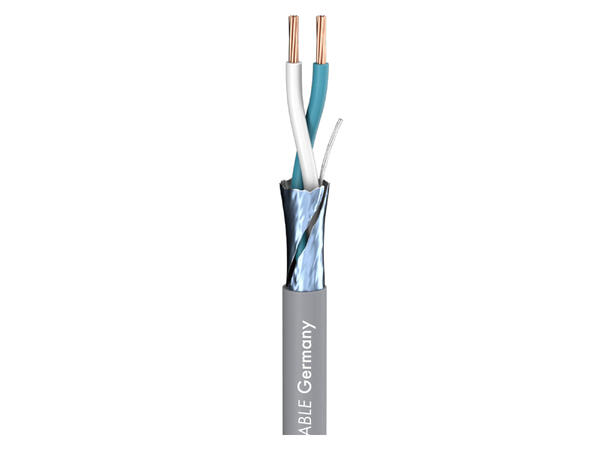

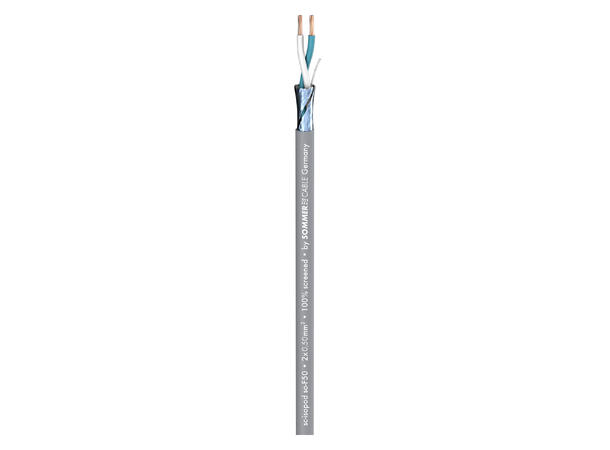

makes a clean sweep. Switchboards and racks often resemble granny’s knitting pattern sheets. You ought to clean up! The SC-Isopod SO-F50 is a 2-wire, foil-screened cable with a compact outer diameer 4,20 mm. The cable is used primarily for the internal wiring of audio and hifi components. It has a “memory effect” and may be easily laid “around the corner”. The Cu litz wires of the individual wire pairs are already pre-stranded and may be stripped very easily. For a simpler connection the cable has an extra pre-twisted and tinned drain wire. It is shielded by an AL/PT foil which will automatically stick to the jacket when stripping it down. The SC-ISOPOD SO-F50 has a larger wire cross-section (2 x 0,50 mm²) for crimp contacts.


Advantages:

  • Quick and easy to handle
  • Robust plastic jacket for long life
  • Easy to lay thanks to “memory effect”

Application:

  • Internal wiring of racks, audio and hifi components


Specifications:

Article number201-0406
NameSC-Isopod SO-F50
EAN4049371004619
PropertiesAnalog
PropertiesOFC oxygen free copper
Application areaInstallation
ApplicationPatch cable
Colourgrey
Colour detailedgrey
Signal transmissionsymmetrical
Construction(2LI2Y0,50mm²)(ST)Y
Jacket materialPVC
Jacket Ø mm4,20
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²0,50
Inner conductor Ø (audio) mm0,80
AWG (audio)21
ShieldingAL / PT foil + AL / PT foil + filler strand, tin-plated
Shielding factor %100
Copper strands (audio)7
Copper strand Ø (audio) mm0,30
Conductor insulation materialPE
Conductor insulation Ø mm1,50
Weight per 1 m g58
Fire load per m kWh0,07
Style variantround
Packing200 m spool
Temperature min. °C-25
Temperature max. °C70
Width mm4,2
Height mm4,2
Capac. cond./cond. per 1 m (audio) pF100
Capacity wire/wire at 1 ft. (audio) pF30,48
Capac. cond./shield. per 1 m (audio) pF160
Capacity wire/electic screen at 1 ft. (audio) pF48,768
Insulation resist. per 1 km GO0,2
Insulation resist. per 1000 feet GO0,061
Insulation resist. per 1 km (audio) GO0,2
Insulation resist. per 1000 feet (audio) GO0,061
Conductor resistance per 1 km O39
Conductor resistance per 1000 ft. O11,8872
Shield. resistance per 1 km O75
Shield. resistance per 1000 ft. O22,86
BPVo-EuroclassFca
