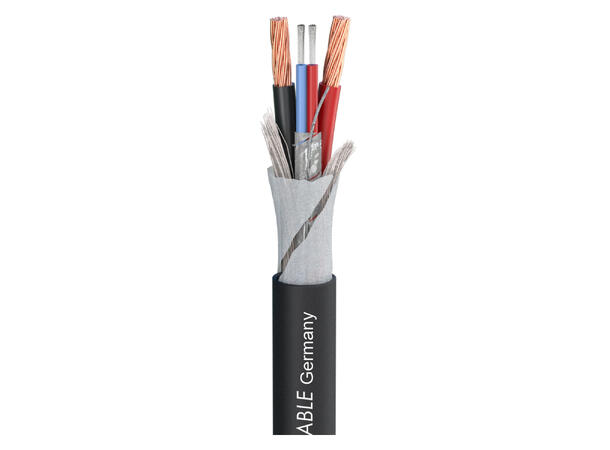

SOMMER Kolorith 1 CPR Hybridkabel

audio: 1x 2x 0,35 mm², pwr: 2x 2,00 mm²

Varenr: 141371
Alt. varenr: 500-0101-1FC
91,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

It brings colour to your life...

for the SC-KOLORITH is the perfect cable for use with low-voltage/IntelligentDC loudspeaker products from MEYER SOUND, building installation systems on BUS basis as well as for connecting colour changers. The SC-KOLORITH transmits data and power supply in one line. The pairwise stranded data line (wave impedance 110 O) is shielded and, due to the use of fine, tinned 0.10 mm single litz wires, guarantees high bending cycles. With 2 mm² the two voltage supply wires are ideally dimensioned for the transmission of voltages up to 50 V with low power losses.


Advantages:

  • Connection of building services engineering systems over distances of up to 1000 m
  • Also suitable as audio/speaker hybrid cable
  • Very compact, flexible and easy to use

Application:

  • For connecting colour changers
  • For installation purposes (Studio, illumination, building services engineering)
  • Outdoor installation applications
  • For connecting low-voltage / intelligent DC products made by Meyer Sound


Specifications:

Article number500-0101-1FC
NameSC-Kolorith 1 CPR-Version
EAN4049371378727
PropertiesAnalog
PropertiesOFC oxygen free copper
PropertiesDigital 110 O AES / EBU
Application areaMobile outdoor / indoor
Application areaStudio / Broadcast
Application areaInstallation
Application areaELA 100 V
ApplicationBUS Control cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical

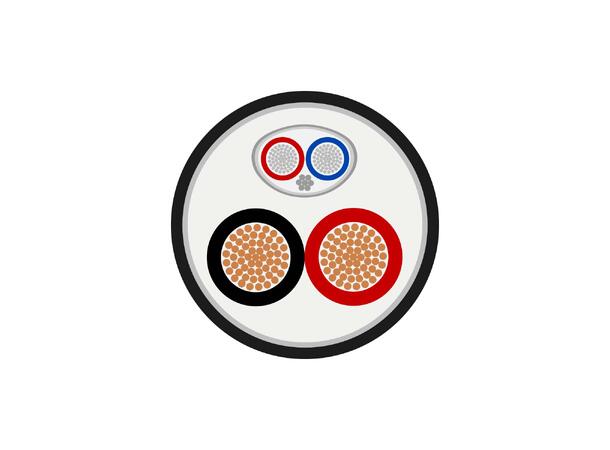

Construction2LIY2,0mm²+(2LIY0,35mm²)(ST)Y
Construction (audio)(2LIY0,35mm²)(ST)
Construction (power)2LIY2,0mm²
Jacket materialFRNC
Jacket Ø mm7,40
Jacket Ø (audio) mm2,50
Number of Channels (audio)1
Number of Channels (power)1
Inner conductor (audio)2
Inner conductor (power)2
Inner conductor (audio) mm²0,35
Inner conductor (power) mm²2,00
Inner conductor Ø (audio) mm0,67
Inner conductor Ø (power) mm1,60
AWG (audio)21
AWG (power)14
Shielding (audio)AL / PT foil + filler strand
Shielding factor %100
Copper strands (audio)45
Copper strand Ø (audio) mm0,10
Wire insulation material (audio)PP
Conductor insulation Ø mm0,00
Conductor insulation Ø (audio) mm1,30
Weight per 1 m g88
UV-resistantyes
Fire load per m kWh0,32
Style variantround
Packingbulk stock
Temperature min. °C-25
Temperature max. °C70
Width mm7,4
Height mm7,4
Capac. cond./cond. per 1 m (audio) pF65
Capacity wire/wire at 1 ft. (audio) pF19,812
Capac. cond./shield. per 1 m (audio) pF104
Capacity wire/electic screen at 1 ft. (audio) pF31,6992
Impedance O0
Surge impedance (audio) O110
Conductor resistance per 1 km O0
Conductor resistance per 1000 ft. O0
Conductor resistance per 1 km (audio) O60
Conductor resistance per 1000 ft. (audio) O18,288
Shield. resistance per 1 km O25
Shield. resistance per 1000 ft. O7,62
BPVo-EuroclassDca
Lenker & dokumenter
Produsentens hjemmesideDatablad
