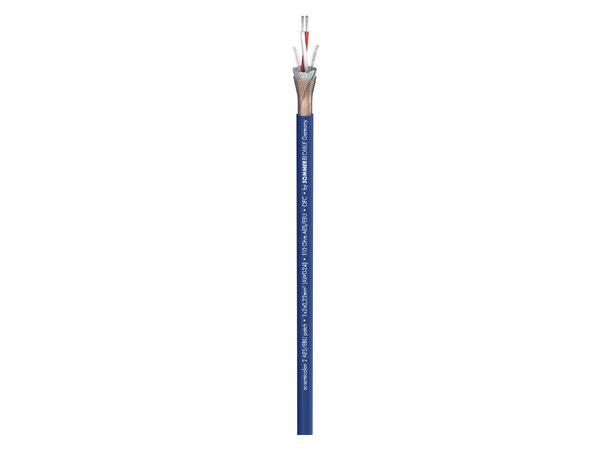

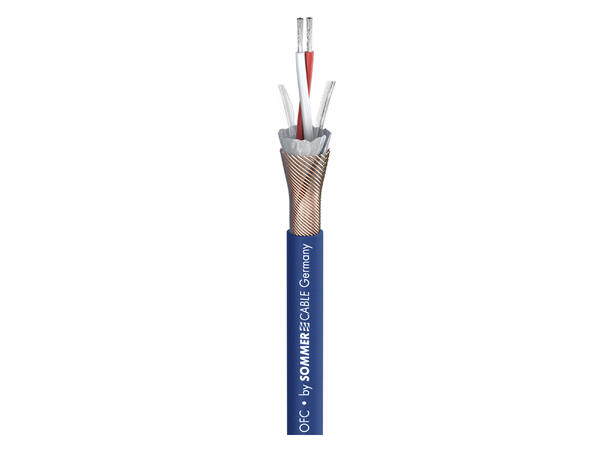

SOMMER Semicolon 2 AES/EBU DMX-kabel

2 x 0,22 mm², PVC Ø 5,00 mm, blå

Varenr: 141388

Alt. varenr: 520-0102

28,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Farge

Sort

Blå

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m

200 på lager i Oslo

Beskrivelse

The moon has risen...

Advantages:

Perfect shielding by a dense helical copper mesh screen + AL/PT foil or AL fleece
Compact and hence space-saving

Application:

Professional studio and microphone technology
Connection of effects and control units which require a return signal
Industrial technology and medical engineering
Professional MIDI-technology, transfer cable
High-end connection of hifi components
Control of lighting and scanner systems and displays

Specifications:

Article number	520-0102
Name	SC-Semicolon 2 AES/EBU
EAN	4049371002325
Properties	Digital 110 O AES / EBU
Properties	OFC oxygen free copper
Properties	Analog
Application area	Installation
Application area	Studio / Broadcast
Application	DMX
Colour	blue
Colour detailed	blue
Signal transmission	symmetrical
Construction	(2LI2Y0,22mm²)(ST)DY
Jacket material	PVC
Jacket Ø mm	5,00
Number of Channels (AES/EBU, DMX)	1
Inner conductor (AES/EBU, DMX)	2
Inner conductor (AES/EBU, DMX) mm²	0,22
Inner conductor Ø (AES/EBU, DMX) mm	0,53
AWG (AES/EBU, DMX)	24
Shielding	Copper spiral sleeve + AL-fleece
Shielding factor %	100
Copper strands (AES/EBU, DMX)	28
Copper strand Ø (AES/EBU, DMX) mm	0,10
Conductor insulation material	Foam / Skin-PE
Weight per 1 m g	33
Fire load per m kWh	0,13
Style variant	round
Packing	100 m spool
Packing	500 m spool
Temperature min. °C	-25
Temperature max. °C	70
Width mm	5
Height mm	5
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF	45
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF	13,716
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF	95
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF	28,956
Impedance O	110
Insulation resist. per 1 km GO	1
Insulation resist. per 1000 feet GO	0,3048
Insulation resist. per 1 km (AES/EBU, DMX) GO	1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO	0,3048
Conductor resistance per 1 km O	80
Conductor resistance per 1000 ft. O	24,384
BPVo-Euroclass	Fca
