Advantages:
- AES/EBU- and DMX-conformant, highly flexible

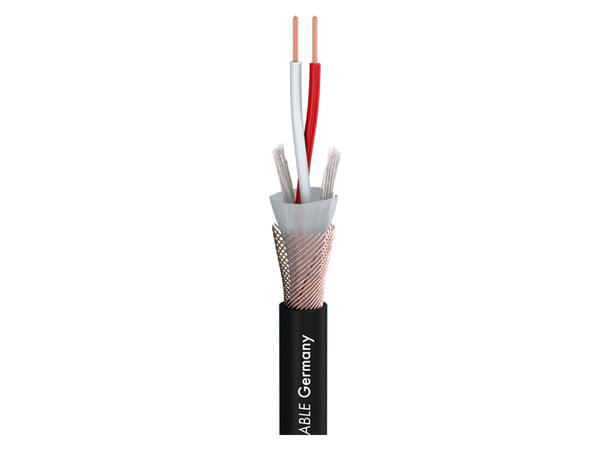

- Very good shielding due to the use of a helical copper mesh screen plus
an aluminium-vaporised fleece - Extremely rugged due to the special tough jacket
- Only a little more expensive than a standard microphone cable
Application:
- Networking of scanners, lighting systems, digital mixing consoles etc.
- For indoor and outdoor installation
- Connection of digital audio amplifiers, DAT recorders etc.
Specifications:
| Article number | 521-0051 |
|---|

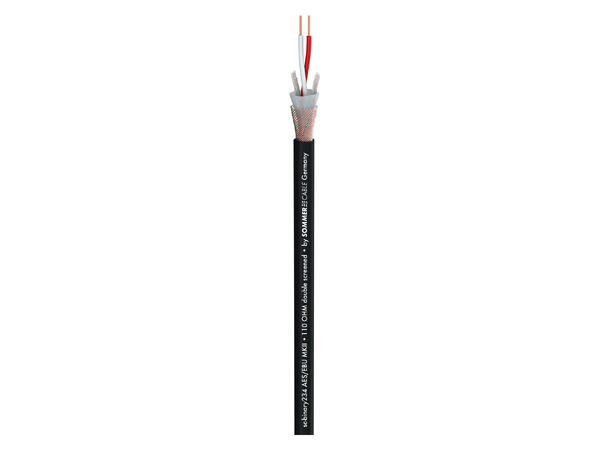

| Name | Binary 234 AES/EBU MKII |
|---|
| EAN | 4049371002370 |
|---|
| Properties | Analog |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | PUR Master Blend |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | ELA 100 V |
|---|
| Application area | Stage / live |
|---|
| Application area | Installation |
|---|
| Application | DMX |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|
| Construction | (2LI2Y0,34mm²)(ST)DY |
|---|
| Jacket material | PUR |
|---|
| Jacket Ø mm | 6,20 |
|---|
| Number of Channels (AES/EBU, DMX) | 1 |
|---|
| Inner conductor (AES/EBU, DMX) | 2 |
|---|
| Inner conductor (AES/EBU, DMX) mm² | 0,34 |
|---|
| Inner conductor Ø (AES/EBU, DMX) mm | 0,66 |
|---|
| AWG (AES/EBU, DMX) | 22 |
|---|
| Shielding | Copper spiral shielding + aluminum steamed fleece |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (AES/EBU, DMX) | 19 |
|---|
| Copper strand Ø (AES/EBU, DMX) mm | 0,15 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Conductor insulation Ø mm | 1,50 |
|---|
| Weight per 1 m g | 50 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,17 |
|---|
| Style variant | round |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -25 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 6,2 |
|---|
| Height mm | 6,2 |
|---|
| Capac. cond./cond. per 1 m (AES/EBU, DMX) pF | 63 |
|---|
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF | 19,2024 |
|---|
| Capac. cond./shield. per 1 m (AES/EBU, DMX) pF | 115 |
|---|
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF | 35,052 |
|---|
| Impedance O | 110 |
|---|
| Insulation resist. per 1 km GO | 1 |
|---|
| Insulation resist. per 1000 feet GO | 0,3048 |
|---|
| Insulation resist. per 1 km (AES/EBU, DMX) GO | 1 |
|---|
| Insulation resist. per 1000 feet (AES/EBU, DMX) GO | 0,3048 |
|---|
| Conductor resistance per 1 km O | 53 |
|---|
| Conductor resistance per 1000 ft. O | 16,1544 |
|---|
| Shield. resistance per 1 km O | 28 |
|---|
| Shield. resistance per 1000 ft. O | 8,5344 |
|---|
| BPVo-Euroclass | Fca |
|---|
