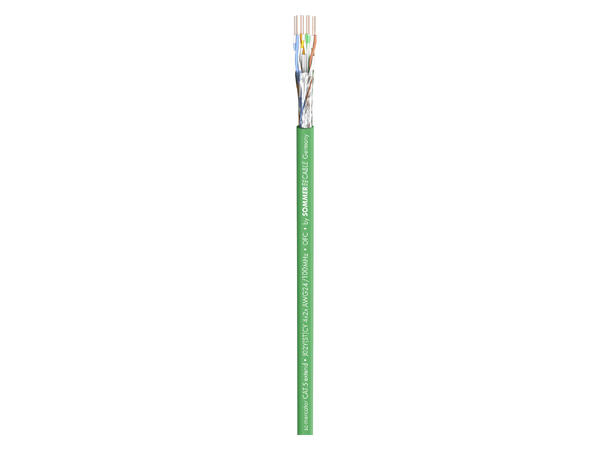

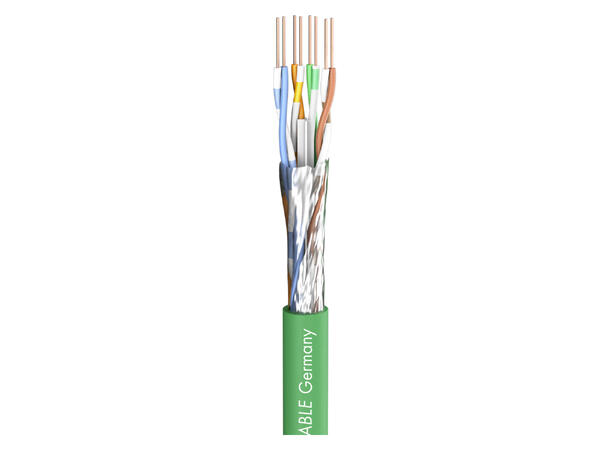

SOMMER Mercator Extend U/UTP

1 , PVC / FRNC, grønn, Ø 6,60 mm

Varenr: 141423
Alt. varenr: 581-0214
42,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Less is more...

and that precisely describes the strong points of the SC-Mercator Extend U/UTP. Owing to its simple construction and the consistent twist pitch, minimal runtime differences between the wire pairs are guaranteed. This feature, commonly known as SKEW FREE, predestines this cable for applications in the field of video and KVM extenders. The basic colours of the VGA signal - red, green and blue - are each transmitted in a balanced mode through individual wire pairs. Runtime differences between the wire pairs result in a lagged transmission of the individual colour signals, producing a distorted rendition of the overall signal which results in colour shifts, colour fringes. The 4th wire pair will carry the SYNC, keyboard and mouse signals as well as RS232, USB and the audio signal with professional KVM extenders (analogue or digital, depending on manufacturer).
SC-Mercator Extend U/UTP has no screen, as unshielded cables supply the best image results for these applications. The flexible jacket is made of flame-retardant PVC pursuant to IEC 60332-1.


Advantages:

  • Reliable signal transmission between sender and receiver with video and KVM extender systems
  • Small runtime differences between the individual wire pairs
  • Great durability and flexibility due to a special soft jacket compound

Application:

  • Optimised cable for use with video and KVM extenders


Specifications:

Article number581-0214
NameSC-Mercator Extend U/UTP
EAN4049371083492
PropertiesOFC oxygen free copper
PropertiesDigital 110 O AES / EBU
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Applicationvideo cable
Colourgreen
Colour detailedgreen
ConstructionLI2Y4x2x0,23mm²/100MHz

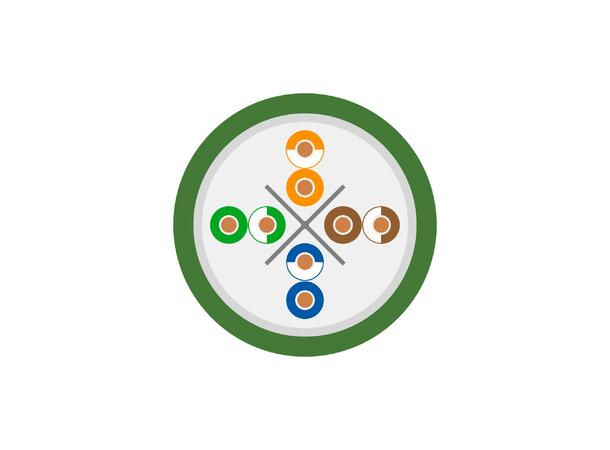

Construction (network)U/UTP 4x2x0,23mm²
Jacket materialPVC / FRNC
Jacket Ø mm6,60
Number of Channels (video)1
Inner conductor (video)8
Inner conductor (network) mm²0,23
AWG (video)24
Copper strands (video)7
Copper strands (network)7
Copper strand Ø (video) mm0,20
Copper strand Ø (network) mm0,20
Conductor insulation materialPE
Conductor insulation Ø mm0,95
Weight per 1 m g45
Fire load per m kWh0,214
Style variantround
Packing500 m spool
Packing100 m spool
CAT-TypeCAT.6
Velocity factor0,67
Temperature min. °C-20
Temperature max. °C75
Width mm6,6
Height mm6,6
Capacity wire/wire at 1m (video) pF51
Capacity wire/wire at 1 ft. (video) pF15,5448

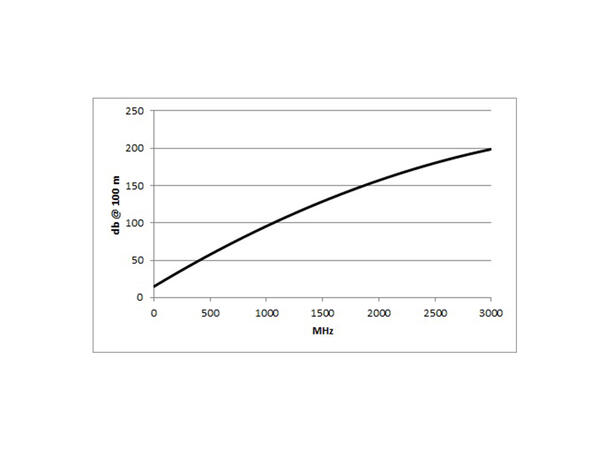

Damping at 5 MHz (100m & 20° C) dB15,8
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB4,8158
Damping at 50 MHz (100m & 20° C) dB19,4
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB5,9131
Damping at 100 MHz (100m & 20° C) dB23,9
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB7,2847
Damping at 200 MHz (100m & 20° C) dB32,6
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB9,9365
Damping at 470 MHz (100m & 20° C) dB55,3
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB16,8554
Damping at 862 MHz (100m & 20° C) dB88,5
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB26,9748
Damping at 1000 MHz (100m & 20° C) dB95,6
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB29,1389
Damping at 1485 MHz (100m & 20° C) dB127,5
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB38,862
Damping at 1750 MHz (100m & 20° C) dB143,4
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB43,7083
Damping at 2150 MHz (100m & 20° C) dB164,4
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB50,1091
Damping at 3000 MHz (100m & 20° C) dB198,7
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB60,5638
Impedance O100
Insulation resist. per 1 km GO2
Insulation resist. per 1000 feet GO0,6096
Insulation resist. per 1 km (video) GO2
Insulation resist. per 1000 feet (video) GO0,6096
BPVo-EuroclassFca
