Advantages:
- Low damping values 0.16 dB/m for optimum transmission across longer distances
- Small bending cycle of 50 mm
Application:
- High quality connection for transmission of digital signals
- Connection of audio components with optical digital output
- Installation inside buildings/PUR-version for industrial environment
Specifications:
| Article number | 590-0103 |
|---|
| Name | SC-Octopus |
|---|
| EAN | 4049371005531 |
|---|
| Properties | PUR |
|---|
| Properties | Digital 75 O |
|---|
| Application area | Installation |
|---|
| Application area | Studio / Broadcast |
|---|
| Application | Optical fiber |
|---|
| Colour | red |
|---|
| Colour detailed | red |
|---|

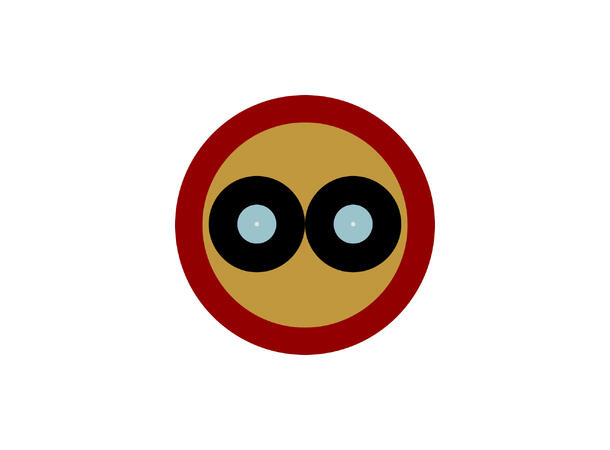

| Construction | I-V 02-2Y1P 980/1000 µm |
|---|
| Jacket material | PUR |
|---|
| Jacket Ø mm | 6,00 |
|---|
| Weight per 1 m g | 37 |
|---|
| Style variant | round |
|---|
| Core (fiber) µm | 980 |
|---|
| Cladding (fiber) µm | 1000 |
|---|
| Fibres | 2 |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 6 |
|---|
| Height mm | 6 |
|---|
| BPVo-Euroclass | Fca |
|---|
