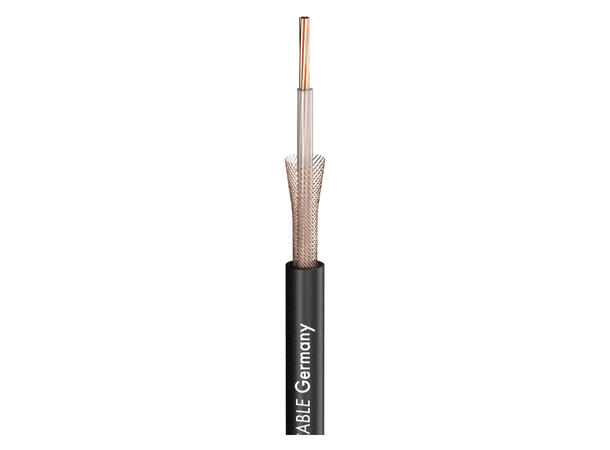

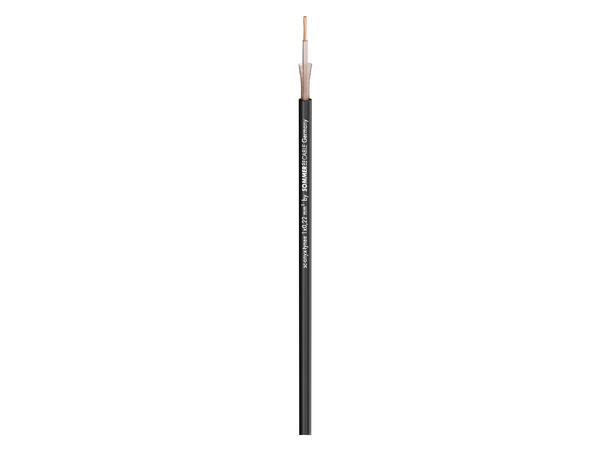

Inconspicuous and yet so important...
Advantages:
- Very flexible because of its fine single litz design
- Small jacket diameter, ensuring easy handling with RCA and jack connectors
- Durable jacket compound and oxygen-free copper (OFC class 6)
Application:
- Cabling of unbalanced devices (keyboards)
- Connection lead for hifi components
- Assembly of Y-adapter cable
- Assembly of insert cable
- For the interior wiring of electrical appliances
Specifications:
| Article number | 300-0031 |
|---|
| Name | SC-Onyx Tynee |
|---|
| EAN | 4049371002080 |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Analog |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Installation |
|---|
| Application | Patch & Instrument Cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | asymmetrical |
|---|

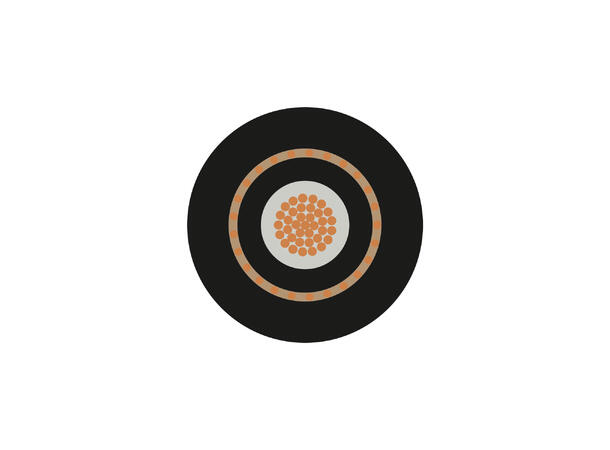

| Construction | LI2YDY1x0,22mm2 |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 4,00 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 1 |
|---|
| Inner conductor (audio) mm² | 0,22 |
|---|
| Inner conductor Ø (audio) mm | 0,53 |
|---|
| AWG (audio) | 24 |
|---|
| Shielding | Copper spiral shielding |
|---|
| Shielding factor % | 95 |
|---|
| Copper strands (audio) | 7 |
|---|
| Copper strand Ø (audio) mm | 0,20 |
|---|
| Conductor insulation material | PE |
|---|
| Weight per 1 m g | 18 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,12 |
|---|
| Style variant | round |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 4 |
|---|
| Height mm | 4 |
|---|
| Capac. cond./shield. per 1 m (audio) pF | 125 |
|---|
| Capacity wire/electic screen at 1 ft. (audio) pF | 38,1 |
|---|
| Insulation resist. per 1 km GO | 1 |
|---|
| Insulation resist. per 1000 feet GO | 0,3048 |
|---|
| Insulation resist. per 1 km (audio) GO | 1 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,3048 |
|---|
| Conductor resistance per 1 km O | 85 |
|---|
| Conductor resistance per 1000 ft. O | 25,908 |
|---|
| BPVo-Euroclass | Fca |
|---|
