Her er du nå: Lyd, lys & scene   >   Kabel   >   Kabel i bulk   >   Instrumentkabler   >   SOMMER Spirit Instrumentkabel
SOMMER Spirit Instrumentkabel 1 x 0,50 mm², PVC Ø 7,00 mm, sort SOMMER Spirit Instrumentkabel 1 x 0,50 mm², PVC Ø 7,00 mm, sort SOMMER Spirit Instrumentkabel 1 x 0,50 mm², PVC Ø 7,00 mm, sort

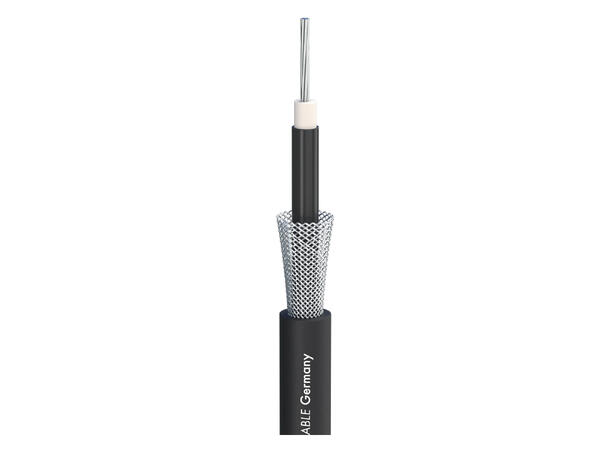

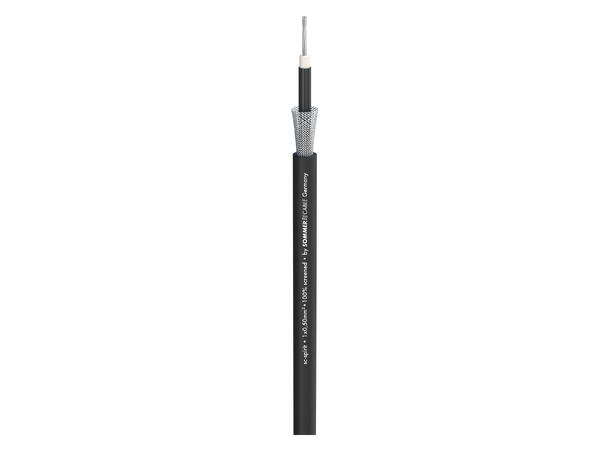

SOMMER Spirit Instrumentkabel

1 x 0,50 mm², PVC Ø 7,00 mm, sort

Varenr: 141492
Alt. varenr: 300-0051
39,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Like a lasso...


Advantages:

  • Incredibly punchy and clear sound with bass, guitar and keyboard due to our
    special litz stranding and a wire cross-section of 0,50 mm²
  • Dual shielding by a combination of a copper mesh screen plus conductive
    carbon screen
  • Low-loss transmission due to low capacitance
  • Very flexible and easy to reel because of its fine single litz design
  • Extremely durable and sturdy due to a special high-quality PVC jacket compound
  • Strain relief and good sleeve support due to thick PVC jacket

Application:

  • High-quality guitar cable for studio and stage
  • Unbalanced cable for keyboards, samplers, mixing desks etc.
  • Connection lead for CD/DVD player/recorder


Specifications:

Article number300-0051
NameSC-Spirit
EAN4049371002097
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaInstallation
ApplicationInstrument Cable
Colourblack
Colour detailedblack
Signal transmissionasymmetrical

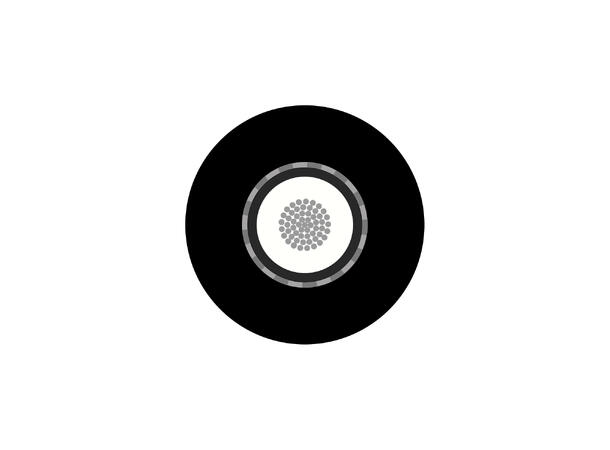

ConstructionLI2Y(LS)CY 1x0,50mm²
Jacket materialPVC
Jacket Ø mm7,00
Number of Channels (audio)1
Inner conductor (audio)1
Inner conductor (audio) mm²0,50
Inner conductor Ø (audio) mm0,80
AWG (audio)20
ShieldingCopper spiral tin-plated + semiconductor
Shielding factor %100
Copper strands (audio)19
Copper strand Ø (audio) mm0,18
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm3,10
Weight per 1 m g66
UV-resistantyes
Fire load per m kWh0,26
Style variantround
Packing100 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm7
Height mm7
Capac. cond./shield. per 1 m (audio) pF78
Capacity wire/electic screen at 1 ft. (audio) pF23,7744
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O39
Conductor resistance per 1000 ft. O11,8872
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
