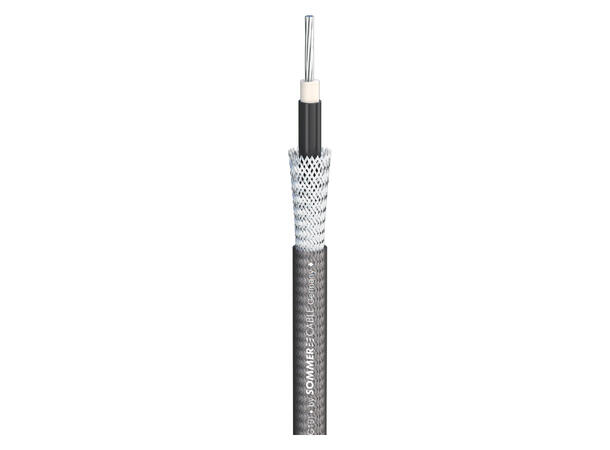

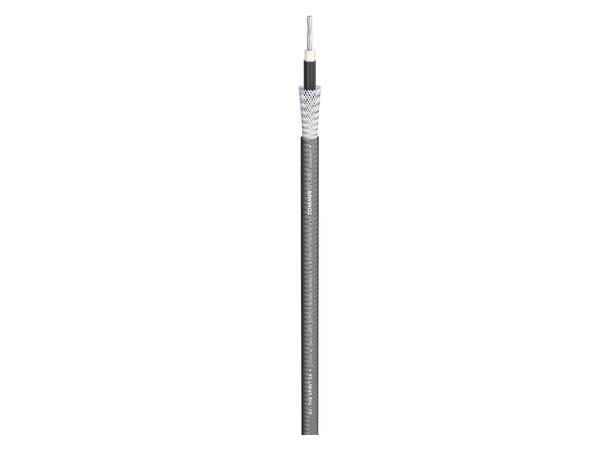

SOMMER Spirit XS Instrumentkabel 1 x 0,75 mm², PVC Ø 5,80 mm, brun SOMMER Spirit XS Instrumentkabel 1 x 0,75 mm², PVC Ø 5,80 mm, brun

SOMMER Spirit XS Instrumentkabel

1 x 0,75 mm², PVC Ø 5,80 mm, brun

Varenr: 141493
Alt. varenr: 300-0061
39,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse


Advantages:

  • Enormously powerful and clear sound image with bass, guitar and keyboard
  • Dual shielding by a combination of a copper mesh screen plus conductive
    carbon screen
  • Low-loss transmission despite compact external dimensions
  • Very flexible and easy to reel because of its fine single litz design
  • Extremely durable and sturdy due to a special high-quality PVC jacket compound

Application:

  • Compact guitar and bass cable for studio and stage
  • Unbalanced cable for floor effects, keyboards, samplers, mixing desks etc.


Specifications:

Article number300-0061
NameSC-Spirit XS
EAN4049371069472
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStudio / Broadcast
Application areaStage / live
Application areaMobile outdoor / indoor
ApplicationInstrument Cable
Colourblack
Colourbrown
Colourtransparent
Colour detailedbrown
Colour detailedblack
Colour detailedtransparent
Signal transmissionasymmetrical
ConstructionLI2Y(LS)CY 1x0,75mm²
Jacket materialPVC
Jacket material (audio)transp. PVC
Jacket Ø mm5,80
Number of Channels (audio)1
Inner conductor (audio)1
Inner conductor (audio) mm²0,75
Inner conductor Ø (audio) mm0,98
AWG (audio)18
ShieldingCopper spiral tin-plated + semiconductor
Shielding factor %100
Copper strands (audio)42
Copper strand Ø (audio) mm0,15
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm3,10
Weight per 1 m g43
UV-resistantyes
Fire load per m kWh0,18
Style variantround
Packing100 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm5,8
Height mm5,8
Capac. cond./shield. per 1 m (audio) pF76
Capacity wire/electic screen at 1 ft. (audio) pF26,2128
Insulation resist. per 1 km GO0,05
Insulation resist. per 1000 feet GO0,0152
Insulation resist. per 1 km (audio) GO0,05
Insulation resist. per 1000 feet (audio) GO0,0152
Conductor resistance per 1 km O25
Conductor resistance per 1000 ft. O7,62
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
