SOMMER TRICONE SYMASYM Instrumentkabel 1 x 2 x 0,14 mm², PVC, sort SOMMER TRICONE SYMASYM Instrumentkabel 1 x 2 x 0,14 mm², PVC, sort SOMMER TRICONE SYMASYM Instrumentkabel 1 x 2 x 0,14 mm², PVC, sort

SOMMER TRICONE SYMASYM Instrumentkabel

1 x 2 x 0,14 mm², PVC, sort

Varenr: 141507
Alt. varenr: 301-1101
104,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Balanced or unbalanced...

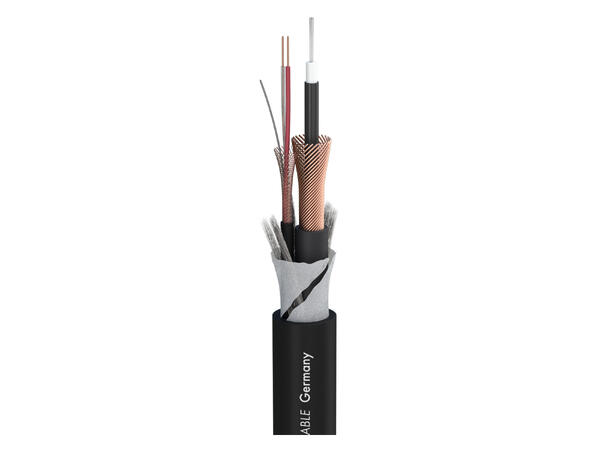

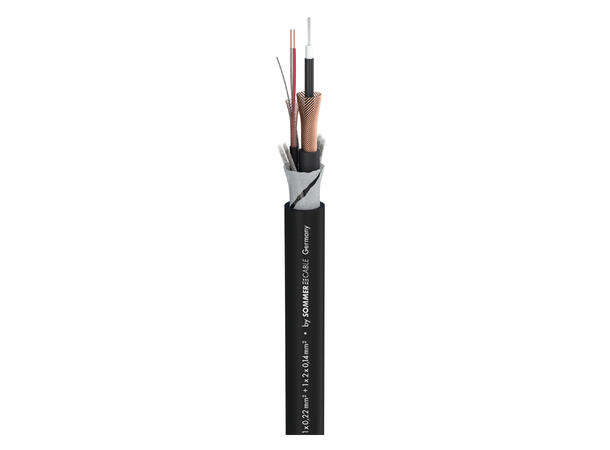

that is the question – or rather it isn’t, for with our TRICONE SYMASYM you’ve got both! Notably our axe players wanted to have a cable for the trendy piezo/electric guitars which could perfectly transmit the embosomed full crunch and also the true acoustic sound. This opens up new sound options within a song. And since we are passionate musicians ourselves, we immediately buckled down to develop a cable with a round PVC jacket (IEC 60332-1) combining the proven TRICONE ® and the compact, balanced CICADA.
By the way, this cable can also carry the instrument signal and the IN-EAR monitoring signal in one line. We see no limits for other application possibilities.


Advantages:

  • Unbalanced instrument line plus balanced audio line in one cable
  • Flexible round jacket for tough use on stage
  • Easy handling owing to 2-in-1 concept

Application:

  • Instrument + In-ear system over one cable
  • Guitars with electric/piezo multi-pickup system (standard magnetic pickups + bridge piezo)


Specifications:

Article number301-1101
NameTRICONE SYMASYM
EAN4049371257855
BrandSommer cable
PropertiesAnalog
PropertiesOFC oxygen free copper
Application areaStage / live
Application areaMobile outdoor / indoor
Application areaInstallation
ApplicationInstrument Cable
Colourblack
Colour detailedblack

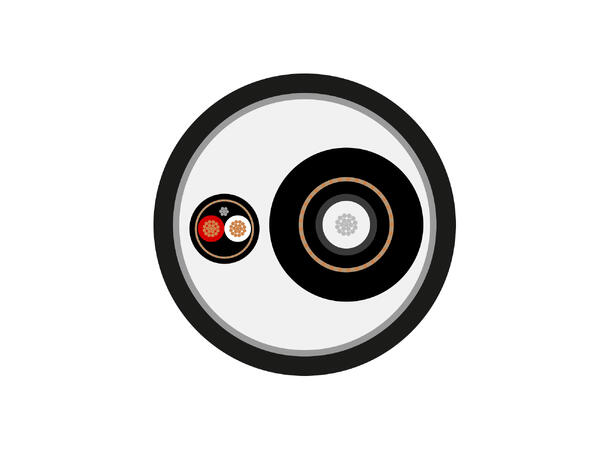

Construction1 x 0,22mm² + 1 x (2x0,14mm²)
Construction (audio)2x0,14mm²
Construction (instrument)1 x 0,22mm²
Jacket materialPVC
Jacket material (audio)PMB
Jacket Ø mm11,30
Jacket Ø (audio) mm2,60
Jacket Ø (instrument) mm4,60
Number of Channels (audio)1
Number of Channels (instrument)1
Inner conductor (audio)2
Inner conductor1
Inner conductor (audio) mm²0,14
Inner conductor mm²0,22
AWG (audio)25
AWG (instrument)23
Shielding (audio)Copper spiral + filler strand
Shielding (instrument)Cu mesh screen + semiconductor
Shielding factor %100
Copper strands (audio)18
Copper strands (instrument)28
Copper strand Ø (audio) mm0,10
Copper strand Ø (instrument) mm0,1
Weight per 1 m g133,33
UV-resistantyes
Fire load per m kWh0,55
Style variantround
Packingbulk stock
Temperature min. °C-25
Temperature max. °C70
Width mm11,3
Height mm11,3
Capac. cond./cond. per 1 m (audio) pF68
Capacity wire/wire at 1 ft. (audio) pF20,7264
Capac. cond./shield. per 1 m (audio) pF120
Capacity wire/electic screen at 1 ft. (audio) pF36,576
Capacity wire/electic screen at 1m (instrument) pF85
Capacity wire/electic screen at 1 ft. (instrument) pF25,908
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Insulation resist. per 1km (instrument) GO1
Insulation resist. per 1000 feet (instrument) GO0,3048
Conductor resistance per 1 km (audio) O136
Conductor resistance per 1000 ft. (audio) O41,4528
Conductor resistance per 1 km (instrument) O91
Conductor resistance per 1000 ft. (instrument) O27,7368
Shield. resistance per 1 km O30
Shield. resistance per 1000 ft. O9,144
Old article number301-1100
BPVo-EuroclassFca
