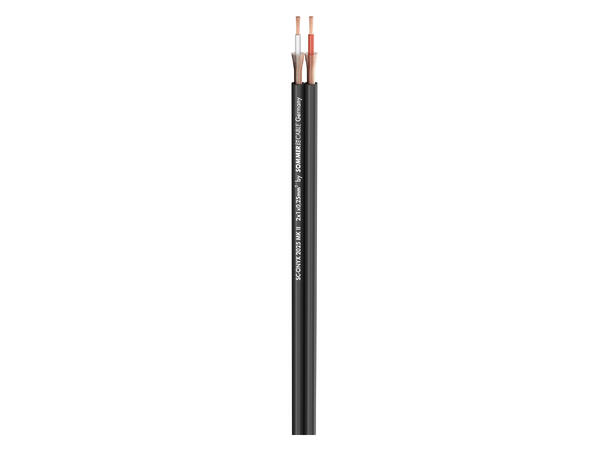

SOMMER Onyx 2025 MKII Instrumentkabel

2 x 1 x 0,25 mm², PVC, 8,3 x3,8 mm, sort

Varenr: 141510
Alt. varenr: 320-0101
31,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

The twin cable...

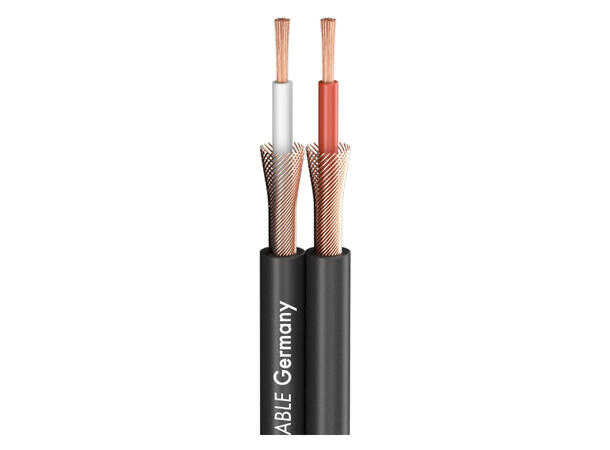

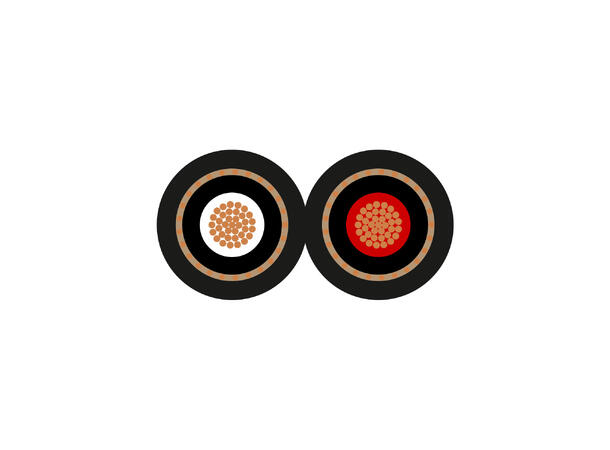

is similar in design and quality to the TRICONE MKII, but a little thinner due to the twin construction. It is well-suited for manufacturing hifi cables, adapters and for permanent installation. And it fits nearly all jack and RCA connectors. The SC-Onyx 2025 MKII can be spliced at the centre of the cable. Each wire has its own helical copper mesh screen plus a thick jacket. The insulation is marked in white and red.


Advantages:

  • Very flexible because of its fine single litz design
  • Each conductor is insulated and individually shielded with a helical copper
    mesh screen
  • Cables may be separated easily by hand
  • Small jacket diameter, ensuring easy handling with RCA and jack connectors

Application:

  • Cabling of unbalanced devices (keyboards)
  • Connection lead for hifi components
  • Assembly of Y-adapter cable
  • Assembly of insert cable


Specifications:

Article number320-0101
NameSC-Onyx 2025 MKII
EAN4049371003292
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaInstallation
Application areaStudio / Broadcast
ApplicationPatch & Instrument Cable
Colourblack
Colour detailedblack
Signal transmissionasymmetrical
ConstructionLI2YDY2x0,25mm²
Jacket materialPVC
Number of Channels (audio)2
Inner conductor (audio)1
Inner conductor (audio) mm²0,25
Inner conductor Ø (audio) mm0,56
AWG (audio)24
ShieldingCopper spiral shielding
Shielding factor %90
Copper strands (audio)32
Copper strand Ø (audio) mm0,10
Conductor insulation materialPE
Weight per 1 m g38
UV-resistantyes
Fire load per m kWh0,23
Style variantround
Packing100 m spool
Temperature min. °C-20
Temperature max. °C70
Width mm8,3
Height mm3,8
Capac. cond./shield. per 1 m (audio) pF120
Capacity wire/electic screen at 1 ft. (audio) pF36,576
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O115
Conductor resistance per 1000 ft. O35,052
BPVo-EuroclassFca
