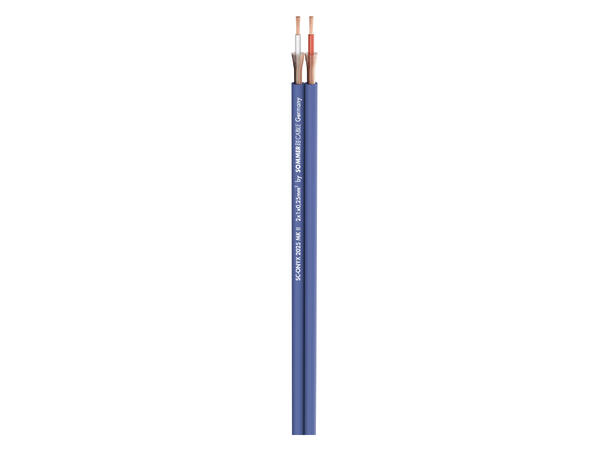

SOMMER Onyx 2025 MKII Instrumentkabel

2 x 1 x 0,25 mm², PVC, 8,3 x3,8 mm, blå

Varenr: 141511

Alt. varenr: 320-0102

30,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

The twin cable...

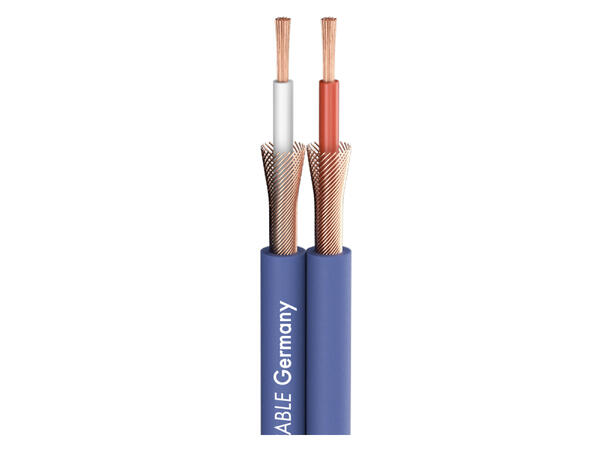

is similar in design and quality to the TRICONE MKII, but a little thinner due to the twin construction. It is well-suited for manufacturing hifi cables, adapters and for permanent installation. And it fits nearly all jack and RCA connectors. The SC-Onyx 2025 MKII can be spliced at the centre of the cable. Each wire has its own helical copper mesh screen plus a thick jacket. The insulation is marked in white and red.

Advantages:

Very flexible because of its fine single litz design
Each conductor is insulated and individually shielded with a helical copper
mesh screen
Cables may be separated easily by hand
Small jacket diameter, ensuring easy handling with RCA and jack connectors

Application:

Cabling of unbalanced devices (keyboards)
Connection lead for hifi components
Assembly of Y-adapter cable
Assembly of insert cable

Specifications:

Article number	320-0102
Name	SC-Onyx 2025 MKII
EAN	4049371003308
Properties	Analog
Properties	OFC oxygen free copper
Application area	Installation
Application area	Studio / Broadcast
Application	Patch & Instrument Cable
Colour	blue
Colour detailed	blue
Signal transmission	asymmetrical
Construction	LI2YDY2x0,25mm²
Jacket material	PVC
Number of Channels (audio)	2
Inner conductor (audio)	1
Inner conductor (audio) mm²	0,25
Inner conductor Ø (audio) mm	0,56
AWG (audio)	24
Shielding	Copper spiral shielding
Shielding factor %	90
Copper strands (audio)	32
Copper strand Ø (audio) mm	0,10
Conductor insulation material	PE
Weight per 1 m g	38
Fire load per m kWh	0,23
Style variant	round
Packing	100 m spool
Temperature min. °C	-20
Temperature max. °C	70
Width mm	8,3
Height mm	3,8
Capac. cond./shield. per 1 m (audio) pF	120
Capacity wire/electic screen at 1 ft. (audio) pF	36,576
Insulation resist. per 1 km GO	1
Insulation resist. per 1000 feet GO	0,3048
Insulation resist. per 1 km (audio) GO	1
Insulation resist. per 1000 feet (audio) GO	0,3048
Conductor resistance per 1 km O	115
Conductor resistance per 1000 ft. O	35,052
BPVo-Euroclass	Fca
