SOMMER Sinus Control Instrumentkabel 1 x 2 x 0,35 mm², 1 x  control, PVC, blå SOMMER Sinus Control Instrumentkabel 1 x 2 x 0,35 mm², 1 x  control, PVC, blå SOMMER Sinus Control Instrumentkabel 1 x 2 x 0,35 mm², 1 x  control, PVC, blå

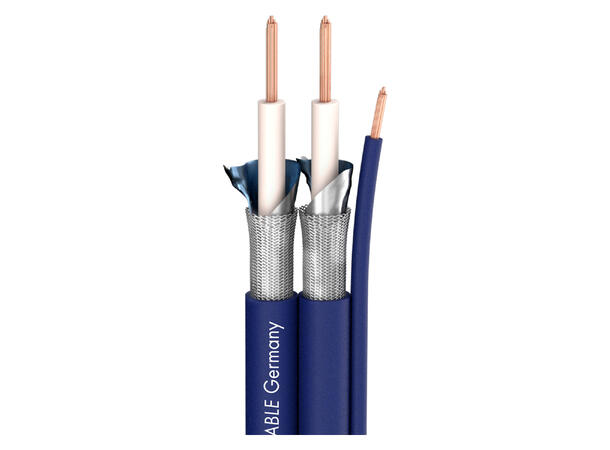

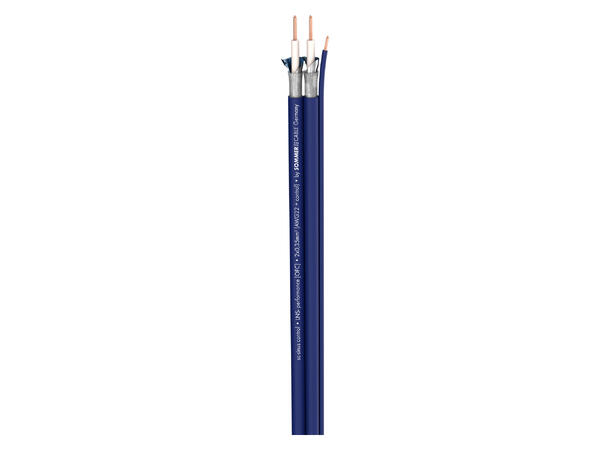

SOMMER Sinus Control Instrumentkabel

1 x 2 x 0,35 mm², 1 x control, PVC, blå

Varenr: 141512
Alt. varenr: 320-0252
54,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 50m
  • 100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Certainly your car will not run faster…

but a good sound in your car can compensate for many an annoying chassis noise. But seriously: the SC-Sinus Control enjoys almost cult status among hifi fans and car hifi addicts, for at the extremely low price you get a cable which can even teach expensive high-end cables the meaning of fear. The SC-Sinus Control already performs in hundreds of thousands of home and car hifi systems, and is favoured especially by the latter because of its perfect shielding (copper mesh + AL/PT foil), which prevents any interference both in the RF and NF range.
Due to its lavish insulation of a highly compressed Foam/Skin-PE, the SC-Sinus Control has a very low capacitance and very good audio data.
A control wire is directly included to control e.g. CD players or other devices, but may also be used as a phono earth wire.


Advantages:

  • Bass-heavy and punchy sound image
  • Dual shielding with 100 % optical coverage
  • Control wire included
  • Affordable price

Application:

  • Instrument or phono cable for average to high demands
  • Unbalanced twin cable for high-quality car hifi systems


Specifications:

1
Article number320-0252
NameSC-Sinus Control
EAN4049371002103
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStudio / Broadcast
Application areaInstallation
ApplicationInstrument Cable
Colourblue
Colour detailedblue
Signal transmissionasymmetrical

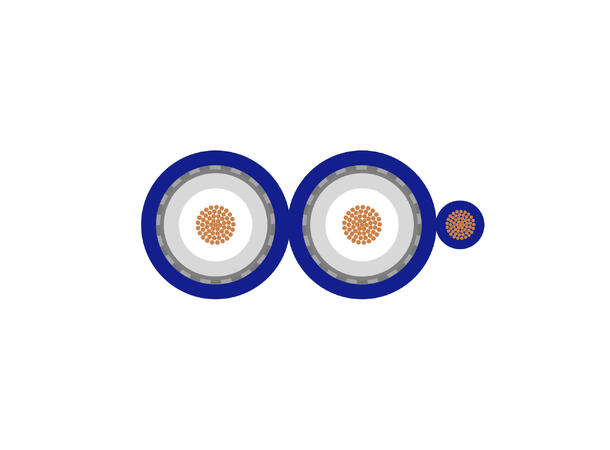

ConstructionLI2Y(ST)CY2x0,35mm²+1x0,35mm²
Construction (audio)LI2Y(ST)CY2x0,35mm²
Construction (control)1 x 0,35 mm²
Jacket materialPVC
Number of Channels (audio)1
Number of Channels (control)1
Inner conductor (audio)2
Inner conductor (audio) mm²0,35
Inner conductors (control) mm²0,35
Inner conductor Ø (audio) mm0,67
Inner conductor Ø (control) mm0,67
AWG (audio)22
AWG (control)22
Shielding (audio)Copper braiding + AL / PT foil
Shielding factor %100
Copper strands (audio)11
Copper strands (control)11
Copper strand Ø (audio) mm0,20
Copper strand Ø (control) mm0,20
Wire insulation material (audio)Foam / Skin-PE
Conductor insulation Ø (audio) mm3,00
Weight per 1 m g86
Fire load per m kWh0,26
Style varianttwin
Packing100 m spool
Packing50m spool
Temperature min. °C-20
Temperature max. °C70
Width mm15
Height mm6,2
Capac. cond./shield. per 1 m (audio) pF75
Capacity wire/electic screen at 1 ft. (audio) pF22,86
Insulation resist. per 1 km GO0
Insulation resist. per 1000 feet GO0
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km (audio) O53
Conductor resistance per 1000 ft. (audio) O16,1544
BPVo-EuroclassFca
