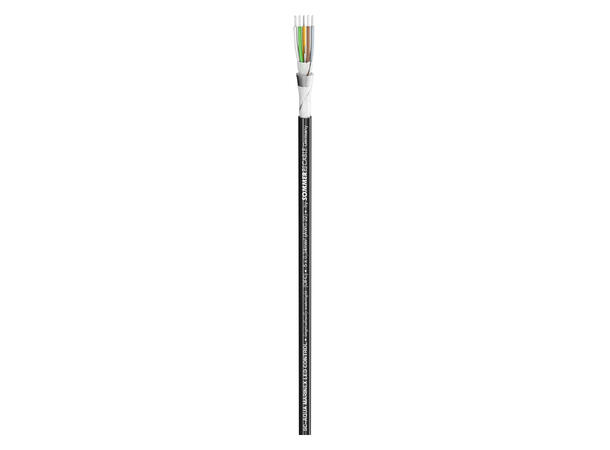

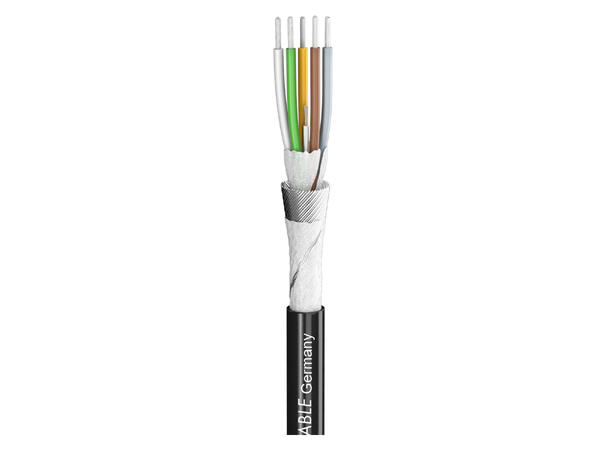

SOMMER Aqua Marinex LED Control

PUR-SR, Ø 5,10 mm

Varenr: 141567

Alt. varenr: 380-0241-05034AQ

60,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

490 på lager i Oslo

Beskrivelse

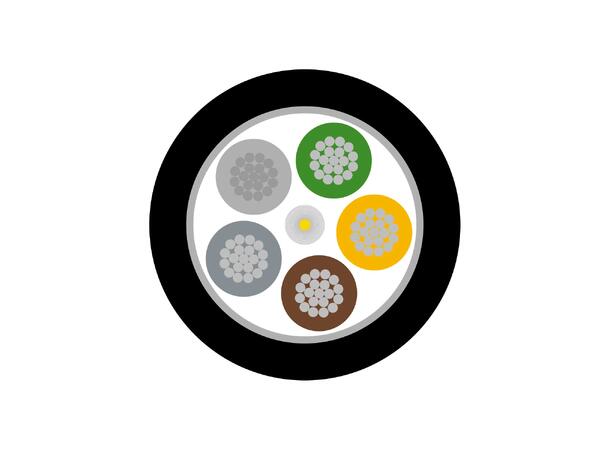

Special RGBW LED cable to 5 adriger execution (4 wires for color channels + black return conductor)
Extension for RGB strips or as an RGB signal lead
For permanent installation in and around water max. Depth 10 m

Article number	380-0241-05034AQ
Name	SC-Aqua Marinex LED Control
EAN	4049371315913
Jacket material	PUR-SR
Jacket Ø mm	5,10
Inner conductors (control)	5
Inner conductors (control) mm²	0,34
AWG (control)	22
Copper strands (control)	45
Copper strand Ø (control) mm	0,10
Conductor insulation material	PE
Conductor insulation Ø mm	1,20
Weight per 1 m g	45
UV-resistant	yes
Fire load per m kWh	0,24
Packing	bulk stock
Temperature min. °C	-40
Temperature max. °C	80
Max. water depth m	10
Max. water pressure bar	2
Width mm	5,1
Height mm	5,1
Capacity wire/wire at 1m (control) pF	79
Capacity wire/wire at 1 ft. (control) pF	24,0792
Insulation resist. per 1 km GO	1
Insulation resist. per 1000 feet GO	0,3048
Shield. resistance per 1 km O	27
Shield. resistance per 1000 ft. O	8,2296
Available since	V07.1
BPVo-Euroclass	Fca
