Her er du nå: Lyd, lys & scene   >   Kabel   >   Kabel i bulk   >   Høyttalerkabler   >   SOMMER Meridian I SP225 Høyttalerkabel
SOMMER Meridian I SP225 Høyttalerkabel 2 x 2,50 mm², FRNC, skjermet, mørk grå SOMMER Meridian I SP225 Høyttalerkabel 2 x 2,50 mm², FRNC, skjermet, mørk grå

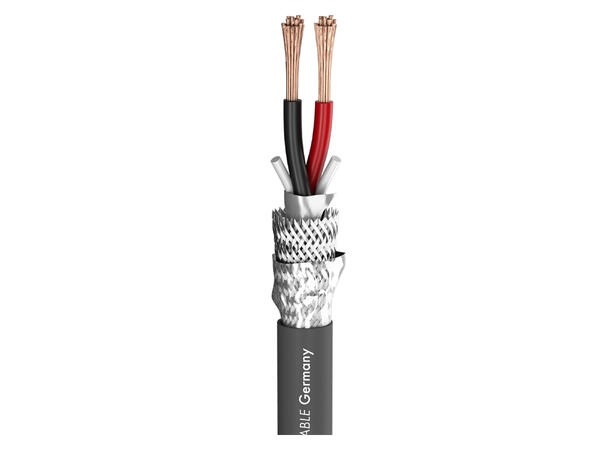

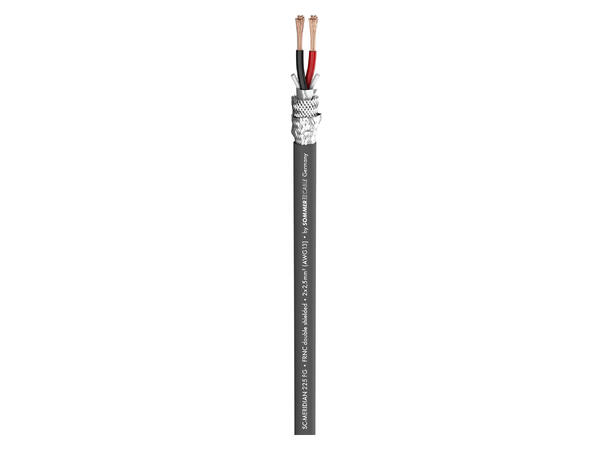

SOMMER Meridian I SP225 Høyttalerkabel

2 x 2,50 mm², FRNC, skjermet, mørk grå

Varenr: 141650
Alt. varenr: 425-0056FG
100,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Where brute force reigns in a useful manner...

sound pros are at work and they just won't go easy on cables. Not a problem for our robust SC-MERIDIAN. This cable is specially designed for loudspeakers and meets all relevant technical requirements. Oxygen-free Cu wires ensure a better sound and a higher durability. The FRNC and E30 versions (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2) are ideally suitable for permanent installation. With its dual screen (Cu braid and AL foil) and a halogen-free, flame-retardant outer jacket pursuant to grade IEC 332.3, the shielded MERIDIAN FG version is suitable for outdoor and indoor installations or ELA technology. For construction reasons this version is not suitable for mobile applications.


Advantages:

  • Small in diameter
  • Very durable due to the use of special coating mixtures
  • Affordable price

Application:

  • PA sound systems of all kinds
  • For fixed installation
  • For ELA technology
  • Cabling of HiFi systems


Specifications:

Article number425-0056FG
NameMeridian Install SP225
EAN4049371002691
PropertiesHalogen-free / LSZH
PropertiesAnalog
PropertiesOFC oxygen free copper
PropertiesFRNC flame retardant
Application areaInstallation
Application areaStudio / Broadcast
Application areaELA 100 V
ApplicationInstallation cable
ApplicationSpeaker Cable
Colourgrey
Colour detaileddark grey
Construction(2LIY2,5mm²)(ST)CY
Construction (audio)(2LIY2,5mm²)Y
Jacket materialFRNC, shielded
Jacket Ø mm8,30
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²2,50
Inner conductor Ø (audio) mm1,78
AWG (audio)13
Copper strands (audio)50
Copper strand Ø (audio) mm0,25
Conductor insulation Ø mm3,05
Weight per 1 m g106
Fire load per m kWh0,38
Style variantround
Packing500 m spool
Packing100 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm8,3
Height mm8,3
Capac. cond./cond. per 1 m (audio) pF136
Capacity wire/wire at 1 ft. (audio) pF41,4528
Insulation resist. per 1 km GO0,005
Insulation resist. per 1000 feet GO0,0015
Insulation resist. per 1 km (audio) GO0,005
Insulation resist. per 1000 feet (audio) GO0,0015
Conductor resistance per 1 km O7,5
Conductor resistance per 1000 ft. O2,286
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
