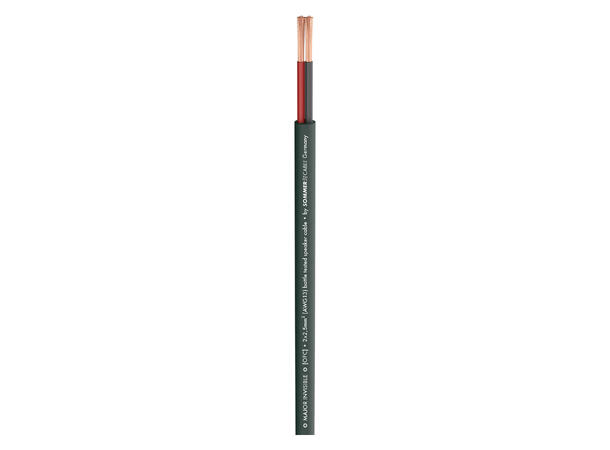

SOMMER Major Invisible Høyttalerkabel

2 x 2,50 mm², PVC Ø 7,80 mm, olivengrønn

Varenr: 141666

Alt. varenr: 425-008M

57,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Article number	425-008M
Name	Major Invisible
EAN	4049371005289
Properties	OFC oxygen free copper
Properties	Analog
Application area	ELA 100 V
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application area	Stage / live
Application	Speaker Cable
Colour	green
Colour detailed	olive green
Construction	(2LIY2,5 mm²)Y
Jacket material	PVC
Jacket Ø mm	7,80
Number of Channels (audio)	1
Inner conductor (audio)	2
Inner conductor (audio) mm²	2,50
Inner conductor Ø (audio) mm	1,78
AWG (audio)	13
Copper strands (audio)	140
Copper strand Ø (audio) mm	0,15
Conductor insulation Ø mm	3,05
Weight per 1 m g	106
Fire load per m kWh	0,33
Style variant	round
Packing	500 m spool
Packing	100 m spool
Temperature min. °C	-30
Temperature max. °C	70
Width mm	7,8
Height mm	7,8
Capac. cond./cond. per 1 m (audio) pF	136
Capacity wire/wire at 1 ft. (audio) pF	41,4528
Insulation resist. per 1 km GO	0,005
Insulation resist. per 1000 feet GO	0,0015
Insulation resist. per 1 km (audio) GO	0,005
Insulation resist. per 1000 feet (audio) GO	0,0015
Conductor resistance per 1 km O	7,5
Conductor resistance per 1000 ft. O	2,286
BPVo-Euroclass	Fca
