SOMMER Eclipse SPQ240mkII Høyttalerkabel 2 x 4,00 mm², PVC Ø 9,50 mm, grå SOMMER Eclipse SPQ240mkII Høyttalerkabel 2 x 4,00 mm², PVC Ø 9,50 mm, grå

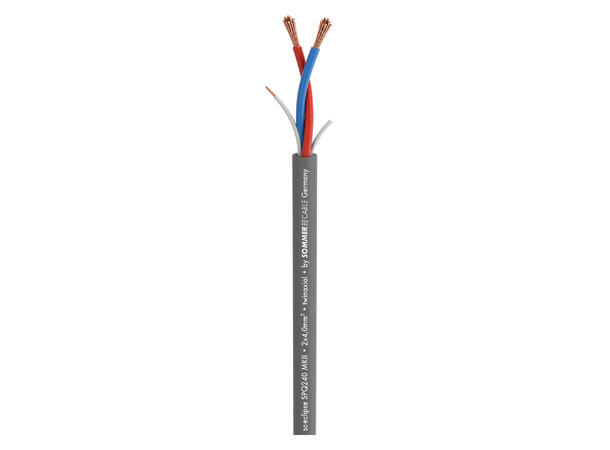

SOMMER Eclipse SPQ240mkII Høyttalerkabel

2 x 4,00 mm², PVC Ø 9,50 mm, grå

Varenr: 141675
Alt. varenr: 440-0256
96,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 200m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Up and down, time and again...

This speaker cable will always return to its normal position. Even with severe traffic violations – when rolled over by a flight case – it will always stand its ground. As a special feature we have fitted the cable with a viscose filled PVC smoother and a 0.50 mm² sense line. This cable can withstand even the toughest stage demands.

This speaker cable has fine and tightly stranded OFC litz wires like they are normalle found only in exclusive top-class hifi cables. For optimum conductivity we have grouped the copper litz wires into complex bundles. Which is why this cable has not only an incredible flexibility, but also an outstanding transmission quality. This can be noticed also with longer cable runs by clean and clear highs, dynamic mids and
increased bass punch.


Advantages:

  • Loss-free signal transmission even over long distances due to the use of tightly
    stranded copper litz wires
  • Highly flexible due to the use of a rubberlike PVC jacket
  • Extremely robust and dependable

Application:

  • PA/sound reinforcement systems
  • For fixed installation
  • Top-quality hifi connections


Specifications:

Article number440-0256
NameSC-Eclipse SPQ240 MKII
EAN4049371002202
PropertiesAnalog
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaStage / live
Application areaInstallation
ApplicationSpeaker Cable
Colourgrey
Colour detailedgrey
Construction(2LIY4,0mm²+0,5 mm²)Y
Jacket materialPVC
Jacket Ø mm9,50
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²4,00
Inner conductor Ø (audio) mm2,26
AWG (audio)11
Copper strands (audio)224
Copper strand Ø (audio) mm0,15
Conductor insulation materialPVC
Conductor insulation Ø mm3,60
Weight per 1 m g165
Fire load per m kWh0,46
Style variantround
Packing100 m spool
Packing200 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm9,5
Height mm9,5
Capac. cond./cond. per 1 m (audio) pF136
Capacity wire/wire at 1 ft. (audio) pF41,4528
Insulation resist. per 1 km GO0,005
Insulation resist. per 1000 feet GO0,0015
Insulation resist. per 1 km (audio) GO0,005
Insulation resist. per 1000 feet (audio) GO0,0015
Conductor resistance per 1 km O4,5
Conductor resistance per 1000 ft. O1,3716
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmeside
