SOMMER Focusline MS Videokabel 1 x 0,60, PVC FH Ø 6,20 mm, sort SOMMER Focusline MS Videokabel 1 x 0,60, PVC FH Ø 6,20 mm, sort SOMMER Focusline MS Videokabel 1 x 0,60, PVC FH Ø 6,20 mm, sort SOMMER Focusline MS Videokabel 1 x 0,60, PVC FH Ø 6,20 mm, sort

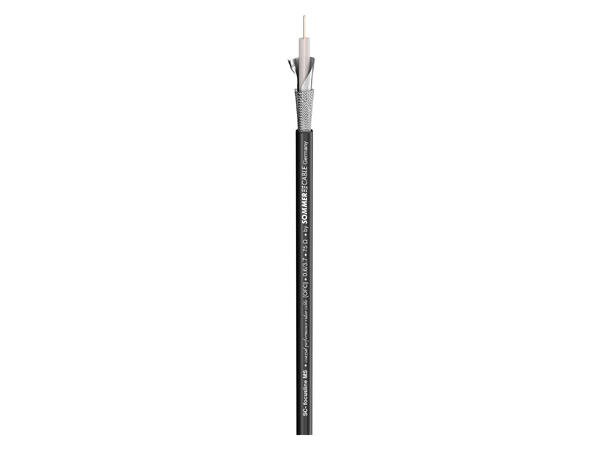

SOMMER Focusline MS Videokabel

1 x 0,60, PVC FH Ø 6,20 mm, sort

Varenr: 141698
Alt. varenr: 600-0051MS
33,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 1000m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

That’s it exactly...


Advantages:

  • Precise wave impedance of 75 O
  • Flexible and robust outer jacket
  • Available in green and black

Application:

  • Image processing in video technology
  • Cabling of viewing and surveillance monitors
  • Permanent installation in the broadcasting and television sectors
  • Data transmission
  • HF technology


Specifications:

Article number600-0051MS
NameSC-Focusline MS
EAN4049371003544
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Application areaStudio / Broadcast
Applicationvideo cable
Colourblack
Colour detailedblack

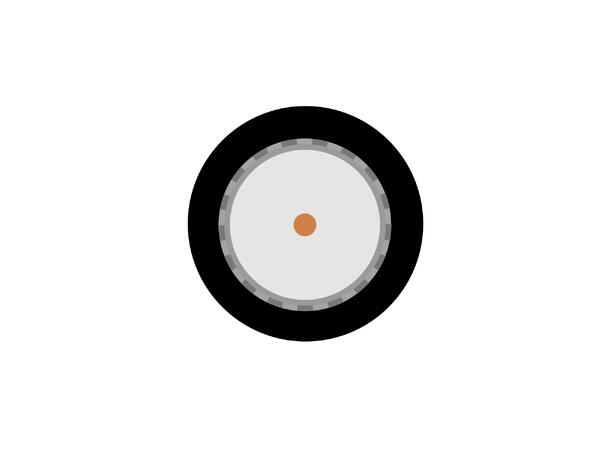

Construction02YS(ST)CH0,6/3,7
Jacket materialPVC, flame-retardant
Jacket material (video)FR-PVC
Jacket Ø mm6,20
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,28
Inner conductor Ø (video) mm0,60
AWG (video)23

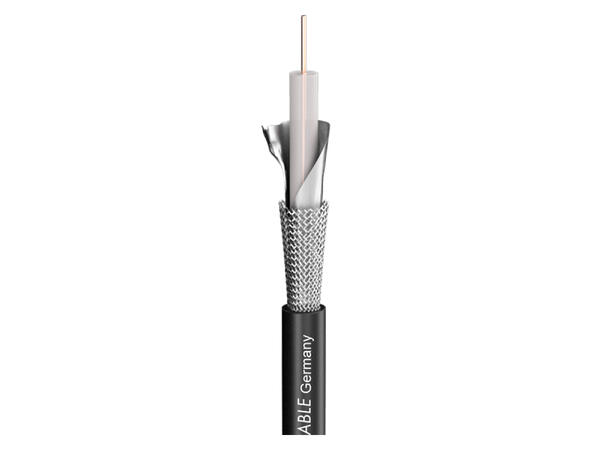

ShieldingCopper braiding tin-plated + metalic fleece
Shielding factor %100
Copper strands (video)1
Copper strand Ø (video) mm0,60
Conductor insulation materialPE
Conductor insulation Ø mm3,70
Weight per 1 m g44
UV-resistantyes
Fire load per m kWh0,23
Style variantround
Packing1000 m spool
Packing100 m spool
Velocity factor0,66
Temperature min. °C-30
Temperature max. °C70
Width mm6,2
Height mm6,2
Capacity wire/electic screen at 1m (video) pF67
Capacity wire/electic screen at 1 ft. (video) pF20,4216

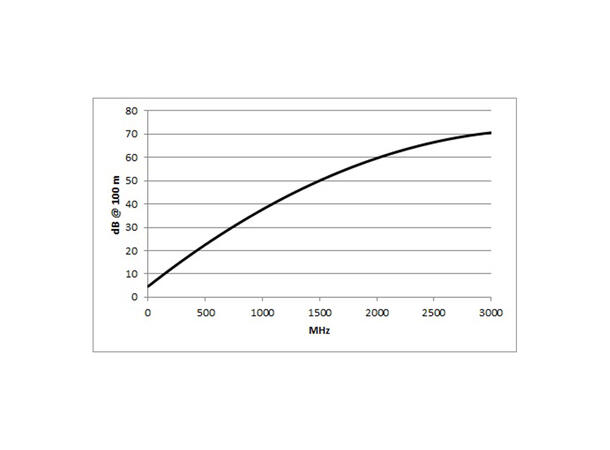

Damping at 5 MHz (100m & 20° C) dB2,2
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB0,6706
Damping at 50 MHz (100m & 20° C) dB7,3
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB2,225
Damping at 200 MHz (100m & 20° C) dB15,4
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB4,6939
Damping at 470 MHz (100m & 20° C) dB24,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB7,4676
Damping at 862 MHz (100m & 20° C) dB33,7
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB10,2718
Damping at 1000 MHz (100m & 20° C) dB37,2
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB11,3386
Impedance O75
Conductor resistance per 1 km O63,5
Conductor resistance per 1000 ft. O19,3548
Shield. resistance per 1 km O13
Shield. resistance per 1000 ft. O3,9624
BPVo-EuroclassFca
