SOMMER Focusline L Videokabel 1 x 0,60, PVC Ø 6,20 mm, grønn SOMMER Focusline L Videokabel 1 x 0,60, PVC Ø 6,20 mm, grønn SOMMER Focusline L Videokabel 1 x 0,60, PVC Ø 6,20 mm, grønn

SOMMER Focusline L Videokabel

1 x 0,60, PVC Ø 6,20 mm, grønn

Varenr: 141699
Alt. varenr: 600-0054L
23,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 1000m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

That’s it exactly...

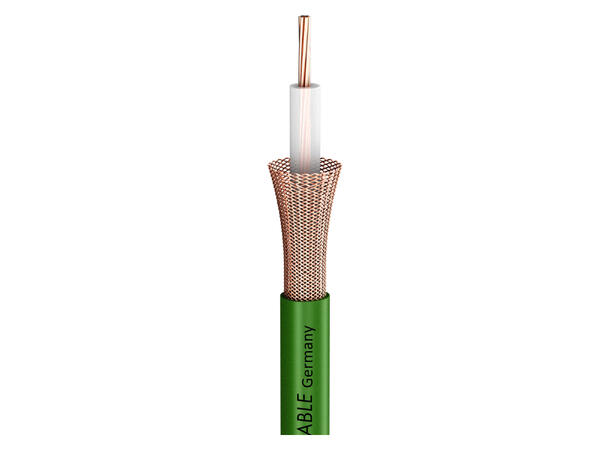

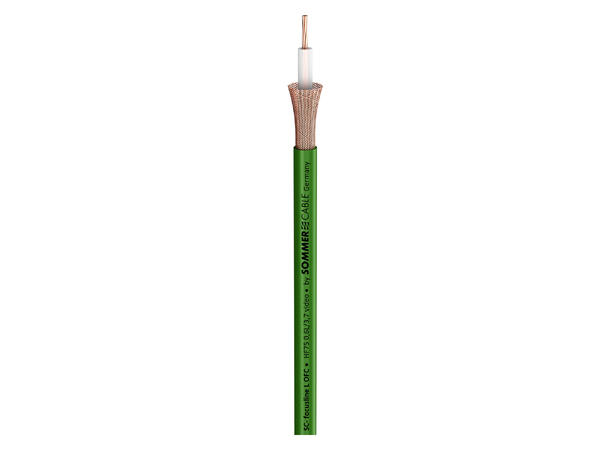

±1 %. Because it’s the precise ohmic value that matters! A lack of precision is the enemy of video transmission. This cable is used in video technology and is suitable for mobile applications as well as fixed installations. The green jacket colour indicates a wave impedance of 75 O with a ±1 % tolerance as required by broadcasting stations. Other than common video cables the SC-Focusline L is fitted with a soft, yet very durable jacket and a tightly stranded oxygen-free copper mesh.


Advantages:

  • Precise wave impedance of 75 O
  • Flexible and robust outer jacket
  • Available in green and black

Application:

  • Image processing in video technology
  • Cabling of viewing and surveillance monitors
  • Permanent installation in the broadcasting and television sectors
  • Data transmission
  • HF technology


Specifications:

Article number600-0054L
NameSC-Focusline L
EAN4049371004039
PropertiesAnalog
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Applicationvideo cable
Colourgreen
Colour detailedgreen
Construction02YS(ST)CH0,6/3,7
Jacket materialPVC
Jacket Ø mm6,20
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,22
Inner conductor Ø (video) mm0,60
AWG (video)23
ShieldingCopper braiding
Shielding factor %92
Copper strands (video)7
Copper strand Ø (video) mm0,20
Conductor insulation materialPE
Conductor insulation Ø mm3,70
Weight per 1 m g44
Fire load per m kWh0,23
Style variantround
Packing1000 m spool
Packing100 m spool
Velocity factor0,66
Temperature min. °C-20
Temperature max. °C70
Width mm6,2
Height mm6,2
Capacity wire/electic screen at 1m (video) pF67
Capacity wire/electic screen at 1 ft. (video) pF20,4216

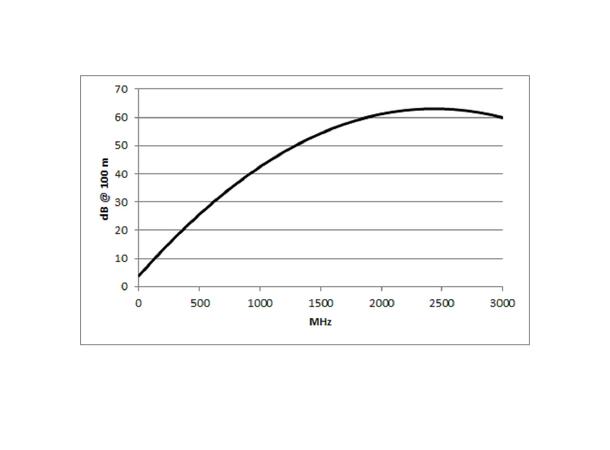

Damping at 5 MHz (100m & 20° C) dB2,5
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB0,762
Damping at 50 MHz (100m & 20° C) dB6,2
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB1,8898
Damping at 100 MHz (100m & 20° C) dB10,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB3,109
Damping at 200 MHz (100m & 20° C) dB13,1
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB3,9929
Impedance O75
Conductor resistance per 1 km O150
Conductor resistance per 1000 ft. O45,72
Shield. resistance per 1 km O13
Shield. resistance per 1000 ft. O3,9624
BPVo-EuroclassFca
