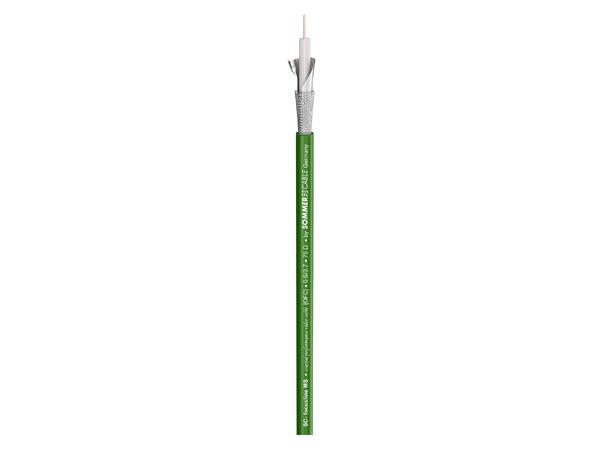

SOMMER Focusline M Videokabel

1 x 0,60, PVC FH Ø 6,20 mm, grønn

Varenr: 141701
Alt. varenr: 600-0054MS
24,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 1000m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

That’s it exactly...

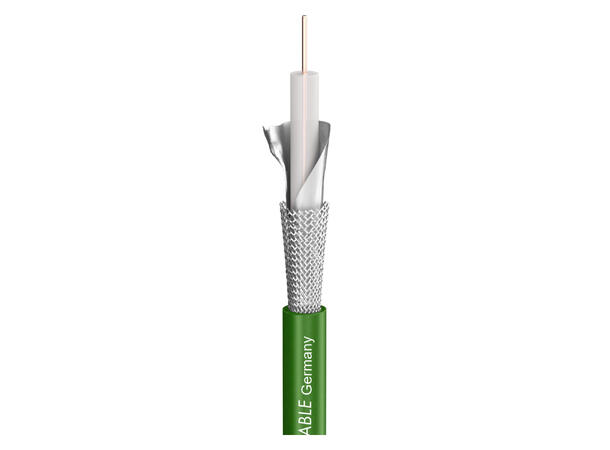

±1 %. Because it’s the precise ohmic value that matters! A lack of precision is the enemy of video transmission. This cable is used in video technology and is suitable for mobile applications as well as fixed installations. The green jacket colour indicates a wave impedance of 75 O with a ±1 % tolerance as required by broadcasting stations. Other than common video cables the SC-Focusline M is fitted with a soft, yet very durable jacket and a tightly stranded oxygen-free copper mesh.


Advantages:

  • Precise wave impedance of 75 O
  • Flexible and robust outer jacket
  • Available in green and black

Application:

  • Image processing in video technology
  • Cabling of viewing and surveillance monitors
  • Permanent installation in the broadcasting and television sectors
  • Data transmission
  • HF technology


Specifications:

Article number600-0054MS
NameSC-Focusline M
EAN4049371003520
PropertiesAnalog
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Applicationvideo cable
Colourgreen
Colour detailedgreen

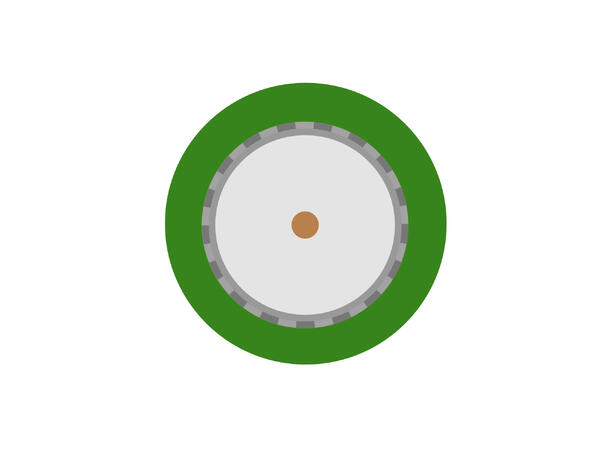

Construction02YS(ST)CH0,6/3,7
Jacket materialPVC, flame-retardant
Jacket material (video)FR-PVC
Jacket Ø mm6,20
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,28
Inner conductor Ø (video) mm0,60
AWG (video)23
ShieldingCopper braiding tin-plated + metalic fleece
Shielding factor %100
Copper strands (video)1
Copper strand Ø (video) mm0,60
Conductor insulation materialPE
Conductor insulation Ø mm3,70
Weight per 1 m g44
Fire load per m kWh0,23
Style variantround
Packing100 m spool
Packing1000 m spool
Velocity factor0,66
Temperature min. °C-30
Temperature max. °C70
Width mm6,2
Height mm6,2
Capacity wire/electic screen at 1m (video) pF67
Capacity wire/electic screen at 1 ft. (video) pF20,4216

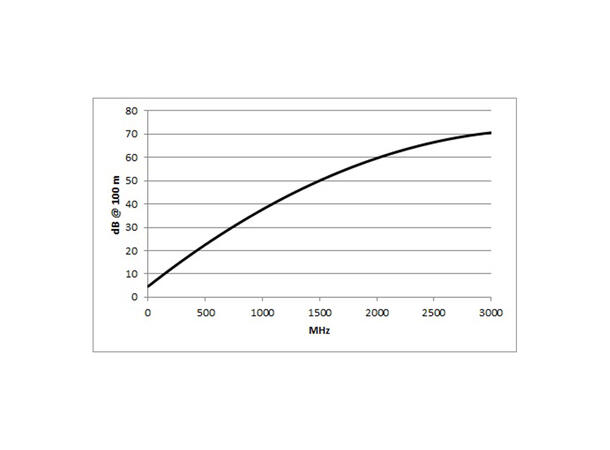

Damping at 5 MHz (100m & 20° C) dB2,2
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB0,6706
Damping at 50 MHz (100m & 20° C) dB7,3
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB2,225
Damping at 200 MHz (100m & 20° C) dB15,4
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB4,6939
Damping at 470 MHz (100m & 20° C) dB24,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB7,4676
Damping at 862 MHz (100m & 20° C) dB33,7
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB10,2718
Damping at 1000 MHz (100m & 20° C) dB37,2
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB11,3386
Impedance O75
Conductor resistance per 1 km O63,5
Conductor resistance per 1000 ft. O19,3548
Shield. resistance per 1 km O13
Shield. resistance per 1000 ft. O3,9624
BPVo-EuroclassFca
