SOMMER Focusline PUR Videokabel 1 x 0,67, PUR Ø 5,80 mm, sort SOMMER Focusline PUR Videokabel 1 x 0,67, PUR Ø 5,80 mm, sort SOMMER Focusline PUR Videokabel 1 x 0,67, PUR Ø 5,80 mm, sort SOMMER Focusline PUR Videokabel 1 x 0,67, PUR Ø 5,80 mm, sort

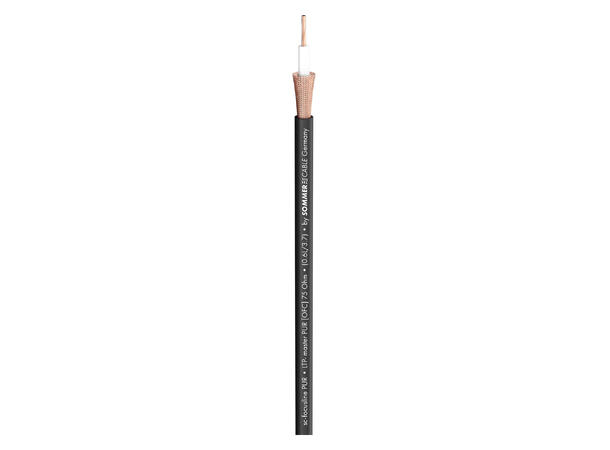

SOMMER Focusline PUR Videokabel

1 x 0,67, PUR Ø 5,80 mm, sort

Varenr: 141703
Alt. varenr: 600-0071L
37,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Pure enjoyment...

you can record it with this PUR video cable, regardless of the weather conditions.

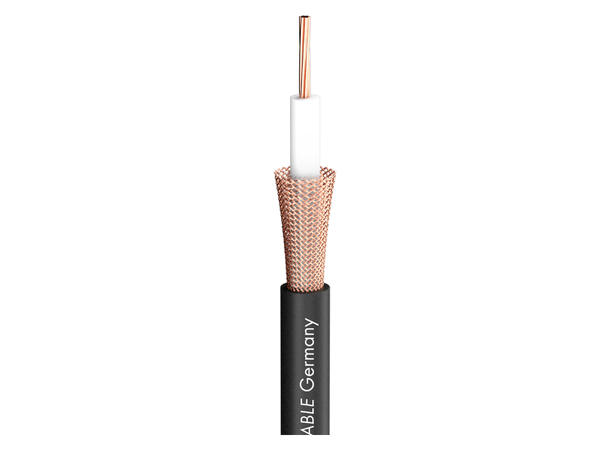

It is primarily used for outdoor video technology and suitable both for mobile applications and fixed installation. Contrary to the traditional video lines the SC-Focusline PUR has a cold-resistant and very sturdy PUR jacket and an oxygen-free copper mesh screen.


Advantages:

  • Precise wave impedance of 75 O
  • Cold-resistant and robust PUR outer jacket
  • Reelable cable for mobile outdoor use

Application:

  • Image processing in video technology
  • Cabling of viewing and surveillance monitors
  • Permanent installation in the broadcasting and television sectors
  • Data transmission for mobile outdoor applications


Specifications:

Article number600-0071L
NameSC-Focusline PUR
EAN4049371001335
PropertiesOFC oxygen free copper
PropertiesPUR
PropertiesHalogen-free / LSZH
PropertiesDigital 75 O
PropertiesAnalog
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Application areaStudio / Broadcast
Applicationvideo cable
Colourblack
Colour detailedblack

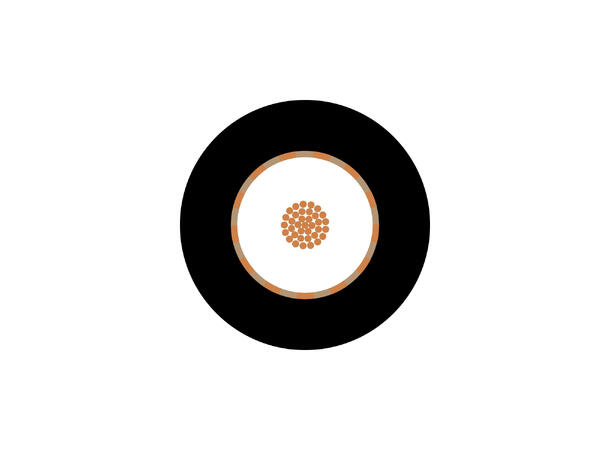

Construction02YS(ST)CH0,75/3,4
Jacket materialPUR
Jacket Ø mm5,80
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,35
Inner conductor Ø (video) mm0,67
AWG (video)22
ShieldingCopper braiding
Shielding factor %75
Copper strands (video)7
Copper strand Ø (video) mm0,25
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm3,40
Weight per 1 m g30
UV-resistantyes
Style variantround
Packing100 m spool
Velocity factor0,8
Temperature min. °C-30
Temperature max. °C80
Width mm5,8
Height mm5,8
Capacity wire/electic screen at 1m (video) pF55
Capacity wire/electic screen at 1 ft. (video) pF16,764

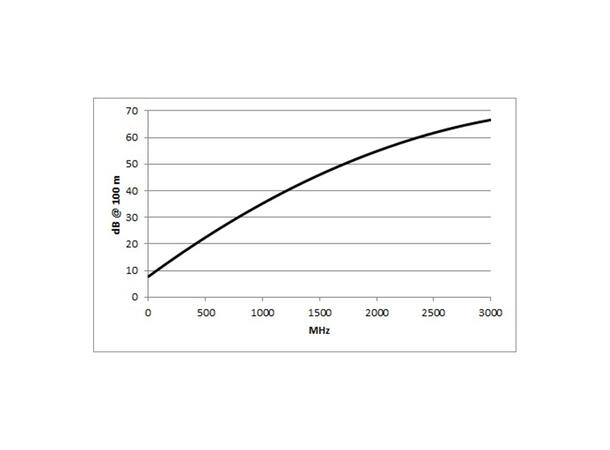

Damping at 50 MHz (100m & 20° C) dB7,5
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB2,286
Damping at 100 MHz (100m & 20° C) dB9,9
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB3,0175
Damping at 200 MHz (100m & 20° C) dB14,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB4,5415
Damping at 470 MHz (100m & 20° C) dB21,6
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB6,5837
Damping at 862 MHz (100m & 20° C) dB31,8
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB9,6926
Damping at 1000 MHz (100m & 20° C) dB35,8
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB10,9118
Damping at 1485 MHz (100m & 20° C) dB43,6
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB13,2893
Damping at 3000 MHz (100m & 20° C) dB67
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB20,4216
Impedance O75
Conductor resistance per 1 km O53
Conductor resistance per 1000 ft. O16,1544
Shield. resistance per 1 km O25,4
Shield. resistance per 1000 ft. O7,7419
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
