SOMMER Vector Plus RCB Videokabel 1 x 1,60, FRNC Ø 10,20 mm, grønn, Dca SOMMER Vector Plus RCB Videokabel 1 x 1,60, FRNC Ø 10,20 mm, grønn, Dca SOMMER Vector Plus RCB Videokabel 1 x 1,60, FRNC Ø 10,20 mm, grønn, Dca SOMMER Vector Plus RCB Videokabel 1 x 1,60, FRNC Ø 10,20 mm, grønn, Dca

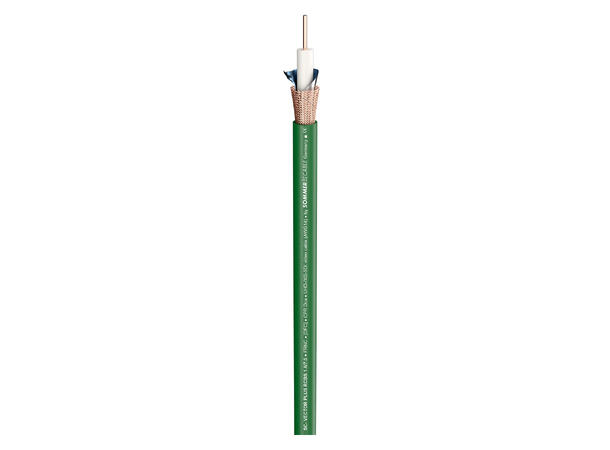

SOMMER Vector Plus RCB Videokabel

1 x 1,60, FRNC Ø 10,20 mm, grønn, Dca

Varenr: 141729
Alt. varenr: 600-0234FC
84,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
  • 1000m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Simultaneous translators...

are true multitasking artists who expertly master the art to listen, translate and voice the translated content all at once. With the HD-SDI transmission, too, additional data such as 16 frame synchronous digital audio channels (AES-3 according to SMPTE 272M and 299M), timecode control data and error checking packages may be embedded alongside the 1080p high-resolution video signal transfer. This will spare you extra audio or control lines. For the high 3G-SDI bandwidths (2.97 Gbit/s according to SMPTE 424M), our 3G-SDI cable series is the perfect means of transport. Ultra-low damping values below 30 dB @ 2.97 Gbit/s are provided by
the large 1.6 OFC inner conductor with its special gas injected skin-foamskin insulation plus dual shielding. The solid wire version is the perfect choice for professional media-technical installations in TV studios and broadcasting vans, while the reelable litz wire version can shine at mobile transmissions with its flexible benefits.


Advantages:

  • Long life due to non-aging jacket
  • Constant optimised electrical values owing to intelligent cable design
  • Gas injected skin-foam-skin insulation for optimal damping values and long distances

Application:

  • Digital HD-SDI and 3G-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
  • Professional media-technical permanent installation according to 3G standard


Specifications:

NameSC-Vector Plus RCB
EAN4049371392761
PropertiesHalogen-free / LSZH
PropertiesOFC oxygen free copper
PropertiesSDI
PropertiesAnalog
PropertiesFRNC flame retardant
Properties3G-SDI / UHD
PropertiesHDTV
PropertiesDigital 75 O
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Applicationvideo cable
Colourgreen
Colour detailedgreen

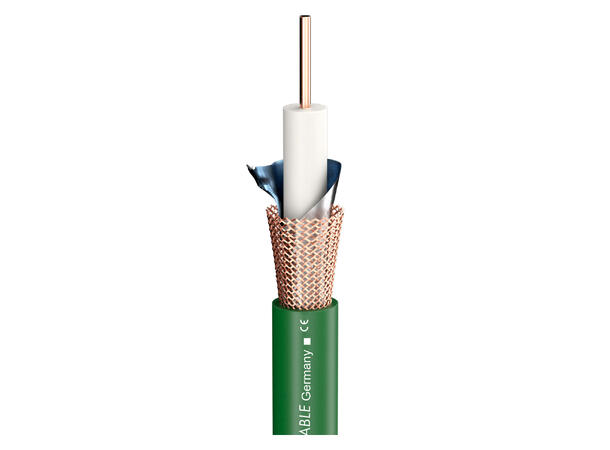

Construction02YS(ST)CH1,6L/7
Jacket materialFRNC
Jacket Ø mm10,20
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²2,01
Inner conductor Ø (video) mm1,60
AWG (video)14
ShieldingCopper braiding tin-plated + AL / PT foil
Shielding factor %100
Copper strands (video)1
Copper strand Ø (video) mm1,60
Conductor insulation materialGas Injected-PE
Conductor insulation Ø mm7,00
Weight per 1 m g120
Fire load per m kWh0,73
Style variantround
Packing100 m spool
Packing500 m spool
Packing1000 m spool
Velocity factor0,8
Temperature min. °C-25
Temperature max. °C30

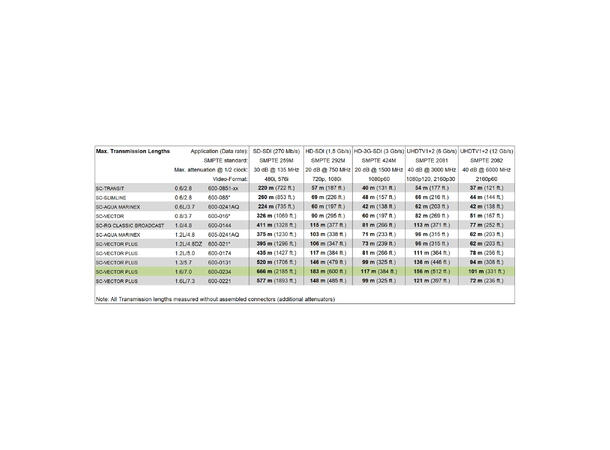

Max. Transmission length (3G-SDI) m240
Max. Transmission length (6G-SDI) m120
Width mm10,2
Height mm10,2
Capacity wire/electic screen at 1m (video) pF53
Capacity wire/electic screen at 1 ft. (video) pF16,1544

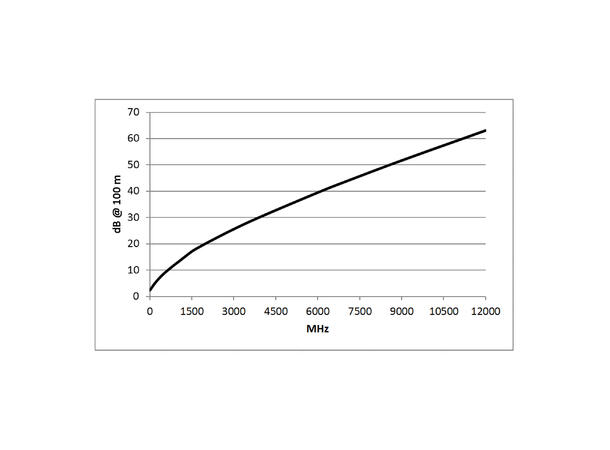

Damping at 200 MHz (100m & 20° C) dB5,3
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB1,6154
Damping at 470 MHz (100m & 20° C) dB8,4
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB2,5603
Damping at 862 MHz (100m & 20° C) dB11,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB3,6271
Damping at 1000 MHz (100m & 20° C) dB13
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB3,9624
Damping at 1485 MHz (100m & 20° C) dB17
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB5,1816
Damping at 1750 MHz (100m & 20° C) dB18,7
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB5,6998
Damping at 2150 MHz (100m & 20° C) dB19,4
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB5,9131
Damping at 3000 MHz (100m & 20° C) dB25,6
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB7,8029
Damping at 6000 MHz (100m & 20° C) dB39,5
Damping at 9000 MHz (100m & 20° C) dB51,7
Damping at 12000 MHz (100m & 20° C) dB63,1
Impedance O75
Shield. resistance per 1 km O10
Shield. resistance per 1000 ft. O3,048
BPVo-EuroclassDca
