Advantages:
- Solid outer jacket and robust inner structure (PE insulation)
- Cable reel rollable
- Cost-efficient underwater variant
- Useable in great water depths
- Cold flexible
Application:
- Video cable for permanent installation in shipbuilding, tunnel construction or in sports arenas
- Flexible video cable for the camera supply line on dive sessions
- High-quality phono/audio line for AF transmission
Specifications:
| Article number | 600-0241AQ |
|---|

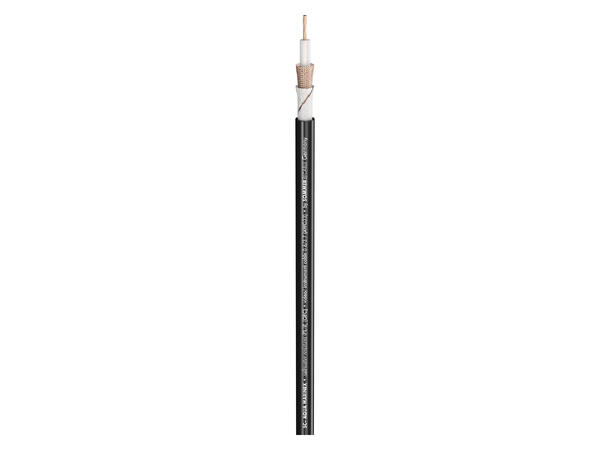

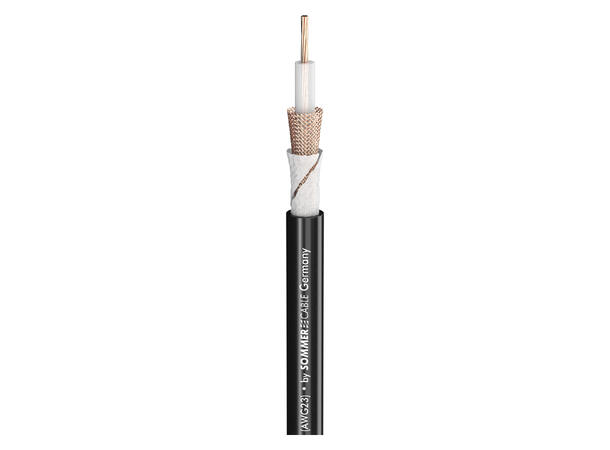

| Name | SC-AQUA MARINEX VIDEO 0.6L/3.7 |
|---|
| EAN | 4049371194464 |
|---|
| Properties | PUR |
|---|
| Properties | Halogen-free / LSZH |
|---|
| Properties | Underwater / submerged |
|---|
| Properties | Analog |
|---|
| Properties | Digital 75 O |
|---|
| Application area | Stage / live |
|---|
| Application area | ELA 100 V |
|---|
| Application area | Installation |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application | RG59 & Phono |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Jacket material | PUR-SR |
|---|
| Jacket Ø mm | 6,40 |
|---|
| Number of Channels (video) | 1 |
|---|
| Inner conductor (video) | 1 |
|---|
| Inner conductor (video) mm² | 0,22 |
|---|
| Inner conductor Ø (video) mm | 0,60 |
|---|
| AWG (video) | 23 |
|---|
| Shielding | Copper braiding + special protective banding |
|---|
| Shielding factor % | 90 |
|---|
| Copper strands (video) | 7 |
|---|
| Copper strand Ø (video) mm | 0,20 |
|---|
| Conductor insulation material | PO |
|---|
| Conductor insulation Ø mm | 3,30 |
|---|
| Conductor insulation Ø (video) mm | 3,30 |
|---|
| Weight per 1 m g | 51 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,3 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Velocity factor | 0,66 |
|---|
| Temperature min. °C | -40 |
|---|
| Temperature max. °C | 80 |
|---|
| Width mm | 6,4 |
|---|
| Height mm | 6,4 |
|---|
| Capacity wire/electic screen at 1m (video) pF | 70 |
|---|
| Capacity wire/electic screen at 1 ft. (video) pF | 21,336 |
|---|
| Impedance O | 75 |
|---|
| Conductor resistance per 1 km O | 89 |
|---|
| Conductor resistance per 1000 ft. O | 27,1272 |
|---|
| Conductor resistance per 1 km (video) O | 89 |
|---|
| Conductor resistance per 1000 ft. (video) O | 27,1272 |
|---|
| Shield. resistance per 1 km O | 12,5 |
|---|
| Shield. resistance per 1000 ft. O | 3,81 |
|---|
| BPVo-Euroclass | Fca |
|---|
