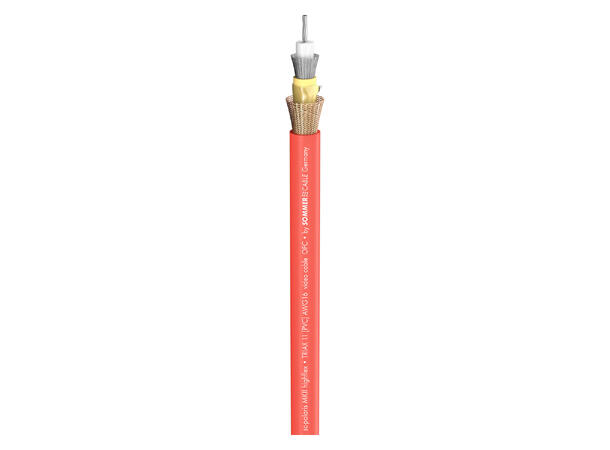

SOMMER Polaris MKII Videokabel 1 x 1,22, PVC Ø 11,00 mm, rød SOMMER Polaris MKII Videokabel 1 x 1,22, PVC Ø 11,00 mm, rød SOMMER Polaris MKII Videokabel 1 x 1,22, PVC Ø 11,00 mm, rød

SOMMER Polaris MKII Videokabel

1 x 1,22, PVC Ø 11,00 mm, rød

Varenr: 141740
Alt. varenr: 600-0313
116,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Shivering with cold...

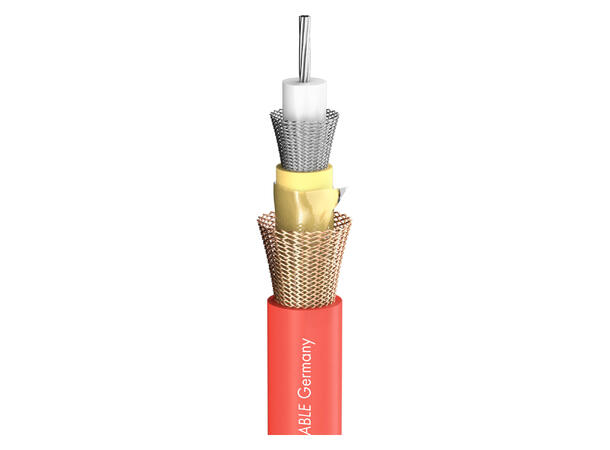

is something that images shouldn’t do. This is why the cable has to be extremely cold-resistant so that the pictures will actually get through to you. The SC-POLARIS has the accurate wave impedance of 75 O (±1%) and the typical dual cross mesh shielding. The second screen is used to supply power to the camera.


Advantages:

  • Extremely robust due to special outer jacket
  • Precise wave impedance of 75 O ±1 %
  • Low damping values and excellent image signal transmission
  • Dense cross mesh screen
  • Copper strand silver-plated

Application:

  • Electrical connection of video camera and image transmission systems
  • Connection between camera head, controls and amplifier


Specifications:

Article number600-0313
NameSC-Polaris MKII
EAN4049371001557
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Applicationcamera cable
Colourred
Colour detailedred
Construction02YSC2YC11Y 1,4
Jacket materialPVC
Jacket Ø mm11,00
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²1,17
Inner conductor Ø (video) mm1,22
AWG (video)18
Shielding2x cross mesh, 1x silver-pl.
Shielding factor %95
Copper strands (video)16
Copper strand Ø (video) mm0,28
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm6,50
Weight per 1 m g148
Style variantround
Packingbulk stock
Temperature min. °C-20
Temperature max. °C80
Width mm11
Height mm11
Capacity wire/electic screen at 1m (video) pF54
Capacity wire/electic screen at 1 ft. (video) pF16,4592

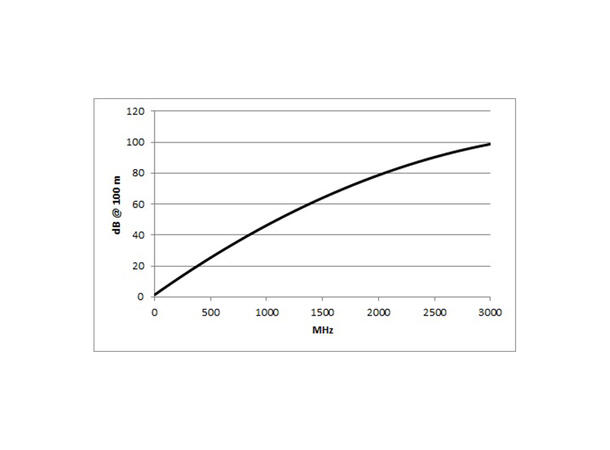

Damping at 50 MHz (100m & 20° C) dB4
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB1,2192
Damping at 100 MHz (100m & 20° C) dB6,5
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB1,9812
Damping at 200 MHz (100m & 20° C) dB11,4
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB3,4747
Damping at 470 MHz (100m & 20° C) dB24
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB7,3152
Damping at 862 MHz (100m & 20° C) dB40,7
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB12,4054
Damping at 1000 MHz (100m & 20° C) dB46,3
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB14,1122
Damping at 1485 MHz (100m & 20° C) dB63,4
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB19,3243
Damping at 1750 MHz (100m & 20° C) dB71,8
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB21,8846
Damping at 2150 MHz (100m & 20° C) dB82,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB25,146
Damping at 3000 MHz (100m & 20° C) dB98,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB30,1142
Impedance O75
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
