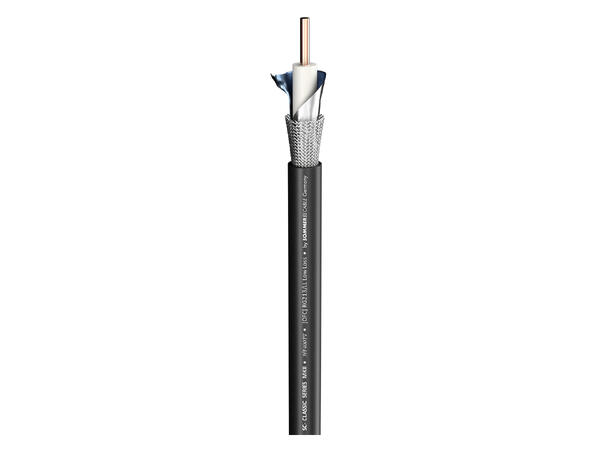

SOMMER Classic Series MKII LL Videokabel 1 x 2,74, PE Ø 10,30 mm, sort SOMMER Classic Series MKII LL Videokabel 1 x 2,74, PE Ø 10,30 mm, sort

SOMMER Classic Series MKII LL Videokabel

1 x 2,74, PE Ø 10,30 mm, sort

Varenr: 141752
Alt. varenr: 600-0551HF
94,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Dance at all parties...

this cable can do it. Just look at the many applications! And our RG cables are famous for their aging resistance and durability. RG (radio guide) cables have either one or two cross mesh screens, designed according to the American MIL-C-17 standard. This standard originally developed for the army, guarantees excellent and consistent manufacturing quality and durability. RG cables have been created for a vast number of applications in high frequency technology, electronics, and data transmission.


Advantages:

  • Low Loss
  • Extremely long life due to age-resistant jacket
  • Consistent and precise electrical values
  • Easy handling
  • Suitable for all standardised connectors

Application:

  • Data transmission
  • HF technology
  • Antenna construction
  • For fixed installations
  • Hifi connections
  • Computer technology


Specifications:

Article number600-0551HF
NameSC-Classic Series MKII Low Loss
EAN4049371357203
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaELA 100 V
Application areaStudio / Broadcast
Application areaInstallation
ApplicationHF400TT
ApplicationRG/U Coax
Colourblack
Colour detailedblack

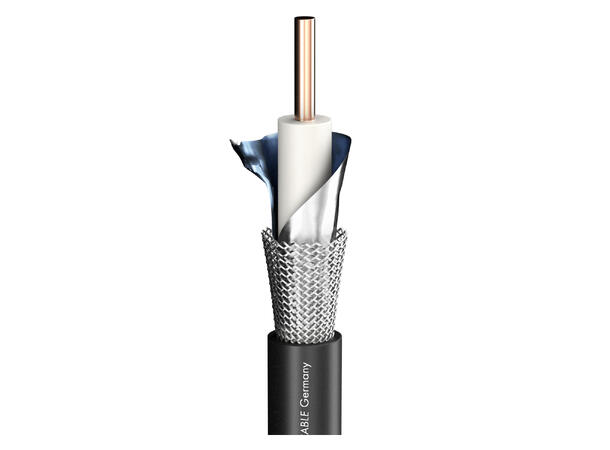

Construction02YS(ST)CY
Jacket materialPE
Jacket Ø mm10,30
Number of Channels (video)1
Inner conductor (video)1
Inner conductor Ø (video) mm2,74
AWG (video)10
ShieldingCopper braiding tin-plated + AL / PT foil
Shielding factor %100
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm7,25
Weight per 1 m g107
UV-resistantyes
Fire load per m kWh0,71
Style variantround
Packing500 m spool
Packing100 m ring
Velocity factor0,84
Temperature min. °C-40
Temperature max. °C75
RG-TypeRG213/LL
RG-TypeHF400TT
Width mm10,3
Height mm10,3
Capacity wire/electic screen at 1m (video) pF80
Capacity wire/electic screen at 1 ft. (video) pF24,384
Damping at 100 MHz (100m & 20° C) dB3,6
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB1,0973
Damping at 200 MHz (100m & 20° C) dB5,3
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB1,6154
Damping at 470 MHz (100m & 20° C) dB8,8
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB2,6822
Damping at 862 MHz (100m & 20° C) dB12,3
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB3,749
Damping at 1000 MHz (100m & 20° C) dB13,2
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB4,0234
Damping at 1485 MHz (100m & 20° C) dB16,5
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB5,0292
Damping at 1750 MHz (100m & 20° C) dB18,7
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB5,6998
Damping at 2150 MHz (100m & 20° C) dB21
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB6,4008
Damping at 3000 MHz (100m & 20° C) dB25,1
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB7,6505
Impedance O50
BPVo-EuroclassFca
