SOMMER Classic Control Videokabel video/control, PVC Ø 10,50 mm, sort

SOMMER Classic Control Videokabel

video/control, PVC Ø 10,50 mm, sort

Varenr: 141753

Alt. varenr: 600-0481-2075

39,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

For curious people...

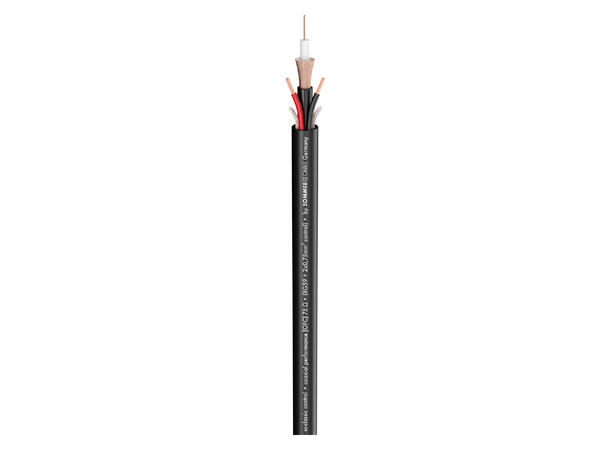

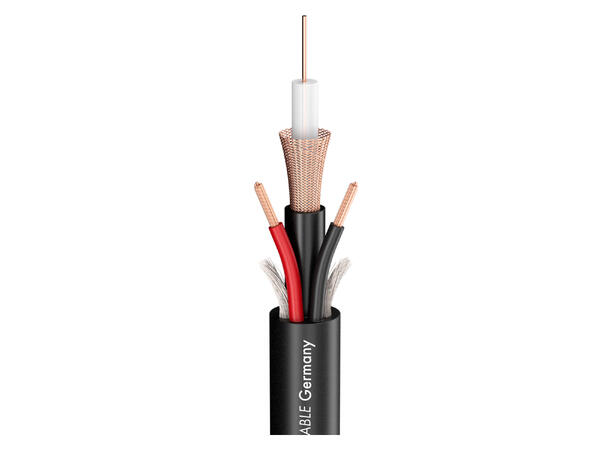

we have developed this cable. It contains a high-quality RG 59 video line and two additional insulated wires in one jacket. The SC-Classic Control is suitable for connecting surveillance monitors, where the 2 x 0,75 mm² are used as check back line. The cable has a robust PVC jacket which is ideal for outdoor installation.
Because of its design, this cable is oval and thus cannot be reeled.

Advantages:

cable and control line in one cable
Very durable and rugged due to high-quality PVC jacket
Very easy handling and reasonably priced

Application:

Connection of surveillance monitors
Studio and fixed installations

Specifications:

	1
Article number	600-0481-2075
Name	SC-Classic Control
EAN	4049371002448
Properties	Digital 75 O
Properties	OFC oxygen free copper
Properties	Analog
Application area	Installation
Application	RG59 & Control
Colour	black
Colour detailed	black

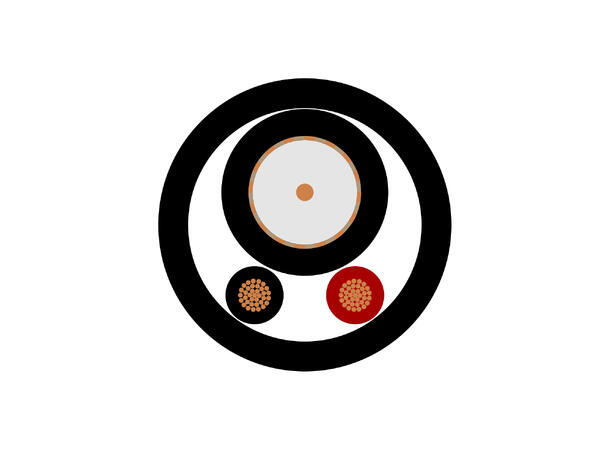

Construction	LI02YSC12Y0,60mm+2(2LI2Y0,75mm²)Y
Construction (video)	LI02YSC12Y0,60mm
Construction (control)	2(2LI2Y0,75mm²)Y
Jacket material	PVC
Jacket Ø mm	10,50
Jacket Ø (video) mm	0,00
Jacket Ø (control) mm	0,00
Number of Channels (video)	1
Number of Channels (control)	2
Inner conductor (video)	1
Inner conductor (video) mm²	0,28
Inner conductors (control) mm²	0,75
Inner conductor Ø (video) mm	0,60
Inner conductor Ø (control) mm	0,98
AWG (video)	23
AWG (control)	18
Shielding (video)	Copper braiding
Shielding factor %	90
Copper strands (video)	1
Copper strands (control)	0
Copper strand Ø (video) mm	0,60
Wire insulation material (video)	PE
Wire insulation material (control)	PVC
Conductor insulation Ø (video) mm	3,70
Weight per 1 m g	122
UV-resistant	yes
Fire load per m kWh	0,3
Style variant	oval
Packing	bulk stock
Velocity factor	0,66
Temperature min. °C	-20
Temperature max. °C	70
Width mm	10,5
Height mm	8,5
Capacity wire/electic screen at 1m (video) pF	67
Capacity wire/electic screen at 1 ft. (video) pF	20,4216
Capacity wire/electic screen at 1m (control) pF	67
Capacity wire/electic screen at 1 ft. (control) pF	20,4216

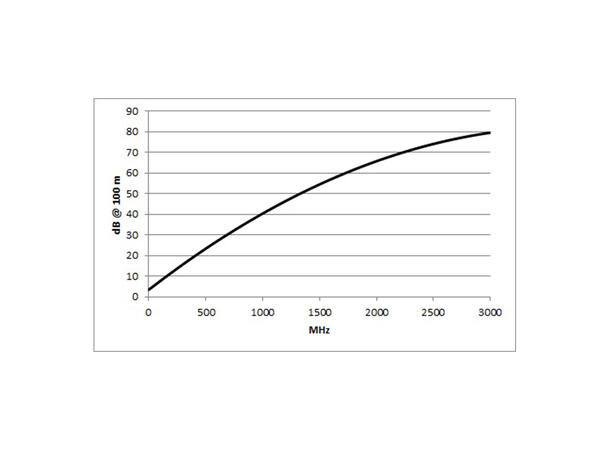

Damping at 5 MHz (100m & 20° C) dB	2,5
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB	0,762
Damping at 50 MHz (100m & 20° C) dB	5,6
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	1,7069
Damping at 100 MHz (100m & 20° C) dB	7,7
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB	2,347
Damping at 200 MHz (100m & 20° C) dB	11,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	3,5966
Damping at 470 MHz (100m & 20° C) dB	22,3
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	6,797
Damping at 862 MHz (100m & 20° C) dB	36
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	10,9728
Damping at 1000 MHz (100m & 20° C) dB	40,4
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	12,3139
Damping at 1485 MHz (100m & 20° C) dB	54
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	16,4592
Damping at 1750 MHz (100m & 20° C) dB	60,5
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	18,4404
Damping at 2150 MHz (100m & 20° C) dB	68,6
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	20,9093
Impedance O	75
Conductor resistance per 1 km O	150
Conductor resistance per 1000 ft. O	45,72
BPVo-Euroclass	Fca
