SOMMER Cinema-SV Videokabel

2 x 0,32, PVC Ø 7,50 mm, sort

Varenr: 141757
Alt. varenr: 600-0701
49,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
200m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Video killed the radio star...

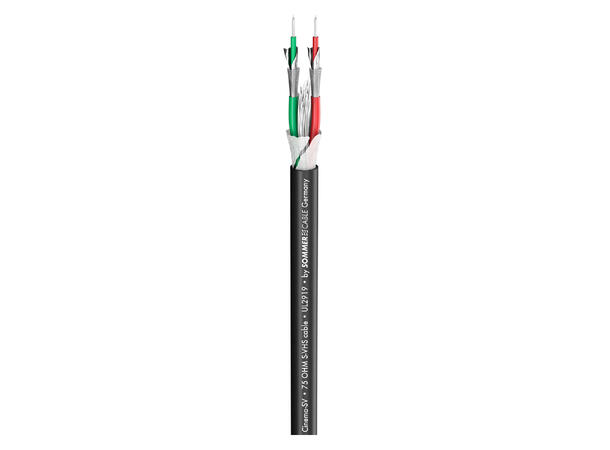

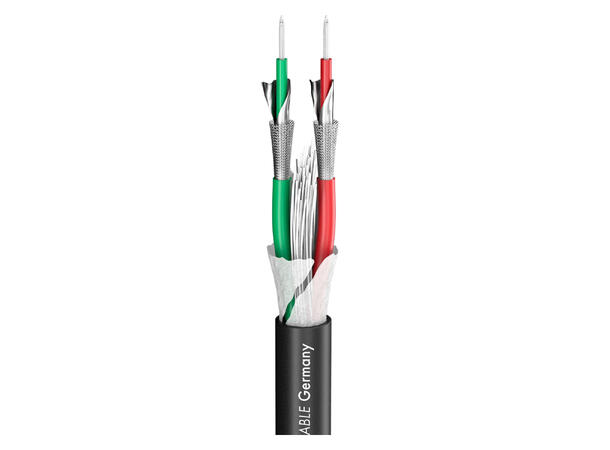

The prophecy of that Buggles pop song has not (yet) come true – but still: already today a good picture goes hand in hand with good sound, Meanwhile, the S-video standard is an integral part of the good picture for all cameras, computers, audio, video, and TV end devices. A lossfree high-quality connection of these components is crucial for the picture quality. Especially with high-grade components the Cinema-SV can shine with its constant wave impedance of 75 O. The robust PVC jacket is very flexible and protects two coaxial lines, each of which is embedded in a coloured fleece-banded PVC sleeve. Each wire is individually shielded by a cross mesh and an AL compound foil. Both the litz wires and the mesh screen are tinned.
The Cinema-SV is the ideal connection line for the upper S-video standard.


Advantages:

  • Easy and safe installation due to the robust and flexible outer jacket
  • Dependable, high-quality transmission of S-video signals
  • Good shielding due to single mesh screen plus AL compound foil

Application:

  • Video and monitor cable for higher demands
  • For connection of high quality components
  • Mobile application and fixed installation


Specifications:

Article number600-0701
NameCinema-SV
EAN4049371000581
PropertiesAnalog
PropertiesDigital 75 O
Application areaMobile outdoor / indoor
Application areaInstallation
Application areaStudio / Broadcast
Applicationvideo cable
Colourblack
Colour detailedblack

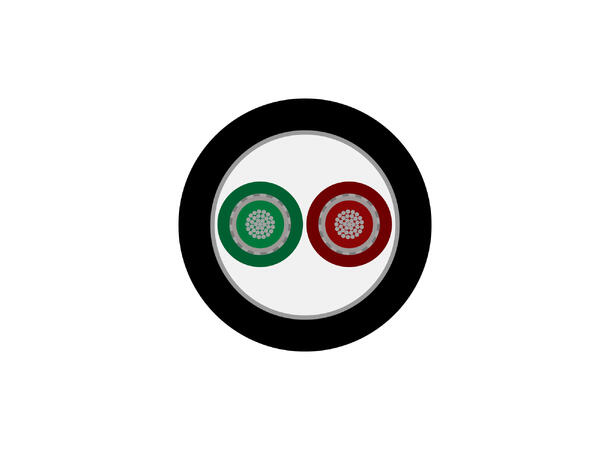

Construction2LI2Y0,32mm(ST)CYY
Jacket materialPVC
Jacket Ø mm7,50
Number of Channels (video)2
Inner conductor (video)1
Inner conductor (video) mm²0,08
Inner conductor Ø (video) mm0,32
AWG (video)28
ShieldingCopper braiding tin-plated + AL-compound foil
Shielding factor %100
Copper strands (video)7
Copper strand Ø (video) mm0,12
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,60
Weight per 1 m g68
UV-resistantyes
Style variantround
Packing200 m spool
Temperature min. °C-15
Temperature max. °C70
Width mm7,5
Height mm7,5
Capacity wire/electic screen at 1m (video) pF64
Capacity wire/electic screen at 1 ft. (video) pF19,5072

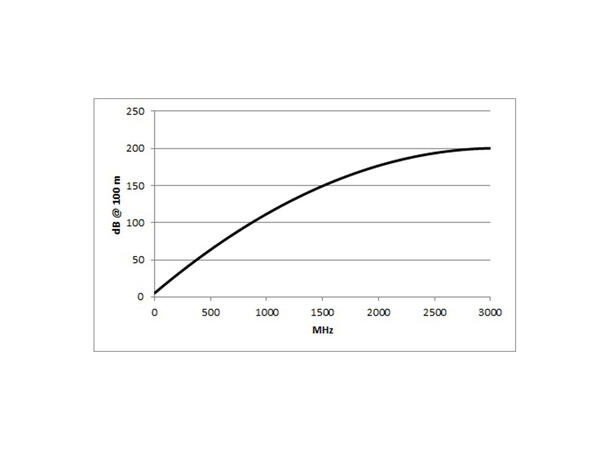

Damping at 5 MHz (100m & 20° C) dB4,3
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB1,3106
Damping at 50 MHz (100m & 20° C) dB16,6
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB5,0597
Damping at 100 MHz (100m & 20° C) dB22,5
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB6,858
Damping at 200 MHz (100m & 20° C) dB30,6
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB9,3269
Damping at 470 MHz (100m & 20° C) dB60,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB18,4404
Damping at 862 MHz (100m & 20° C) dB99,3
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB30,2666
Impedance O75
BPVo-EuroclassFca
