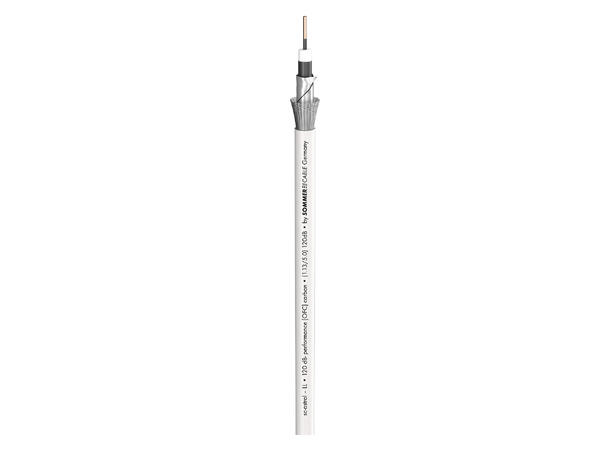

SOMMER Astral-LLX Videokabel

1 x 1,13, PVC Ø 6,80 mm, hvit

Varenr: 141774
Alt. varenr: 600-0960LLX
40,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

As old as Methuselah...

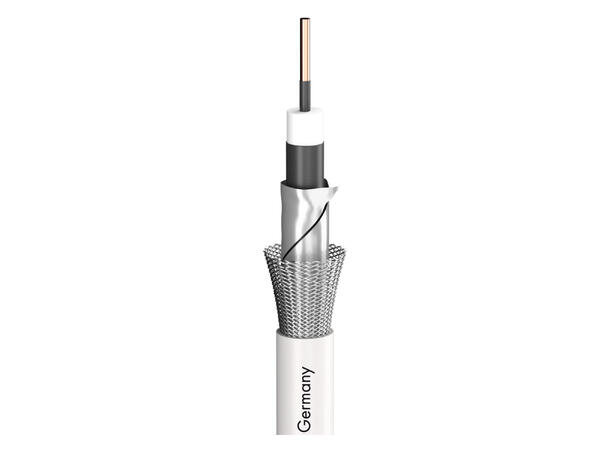

but as fit and good-looking as a young lad. The SC-Astral-LLX has a patented construction of carbon screens around solid wire and insulation plus a protective polyester foil underneath the PVC outer jacket. This prevents material fatigue and results in consistent damping values for years to come. Conventional SAT cables usually lose their good damping values during installation and assembly: the original round shape of the skin PE insulation becomes oval and the solid conductor loses its centre position even with only slight bendings. The two carbon screens of the SC-Astral-LLX stabilise the solid conductor and the skin PE insulation. Thus the cable maintains its round shape and electrical values, even after installation. This type of construction also enabled us to achieve super low damping values and a shielding factor of 120 dB! Hence the SC-Astral-LLX also meets the HDSDI standard and is suitable for long installation distances on large SAT receiving systems.


Advantages:

  • Excellent transmission quality and damping values
  • Consistent values even after installation for decades due to patented anti-aging construction

Application:

  • High-end cable for broadband cable TV and digital SAT equipment
  • For professional HDTV applications


Specifications:

Article number600-0960LLX
NameSC-Astral-LLX
EAN4049371001694
PropertiesHalogen-free / LSZH
PropertiesDigital 75 O
PropertiesAnalog
PropertiesOFC oxygen free copper
PropertiesFRNC flame retardant
PropertiesSDI
Application areaStudio / Broadcast
Application areaInstallation
ApplicationSAT-cable HD, 120dB, longlife
Colourwhite
Colour detailedwhite

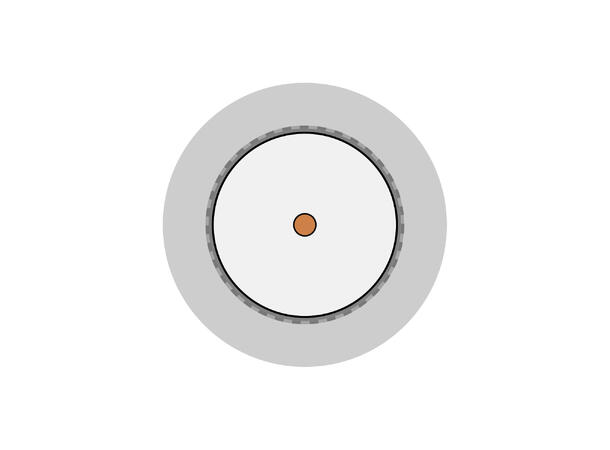

Construction(1.13/5.0) 120 dB
Jacket materialPVC
Jacket Ø mm6,80
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²1,00
Inner conductor Ø (video) mm1,13
AWG (video)17
ShieldingCopper braiding tin-pl. + ALfoil + 2 x semiconductor
Shielding factor %100
Copper strands (video)1
Copper strand Ø (video) mm1,13
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm5,00
Weight per 1 m g70
Fire load per m kWh0,24
Style variantround
Packing500 m spool
Packing100 m ring
Temperature min. °C-20
Temperature max. °C70
Width mm6,8
Height mm6,8

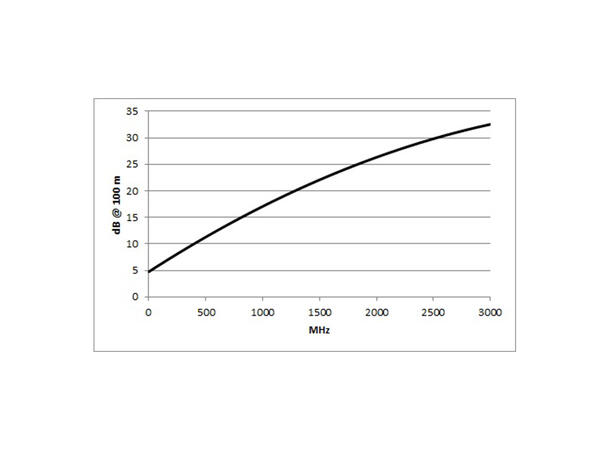

Damping at 100 MHz (100m & 20° C) dB5,5
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB1,6764
Damping at 200 MHz (100m & 20° C) dB7,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB2,286
Damping at 470 MHz (100m & 20° C) dB10,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB3,3223
Damping at 862 MHz (100m & 20° C) dB15,5
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB4,7244
Damping at 1000 MHz (100m & 20° C) dB17,5
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB5,334
Damping at 1485 MHz (100m & 20° C) dB21,9
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB6,6751
Damping at 1750 MHz (100m & 20° C) dB24,5
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB7,4676
Damping at 2150 MHz (100m & 20° C) dB27
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB8,2296
Damping at 3000 MHz (100m & 20° C) dB33
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB10,0584
Impedance O75
BPVo-EuroclassFca
