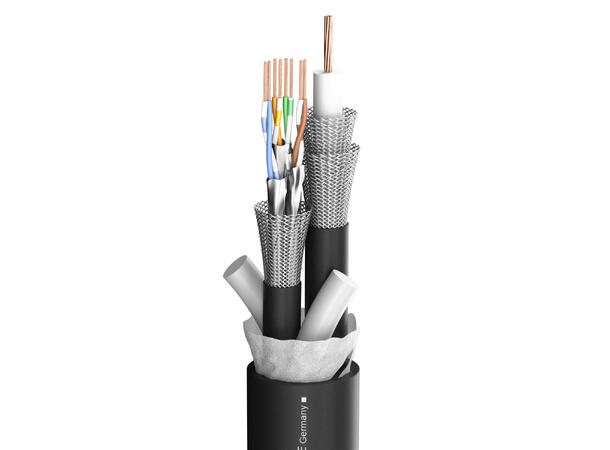

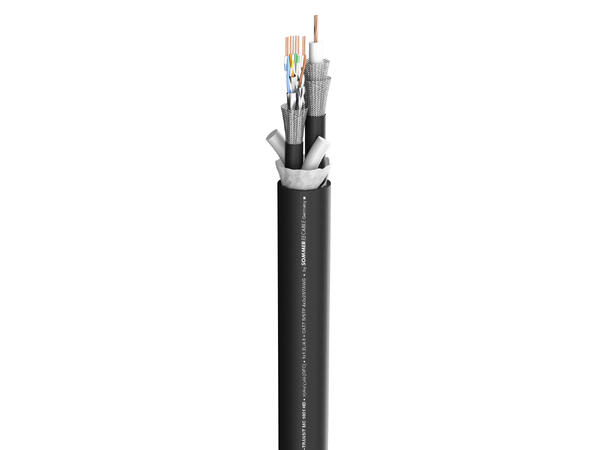

SOMMER Transit MC 1001 HD Videokabel 1 x 1,06/4,80, S-PVC FH Ø 19,50 mm

SOMMER Transit MC 1001 HD Videokabel

1 x 1,06/4,80, S-PVC FH Ø 19,50 mm

Varenr: 141777

Alt. varenr: 600-1001

267,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

75 på lager i Oslo

100 på eksternlager (1 dag levering)

Beskrivelse

Article number	600-1001
Name	TRANSIT MC 1001 HD
EAN	4049371362320
Colour	Black

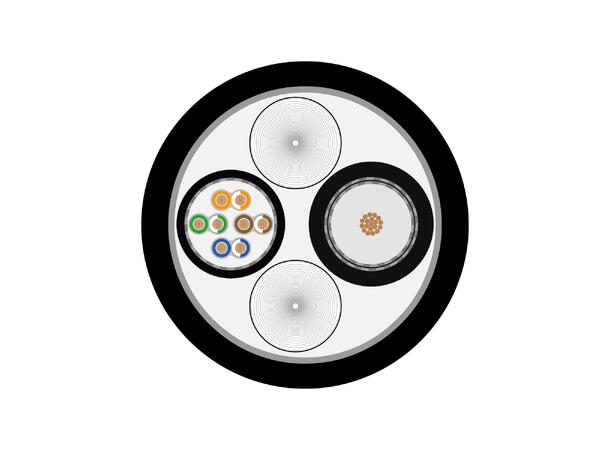

Construction	(02YSCCH1.2L/4.8)+(S/FTP4x2xAWG23/7)Y
Construction (video)	(02YCCH1.2L/4.8)
Construction (network)	(S/FTP4x2xAWG23/7)
Jacket material	S-PVC flame-retardant
Jacket material (video)	PUR
Jacket material (network)	PUR
Jacket Ø mm	19,50
Jacket Ø (video) mm	7,10
Jacket Ø (network) mm	8,50
Number of Channels (video)	1
Number of Channels (network)	4
Inner conductor (video)	1
Inner conductor (network)	2
Inner conductor (video) mm²	0,88
Inner conductor (network) mm²	0,26
Inner conductor Ø (video) mm	1,06
AWG (video)	18
AWG (network)	23
Shielding (video)	2 x Copper braiding tinned
Shielding (network)	Tin-plated Cu braid + AL/PT foil per wire pair
Shielding factor %	100
Copper strands (video)	7
Copper strands (network)	7
Copper strand Ø (video) mm	0,40
Copper strand Ø (network) mm	0,22
Wire insulation material (video)	Foam/Skin-PE
Conductor insulation Ø (video) mm	4,80
Weight per 1 m g	210
Fire load per m kWh	1,52
Packing	bulk stock
Temperature min. °C	-20
Temperature max. °C	70
Capacity wire/electic screen at 1m (video) pF	53
Capacity wire/electic screen at 1 ft. (video) pF	16,1544
Damping at 200 MHz (100m & 20° C) dB	9,4
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	2,8651
Damping at 470 MHz (100m & 20° C) dB	14,7
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	4,4806
Damping at 862 MHz (100m & 20° C) dB	20,4
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	6,2179
Damping at 1000 MHz (100m & 20° C) dB	21,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	6,6751
Damping at 1485 MHz (100m & 20° C) dB	27,2
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	8,2906
Damping at 1750 MHz (100m & 20° C) dB	29,9
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	9,1135
Damping at 2150 MHz (100m & 20° C) dB	33,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	10,2108
Damping at 3000 MHz (100m & 20° C) dB	40,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	12,4358
Impedance (video) O	75
Impedance (network) O	100
BPVo-Euroclass	Fca
