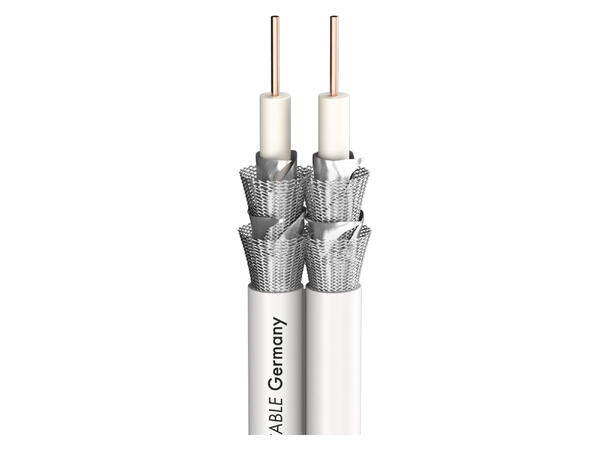

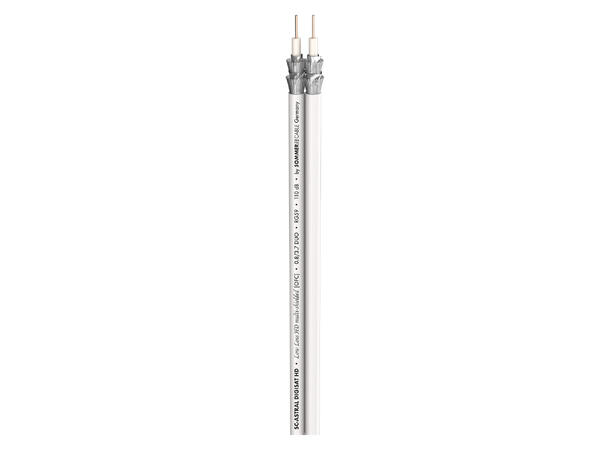

SOMMER Astral HD/UHD Videokabel 2 x 0,80, PVC SOMMER Astral HD/UHD Videokabel 2 x 0,80, PVC SOMMER Astral HD/UHD Videokabel 2 x 0,80, PVC

SOMMER Astral HD/UHD Videokabel

2 x 0,80, PVC

Varenr: 141794
Alt. varenr: 601-0960
37,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

All in white...

this is how our new generation of high-quality digital SAT cables steps up. For this line we have implemented the latest manufacturing techniques like we also employ them in our professional broadcasting video cables. They feature a gas-injected insulation which has been given a “double skin“ insulation smoothing treatment to guarantee constantly excellent attenuation and shielding values as well as low transfer impedances. Due to the DECT mobile phone technology, WLAN and the German E-network which use the same gigahertz range as various TV programmes, a clean, tight shielding is indispensable to avoid interference from electro-magnetic interference fields. The employed foils are overlapping and AL/PT coated to prevent them from tearing in case of stretching or temperature fluctuations.
We use a high-quality Class 6N oxygen-free copper (OFC 99.9999%) which – given a competent laying – is oxidation resistant. During the cable making process it can be drawn much more cleanly, which in turn has an influence on the electrical values and guarantees low tolerances as to the wave impedance. The high-quality S-PVC outer jacket is age-proof, moisture-repellent and has a very easy-to-fit construction.


Advantages:

  • Inner conductor of solid, oxygen-free copper (OFC Class 6N)
  • High shielding factor, triple or quad shielding, low transfer impedances
  • Gas-injected insulation, smoothed, heavy-duty AL/PT foil
  • Trouble-free digital signal transmission with SAT/broadband cable/terrestrial systems
  • Robust and flexible
  • Simple and easy mounting

Application:

  • Professional satellite technology for indoor and outdoor applications
  • Permanent installation in building and monitoring technology


Specifications:

Article number601-0960
NameSC-ASTRAL HD/UHD
EAN4049371268943
BrandSommer cable
PropertiesDigital 75 O
PropertiesHalogen-free / LSZH
PropertiesAnalog
PropertiesOFC oxygen free copper
PropertiesSDI/HD-SDI
PropertiesIn-ground / burial
Application areaInstallation
Application areaStudio / Broadcast
Application areaELA 100 V
ApplicationSAT-CABLE HD/UHD/DIGI PRO SERIES
Colourwhite
Jacket materialPVC
Number of Channels (video)2
Inner conductor (video)1
Inner conductor Ø (video) mm0,80
AWG (video)20

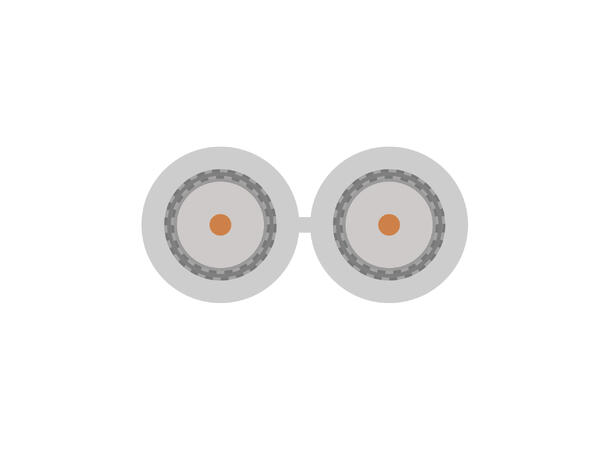

ShieldingCu mesh, tinned + AL foil + 2nd cu mesh, tinned + 2nd AL foil
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm3,70
Weight per 1 m g85
Fire load per m kWh0,35
Style varianttwin
Packing100 m
Packing500 m
Temperature min. °C-25
Temperature max. °C70
RG-TypeRG59
Width mm13
Height mm5,6
Capacity wire/electic screen at 1m (video) pF55
Capacity wire/electic screen at 1 ft. (video) pF16,764
Damping at 100 MHz (100m & 20° C) dB7,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB2,1946
Damping at 200 MHz (100m & 20° C) dB11,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB3,5966
Damping at 470 MHz (100m & 20° C) dB17,8
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB5,4254
Damping at 862 MHz (100m & 20° C) dB25,7
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB7,8334
Damping at 1000 MHz (100m & 20° C) dB28,7
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB8,7478
Damping at 1750 MHz (100m & 20° C) dB38,6
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB11,7653
Impedance O75
BPVo-EuroclassFca
