Deep sea doesn’t mean “deep look“ …
Advantages:

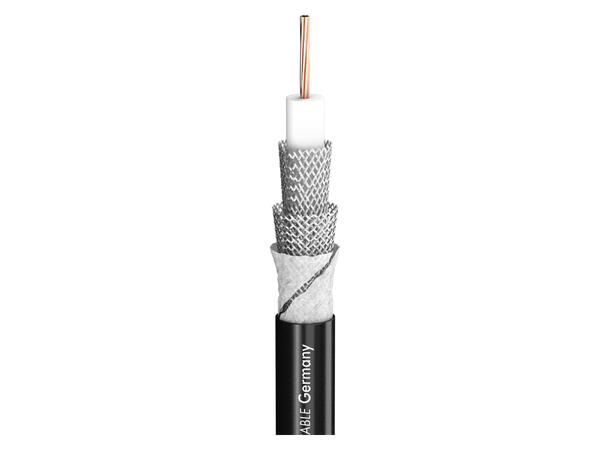

- Solid outer jacket and double Cu mesh screen
- Reelable and high number of bending cycles
- Useable in great water depths
- Cold-flexible due to special HD-PUR jacket
- No-compromise mechanical and electrical line quality

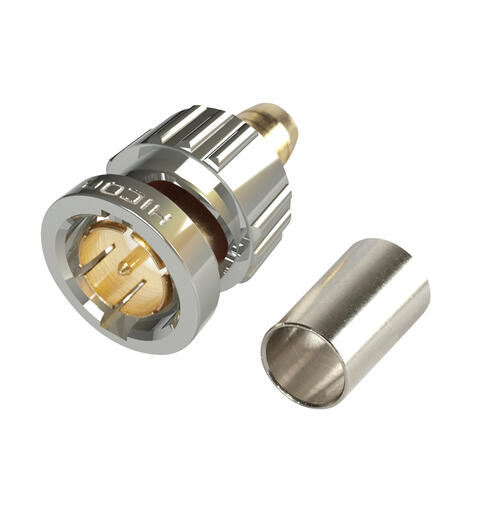

- Useable with common 1.2/4.8 BNC connectors
Application:
- HD-SDI video cable for permanent installation in boat-building, tunnel construction or in sport arenas
- Flexible HD-SDI video cable as camera supply line with dive sessions
- High-quality phono/audio line for AF transmission
- High-resolution picture transmission e.g. for use in sediment technology
Specifications:
| Article number | 605-0241AQ |
|---|
| Name | SC-AQUA MARINEX VIDEO 1.2L/4.8 |
|---|
| EAN | 4049371194471 |
|---|
| Properties | SDI |
|---|
| Properties | Halogen-free / LSZH |
|---|
| Properties | Digital 75 O |
|---|
| Properties | Analog |
|---|
| Properties | PUR |
|---|
| Properties | Underwater / submerged |
|---|
| Properties | HDTV |
|---|
| Application area | Installation |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Stage / live |
|---|
| Application area | ELA 100 V |
|---|
| Application | video cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Jacket material | PUR-SR |
|---|
| Jacket Ø mm | 7,40 |
|---|
| Number of Channels (video) | 1 |
|---|
| Inner conductor (video) | 1 |
|---|
| Inner conductor (video) mm² | 0,88 |
|---|
| Inner conductor Ø (video) mm | 1,06 |
|---|
| AWG (video) | 18 |
|---|

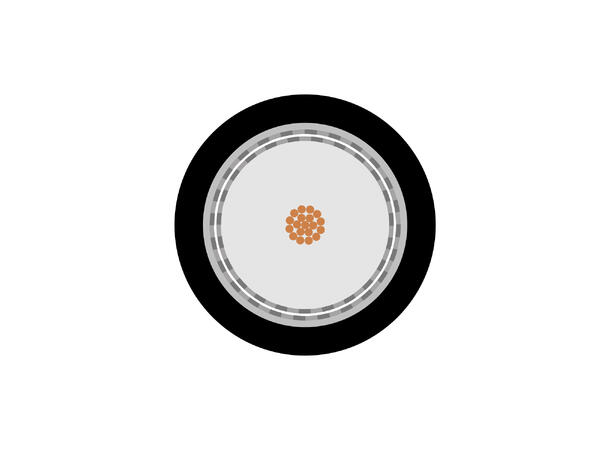

| Shielding | 2 x Copper braiding + special protective banding |
|---|
| Shielding factor % | 90 |
|---|
| Copper strands (video) | 7 |
|---|
| Copper strand Ø (video) mm | 0,40 |
|---|
| Conductor insulation material | PO |
|---|
| Conductor insulation Ø mm | 4,80 |
|---|
| Weight per 1 m g | 81 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,38 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Temperature min. °C | -40 |
|---|
| Temperature max. °C | 80 |
|---|

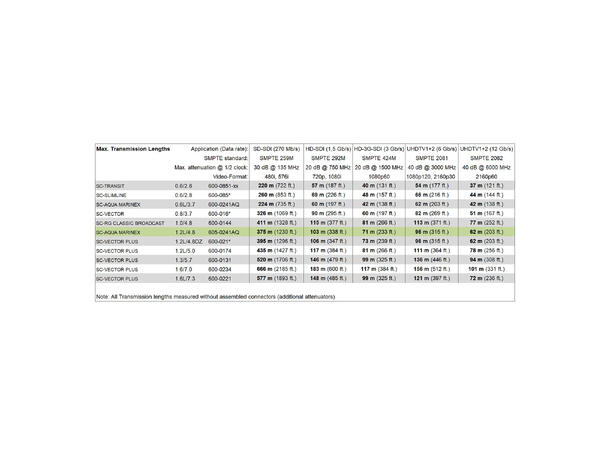

| Max. transmission distance (HD-SDI) m | 150 |
|---|
| Max. Transmission length (3G-SDI) m | 100 |
|---|
| Max. Transmission length (6G-SDI) m | 40 |
|---|
| Width mm | 7,4 |
|---|
| Height mm | 7,4 |
|---|
| Capacity wire/electic screen at 1m (video) pF | 52 |
|---|
| Capacity wire/electic screen at 1 ft. (video) pF | 15,8496 |
|---|
| Damping at 200 MHz (100m & 20° C) dB | 9,3 |
|---|
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB | 2,8346 |
|---|
| Damping at 470 MHz (100m & 20° C) dB | 14,2 |
|---|
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB | 4,3282 |
|---|
| Damping at 862 MHz (100m & 20° C) dB | 21,6 |
|---|
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB | 6,5837 |
|---|
| Damping at 1000 MHz (100m & 20° C) dB | 24 |
|---|
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB | 7,3152 |
|---|
| Damping at 1485 MHz (100m & 20° C) dB | 28,1 |
|---|
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB | 8,5649 |
|---|
| Damping at 1750 MHz (100m & 20° C) dB | 30,3 |
|---|
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB | 9,2354 |
|---|
| Damping at 2150 MHz (100m & 20° C) dB | 33,5 |
|---|
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB | 10,2108 |
|---|
| Damping at 3000 MHz (100m & 20° C) dB | 41,6 |
|---|
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB | 12,6797 |
|---|
| Impedance O | 75 |
|---|
| Conductor resistance per 1 km O | 23 |
|---|
| Conductor resistance per 1000 ft. O | 7,0104 |
|---|
| Shield. resistance per 1 km O | 4,95 |
|---|
| Shield. resistance per 1000 ft. O | 1,5088 |
|---|
| BPVo-Euroclass | Fca |
|---|
