A well-rounded matter...
Configuration:
50,00 m DMX Binary 234 AES/EBU MKII; 2 x 0,34 mm²; PVC Ø 6,20 mm; black (520-0051)

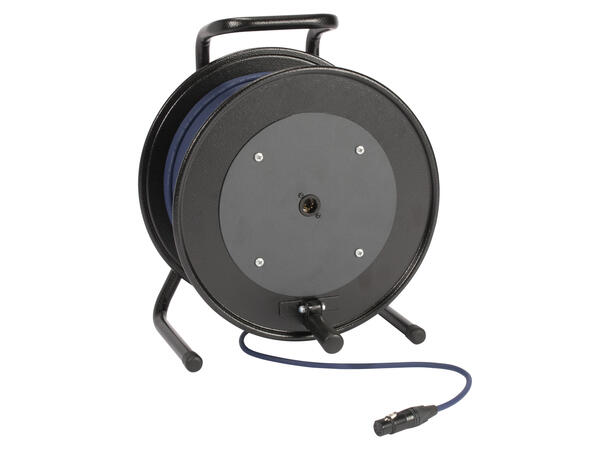

1 x SCHILL Kabeltrommel, HT300K-SW, core: 178 mm, thread width: 142 mm, metal (HT300K-SW)
1 x NEUTRIK XLR, 5-pol , metal-, Soldering-male connector, gold plated contact(s), Type D, chrome-plated (NC5MDLX-B)
1 x Sommer cable Front panel with 1 D-hole (XLR, etc.) for GT310, HT and SK-Modelle, anthracite RAL7016 (RUND01)

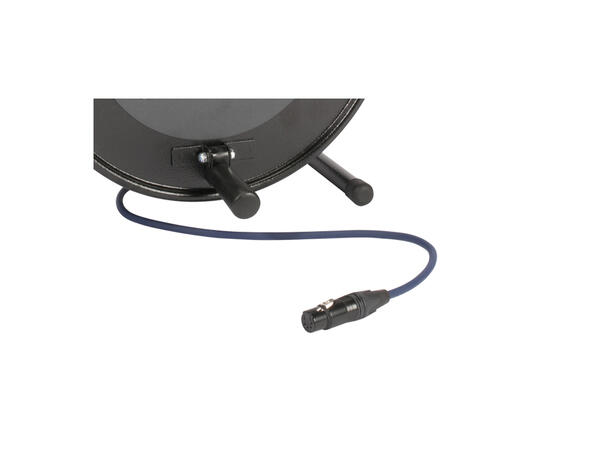

1 x NEUTRIK XLR, 5-pol , metal-, Soldering-female connector, gold plated contact(s), straight, chrome-plated (NC5FXX-B)
Specifications:
| Article number | B2E6H5000-SW |
|---|
| EAN | 4049371022415 |
|---|
| Colour | black |
|---|
| Length m | 50 |
|---|
| Old article number | BYE6H2-5000-SW |
|---|
| Article number | B2E6H |
|---|
| Name | Binary 234 AES/EBU MKII |
|---|
| Brand | Sommer cable |
|---|
| Application | AES / EBU / DMX512 |
|---|
| Inner conductor | 2 |
|---|
| Inner conductor mm² | 0,34 |
|---|
| AWG | 22 |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Additional function | on cable spool |
|---|
| Type | XLR |
|---|
| Type (detailed) | XLR 5-pole female |
|---|
| Type (detailed) | XLR 5-pole male |
|---|
| Old article number | BYE6H2 |
|---|
