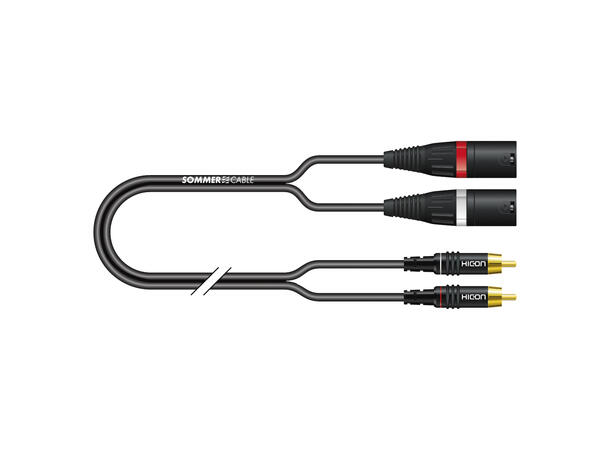

High-quality patch cabling for the broadcasting and OB van technology sector. We supply an excellent quality with a NC3MX-B cable connector and two gold-plated HICON HI-CM06-WHT/HI-CM06-RED phono connectors. These are genuine goldplated, PTFE-insulated and have a very dependable clamping strain relief. For easier identification the RCA/phono connectors are colour-coded in red or white.
Configuration:
5,00 m Patch & Instrument Cable SC-Onyx 2025 MKII; 2 x 1 x 0,25 mm²; PVC; 8,3 x 3,8 mm; black (320-0101)
2 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, chrome-plated (NC3MX-B)
1 x NEUTRIK Code ring for XLR MX, XLR FX white (XCR9)
1 x NEUTRIK Code ring for XLR MX, XLR FX red (XCR2)
1 x HI-CM06-NTL-D
1 x HI-CM06-RED-D
1 x Cardboard packaging for blister hooks, Design Sommer cable
Specifications:
| Length ft | 16,4 |
|---|
| Article number | ON2Y-0500-SW |
|---|
| EAN | 4049371041898 |
|---|
| Colour | black |
|---|
| Length m | 5 |
|---|
| Article number | ON2Y |
|---|
| Name | SC-Onyx |
|---|
| Brand | Sommer cable |
|---|
| Application | Y-Patch / adapter cable |
|---|
| Inner conductor | 1 |
|---|
| Inner conductor mm² | 0,25 |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Connector-Brand | HICON |
|---|
| Type | RCA |
|---|
| Type | XLR |
|---|
| Type (detailed) | XLR 3-pole male, Gold contact |
|---|
| Type (detailed) | RCA male |
|---|
