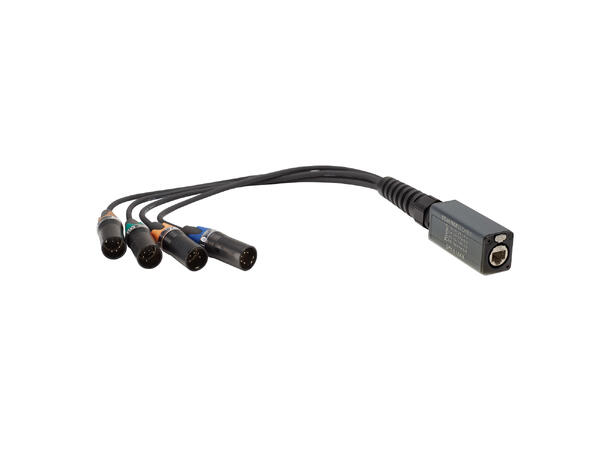

SOMMER SPY-E1251 Adapter

1 X NE8FDX til 4 x NC5MXX

Varenr: 145578

Alt. varenr: SPY-E1251

2 360,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

ETHERCON-SPLICE ADAPTER

With the splice adapters shown here this can be realised now in a rugged form . For this purpose we employ our robust and very flexible SC-SEMICOLON 2 digital patch line in combination with NEUTRIK EtherCon and XLR connectors . The RJ45 socket sits in a solid metal housing which also contains the cable screw joint . In the typical SOMMER style the channel numbers are fixed clearly readable on the connectors.

Channel 1 = Pin 4+5
Channel 2 = Pin 3+6
Channel 3 = Pin 1+2
Channel 4 = Pin 7+8

Configuration:

Specifications:

Article number	SPY-E1251
EAN	4049371251457
Brand	Sommer cable
Application	Adapter cable
Colour	black
Colour detailed	black
Inner conductor	8
Inner conductor mm²	0,22
Connector-Brand	NEUTRIK
Type	XLR
Type	Ethercon splice adapter
Type (detailed)	EtherCON NE8FDX
Type (detailed)	XLR 5-pole male
Length m	0,5
Matchcode	SPY-1NE8F-4NC5MXX
