NB! bildet viser 8 inn/4ut versjon. Dette artikkelnummeret har 12 XLR innAdvantages:
- Floor or wall mount
- Seperate Grounding
- TOURLOCK connectors with high water resistance (max. depth 10 m for 12 h)
- High rigidity and mating cycles (> 2000)
- Gold-plated contacts and bayonet catch without play
- Universal compatibility
Application:
- Professional event technology
- Indoor and Outdoor Installation
- Ambitious rack, floor or wall installations
Configuration:

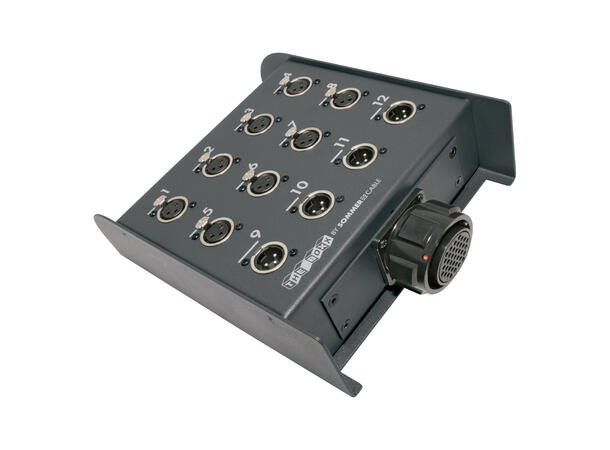

1 x SOMMER CABLE Stagebox empty casing, THE BOXX, 12 x hole D-type / output multipin 16/24/37 universal, width: 195 mm, height: 261 mm, anthracite RAL7016 (TBH12-MK3)
12 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), Type D M3, nickel coloured (NC3FDLX-M3)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Panel connector, Bajonet, black (HI-LK037MP)
1 x HICON Round-LK 37 male (CIR28), Cover cap, Bajonet, black (HI-LKCAP-M37)
Specifications:
| Article number | XXW3-M12/00 |
|---|
| EAN | 4049371060455 |
|---|
| In | 12 |
|---|
| Out | 00 |
|---|
| Configuration | separate grounding |
|---|
| Article number | THEBOXX-LK |
|---|
| Name | THE BOXX MK III with installation round LK |
|---|
| Application | THE BOXX -> Round-LK-connector |
|---|
| Additional function | seperate grounding |
|---|
| Width mm | 195 |
|---|
| Height mm | 80 |
|---|
| Depth mm | 211 |
|---|
| Old article number | XXWY-M |
|---|
