The cable with the feel-good factor...

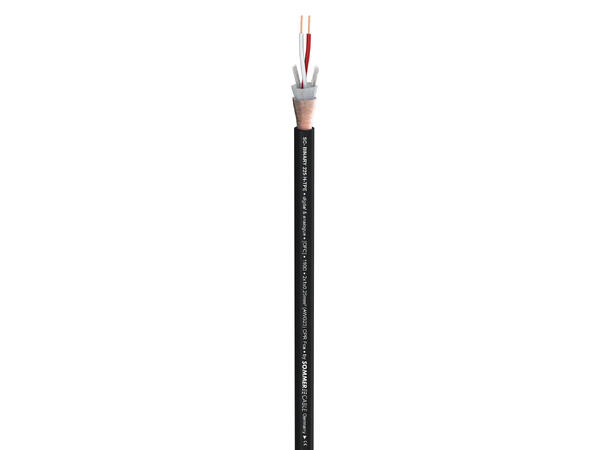

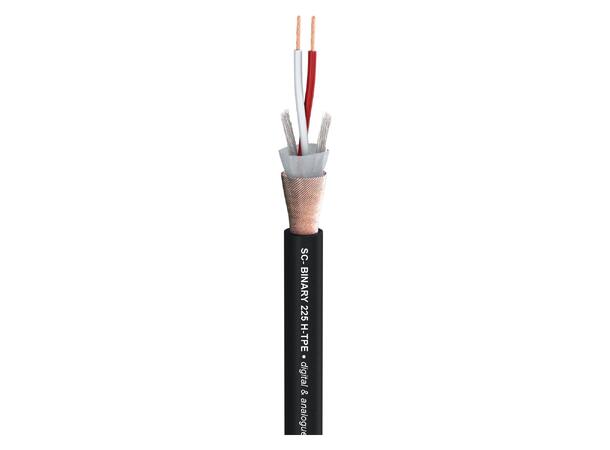

whose surface is so soft that it literally invites you to cuddle it. However, it is even better suited as a highly flexible, mobile and cold-resistant microphone, AES/EBU and DMX cable!The hard-wearing and halogen-free soft HTPE jacket guarantees pleasant handling, easy winding, low-stretch winding and unwinding and is ideal for moving applications as well as indoor and outdoor installation.The 6.7 mm thick outer jacket is also highly water-repellent and UV-resistant and prevents unintentional knotting or slipping of the wire pairs. The SC-BINARY 225 Soft-HTPE is double-shielded by an aluminized fleece and a dense CU braid. We use a supple class 6N copper (OFC99.9999%), which guarantees an incredibly high number of bending cycles and an enormously long life expectancy. The soft HTPE jacket specially developed for SOMMER Cable is biologically harmless, easily degradable and recyclable.
Advantages:
- Highly flexible, sustainable, and biologically safe sheath made of SOFT-HTPE
- Halogen-free
- Water-repellent and UV-resistant
- Finish with the preferred rubber/silicone feel
- Extremely cold-flexible, even in motion (-20°C)
Application:
- High-quality, highly flexible microphone cable with 110?Ohm characteristic impedance
- Connection of digital audio devices via AES3 (AES/EBU)
Specifications:
| Article number | 520-0051F |
|---|
| Name | Binary 234 AES/EBU MKII |
|---|
| EAN | 4049371002356 |
|---|
| Properties | Analog |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | FRNC flame retardant |
|---|
| Properties | Halogen-free / LSZH |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | ELA 100 V |
|---|
| Application area | Stage / live |
|---|
| Application area | Installation |
|---|
| Application | DMX |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|

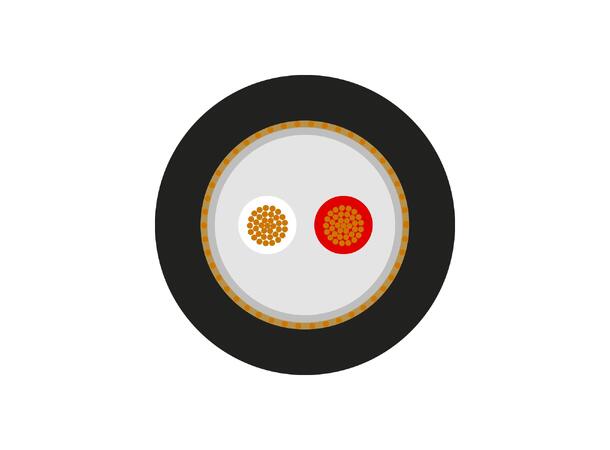

| Construction | (2LI2Y0,34mm²)(ST)DY |
|---|
| Jacket material | FRNC |
|---|
| Jacket Ø mm | 5,60 |
|---|
| Number of Channels (AES/EBU, DMX) | 1 |
|---|
| Inner conductor (AES/EBU, DMX) | 2 |
|---|
| Inner conductor (AES/EBU, DMX) mm² | 0,34 |
|---|
| Inner conductor Ø (AES/EBU, DMX) mm | 0,66 |
|---|
| AWG (AES/EBU, DMX) | 22 |
|---|
| Shielding | Copper spiral shielding + aluminum steamed fleece |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (AES/EBU, DMX) | 19 |
|---|
| Copper strand Ø (AES/EBU, DMX) mm | 0,15 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Conductor insulation Ø mm | 1,50 |
|---|
| Weight per 1 m g | 43 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,17 |
|---|
| Style variant | round |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -25 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 5,6 |
|---|
| Height mm | 5,6 |
|---|
| Capac. cond./cond. per 1 m (AES/EBU, DMX) pF | 63 |
|---|
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF | 19,2024 |
|---|
| Capac. cond./shield. per 1 m (AES/EBU, DMX) pF | 115 |
|---|
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF | 35,052 |
|---|
| Impedance O | 110 |
|---|
| Insulation resist. per 1 km GO | 1 |
|---|
| Insulation resist. per 1000 feet GO | 0,3048 |
|---|
| Insulation resist. per 1 km (AES/EBU, DMX) GO | 1 |
|---|
| Insulation resist. per 1000 feet (AES/EBU, DMX) GO | 0,3048 |
|---|
| Conductor resistance per 1 km O | 53 |
|---|
| Conductor resistance per 1000 ft. O | 16,1544 |
|---|
| Shield. resistance per 1 km O | 28 |
|---|
| Shield. resistance per 1000 ft. O | 8,5344 |
|---|
| BPVo-Euroclass | Fca |
|---|
