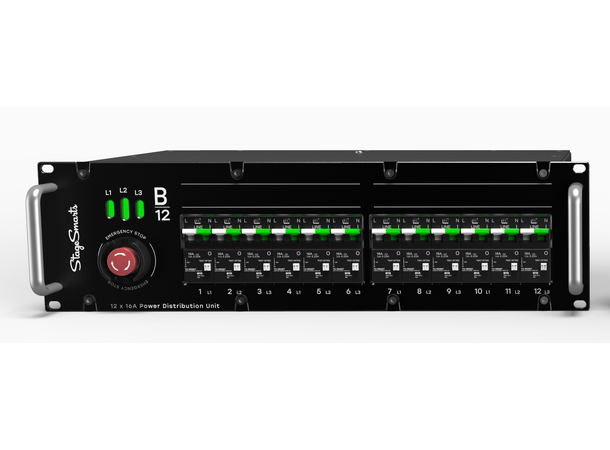

The B12 is a twelve-channel power distribution unit suited for a wide range of applications and purposes that need reliable power delivered without interruption. Included in a very compact form-factor are superior 2-pole hydraulic-magnetic breakers, individual earth protection per channel, loss of neutral protection, emergency stop, a fixed power-cable and a single-phase convenience socket that can be adapted for different markets depending on your needs.

Built on same proven technologies as the C-series the B12 gives you the same high build quality and the same superior protection for you and your gear to a very competitive price. The B12 integrates with other B-series products such as the bigger B24 and the B-quad 3-phase distribution unit to form a compact, reliable, and truly flexible system to meet the needs of the event and show production markets that doesn’t have the need for individual current measurement and remote monitoring.

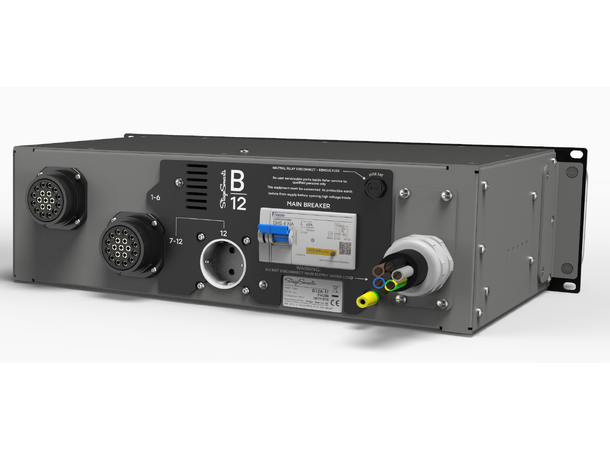

• Power input: Fixed 5G16 Titanex cable, PCE 63A CEE connector 5-wire (TN-S) 230/400V
• Main breaker: Disconnector, 4-pole 63A
• Over-voltage protection: Immediate disconnection in case of lost neutral connection
• Main input indicator: Individual LED indicators for L1, L2, L3
• No of main channels: 12
• Channel capacity and protection: 16A / channel, RCBO A-type, 30mA
• Main output connections: Socapex
• Dimensions & weight: 483 (19?) x 133 (3U) x 340mm, 15kg
• Certifications, standards: EN 61439-1, EN 62368-1:2014, EN 61000-6-1:2007,EN 55015:2006+A2:2009, BS7671, BS7909
