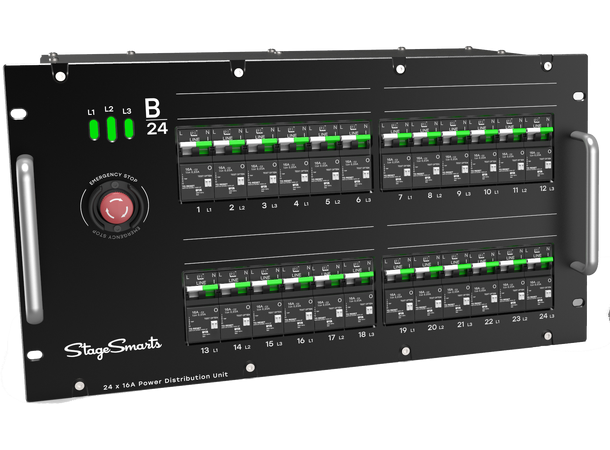

The B24 is a twenty-four-channel power distribution unit suited for a wide range of applications and purposes that need reliable power delivered without interruption. At only six rack units it is a very compact power distro that includes superior 2-pole hydraulic-magnetic breakers, individual earth protection per channel, loss of neutral protection, emergency stop, a fixed power-cable and a single-phase convenience socket that can be adapted for different markets depending on your market and needs.
Built on same proven technologies as the C-series the B24 gives you the same high build quality and the same superior protection for you and your gear to a very competitive price.The B24 integrates with other B-series products such as the smaller B12 and the B-quad 3-phase distribution unit to form a compact, reliable, and truly flexible system to meet the needs of the event and show production markets that doesn’t have the need for individual current measurement and remote monitoring.
- Power input: Fixed 5G16 Titanex cable, PCE 63A CEE connector 5-wire (TN-S) 230/400V
- Main breaker: Disconnector, 4-pole 63A
- Over-voltage protection: Immediate disconnection in case of lost neutral connection
- Main input indicator: Individual LED indicators for L1, L2, L3
- No of main channels: 24
- Channel capacity and protection: 16A / channel, RCBO A-type, 30mA
- Main output connections: Harting 16
- Dimensions & weight: 483 (19?) x 266 (6U) x 340mm, 17kg
- Certifications, standards: EN 61439-1, EN 62368-1:2014, EN 61000-6-1:2007,EN 55015:2006+A2:2009, BS7671, BS7909
