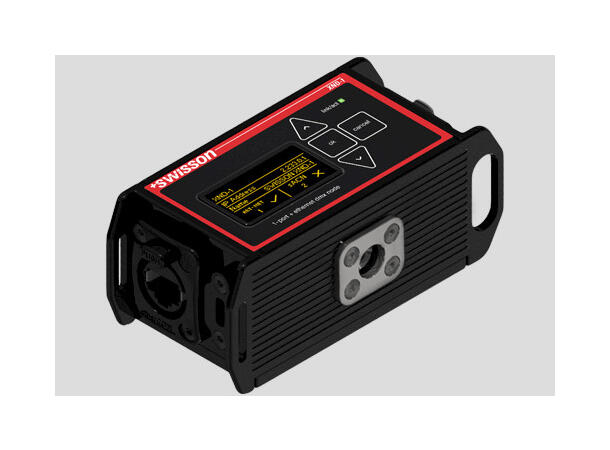

XND-1 is a user-friendly Art-Net and sACN to DMX converter supporting the distribution of two universes of DMX via 1 DMX ports, each configurable as input or output.

Since most major lighting consoles are capable of transmitting Art-Net data, XND-1 is all you need to take advantage of your console’s networking capability, allowing you to transmit a vast number of universes over one single network cable.

Furthermore, the XND-1 is also perfectly suited to send DMX data to your fixtures from a computer or even from a mobile device. Many light controller programs for PC or Mac support Art-Net output natively and with the help of XND-1’s DHCP capability, you can even let your workplace network infrastructure do the network configuration of your XND-1 automatically for you.

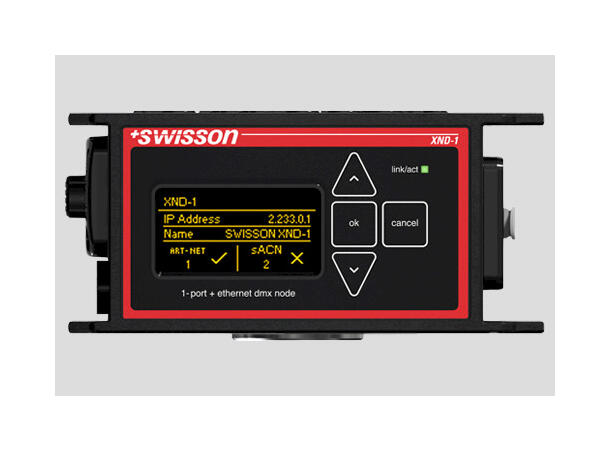

With its 128x64 pixels OLED display and the intuitive web interface, configuring the network and setting up your Art-Net or sACN preferences is no trouble at all and helpful status information is always at hand.

If two controllers send data to the same universe, XND-1 automatically merges the DMX data, which makes the integration of a second lighting controller straightforward and may prove helpful for fixture testing during the setup of an installation.

The XND-1 can be powered either via PoE (Power over Ethernet) or alternatively via USB-C.

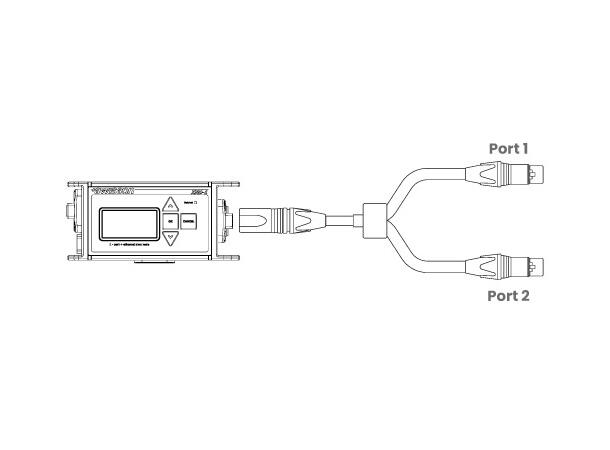

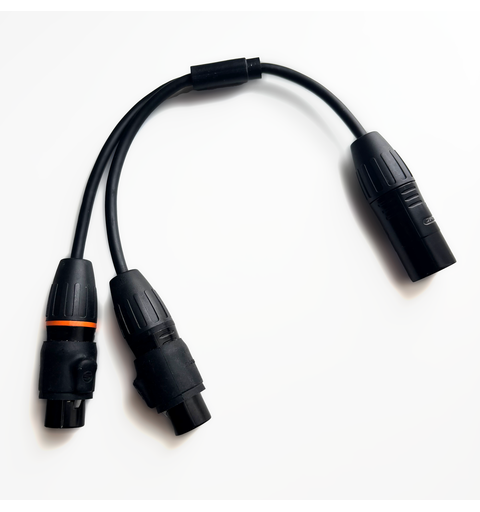

• Art-Net and sACN to DMX converter for 2 independent universes on 1 physical port
• Supports Art-Net
• Supports sACN
• Graphic display
• Web interface for status observation, adjusting settings and firmware updates
• POE powered
• USB-C powered
• IP65: WATER RESISTANT
