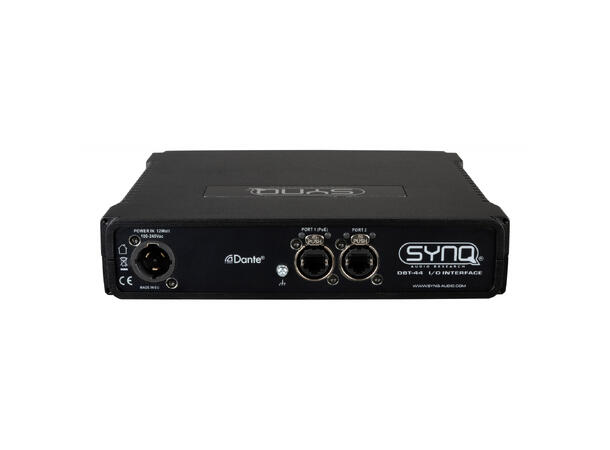

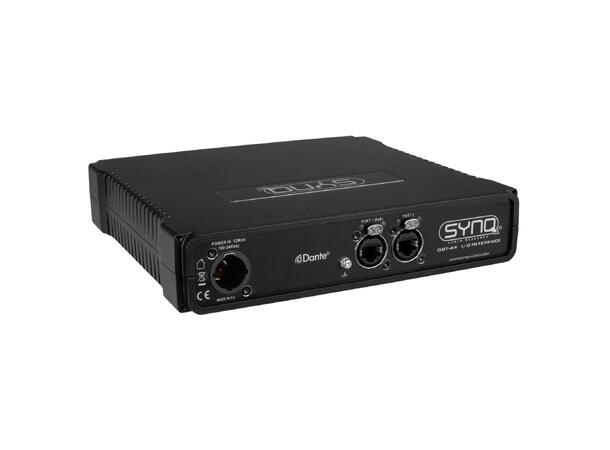

SYNQ DBT-44 Dante Audio bridge

Premium quality analog / DANTE® network audio bridge for touring applications with 4 analog inputs + outputs

• Premium quality analog / Dante network audio bridge for touring.
• Converts DANTE® Network audio to 4 hi-grade balanced analog outputs.
• Converts 4 hi-grade balanced analog inputs to DANTE® Network audio.
• All 4 (LINE/MIC) inputs equipped with -24dB PAD & 48V Phantom power.
• GIGABIT Ethernet I/O based on Hi-speed Marvell switch (no linking delays).
• Built-in DSP AUDIO PROCESSING (parametric EQs, compressors, delays, ...) on all channels: perfect for use as DANTE enabled speaker management processor, but also deployable in many other applications.
• 8x8 AUDIO MATRIX for local premix, flexible routing, …

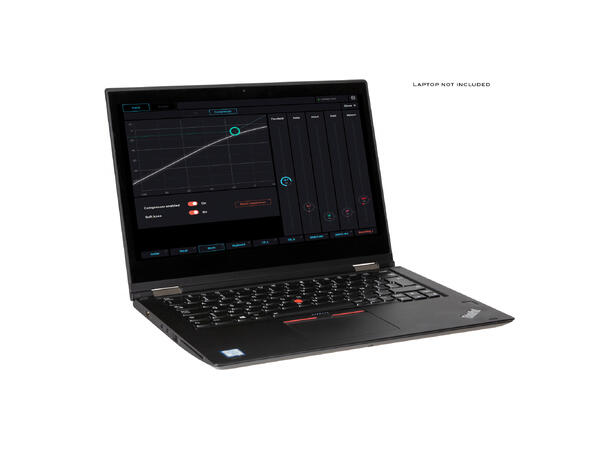

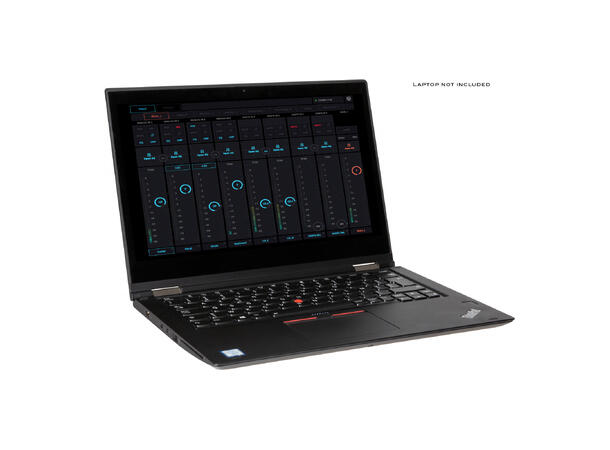

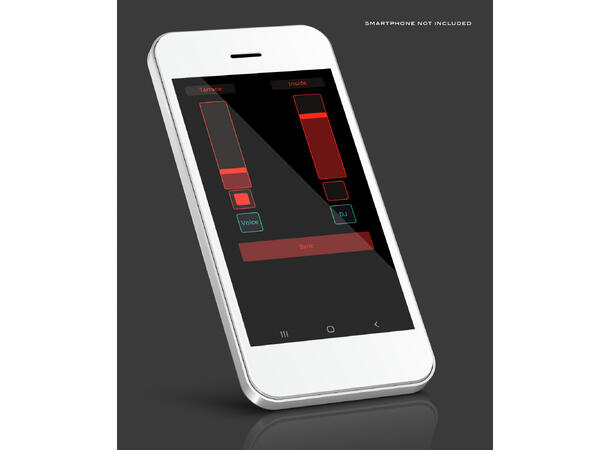

• Integrated WEB SERVER: fully graphical and very user-friendly user interface for easy configuration and DSP control on any network device!
• Extremely high audio quality: S/N > 120dB ~   THD: < 0.003%

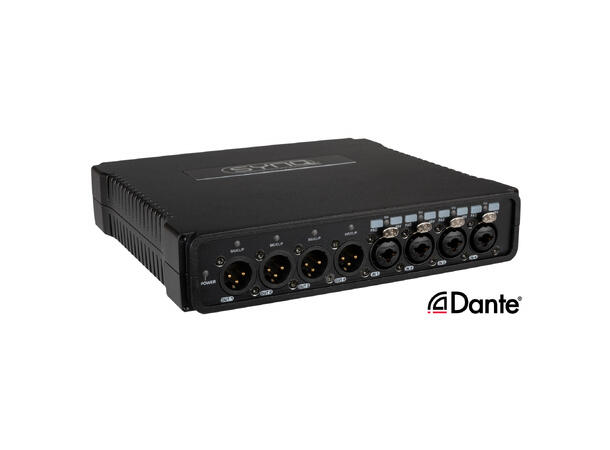

• Fully equipped with original Neutrik® XLR and EtherCON connectors.
• Complies with IEEE 802.3-2005 standard for Information Technology.
• Extreme reliability, thanks to the exclusive use of industrial-grade components, such as: high-end Burr Brown audio DACs, AKM ADCs, Wurth electrolytic capacitors, ...
• POWER options:
  - PowerCON TRUE1: 100-240Vac 50/60Hz
  - PoE: Power over Ethernet (PoE class 0)
• HOUSING: ½ 19” diecast housing with different installation options:
  - 1 unit fits in a 1U 19" rack (19" adapter optional)
  - 2 units fit together in a 1U 19" rack (adapters included)
  - Easy wall mounting with optional wall mount adapter
  Easy truss mounting with optional truss mount adapter
  Strong rubber protection adapters for use as stage box! (optional)
