SYSBOARD 18-A Veggkabinett

if you have the SYSBOARD installation housing for wall mount. This enables the installation of classic offsets with SYSBOXX components. Owing to the 100 mm offset mounting position even a multipin connector may remain plugged in despite the door being closed.

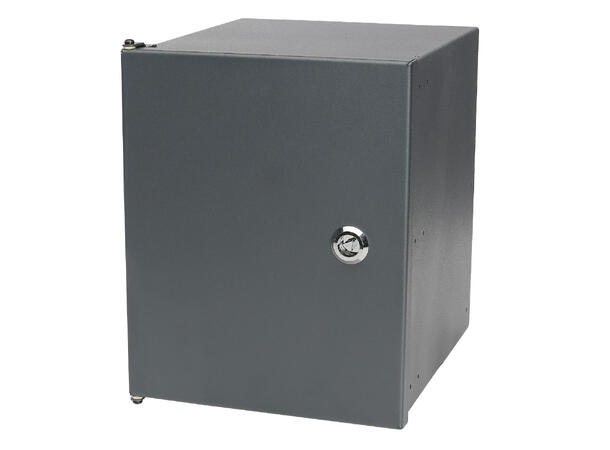

The bottom of the housing also has a 154 x 30 mm opening for the supplied cable brush bushing to lead out cables also with the box closed. The door has a convertible stop variable closing position and can be locked with a square-section key (also available with a lamella locking cylinder plate barrel with up to 200 different closures positions). The housing sits either “on-wall” or can also be recessed in 2 positions into the wall using the supplied mounting brackets.

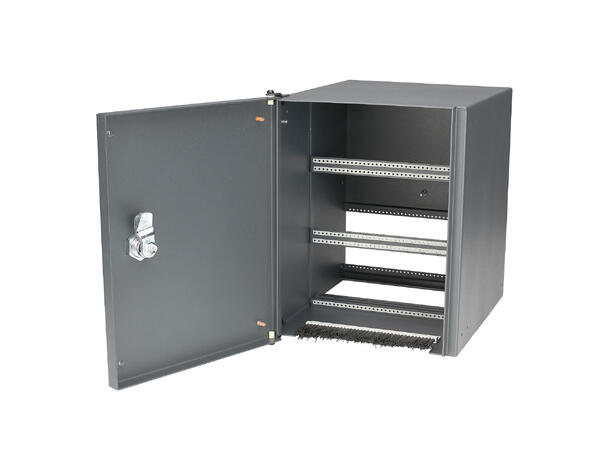

Inside the SYSBOARD a large number of SYSBOXX front panels with up to 48 XLR-type-D can be fitted on a width of 9.5“ (6 WU) and 3 x 2 HU. Openings for the cable insertion are located on the back as well as on the rear bottom and can also be fitted with SYSBOXX front panels on a width of 6 WU (9.5“) each. The front panels are secured by M2.5 self-tapping countersunk screws. Please order separately.
IP44 protection class is achieved when closed.

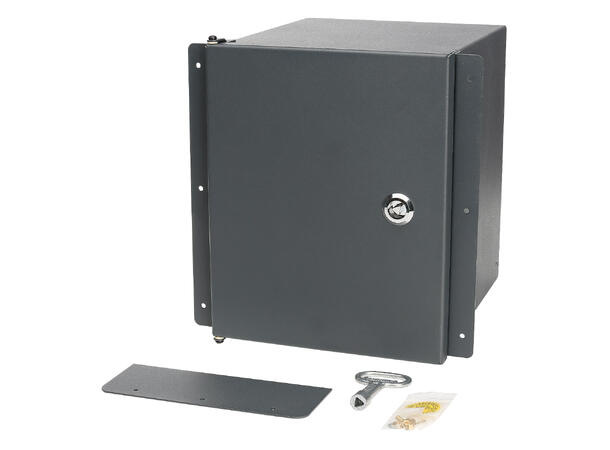

Supplied accessories:
SYSBOARD18 housing
Cable brush bushing
Cover panel (if no brush is required),
2x fixing brackets
8 x S-G4,0X10C-TS Screw for fixing brackets
3 x S-M3,0X10C-TS Screw for brush/cover panel
incl. S-T3,0X00I-AB Screw nut
1x SYSBOXX grounding set
1x square socket key
